Home >> Mercury >> 1997 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> A: Radio/Tape Player Inop - Not Operate Properly

A: Radio/Tape Player Inop - Not Operate Properly

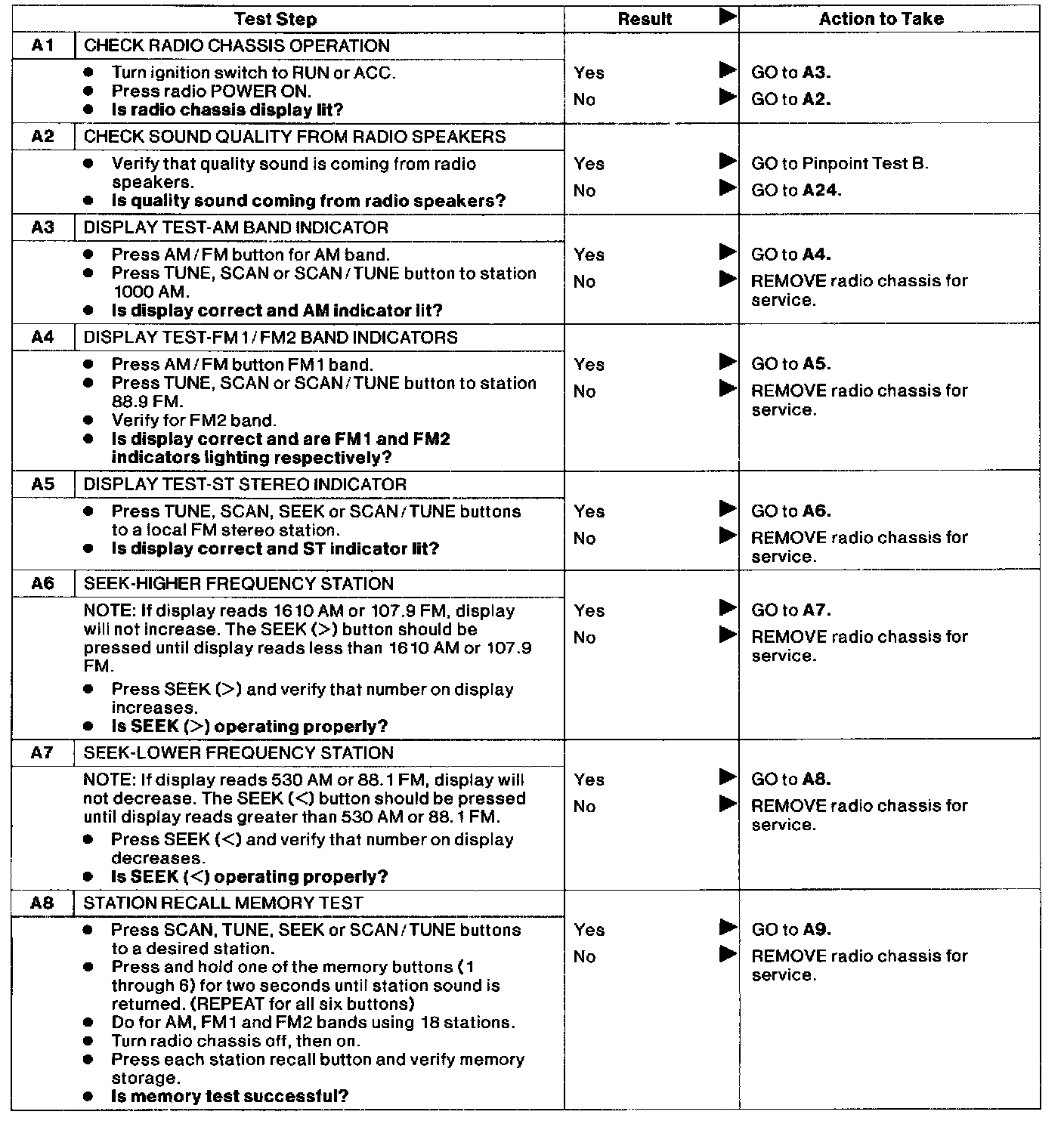

A1 - A8:

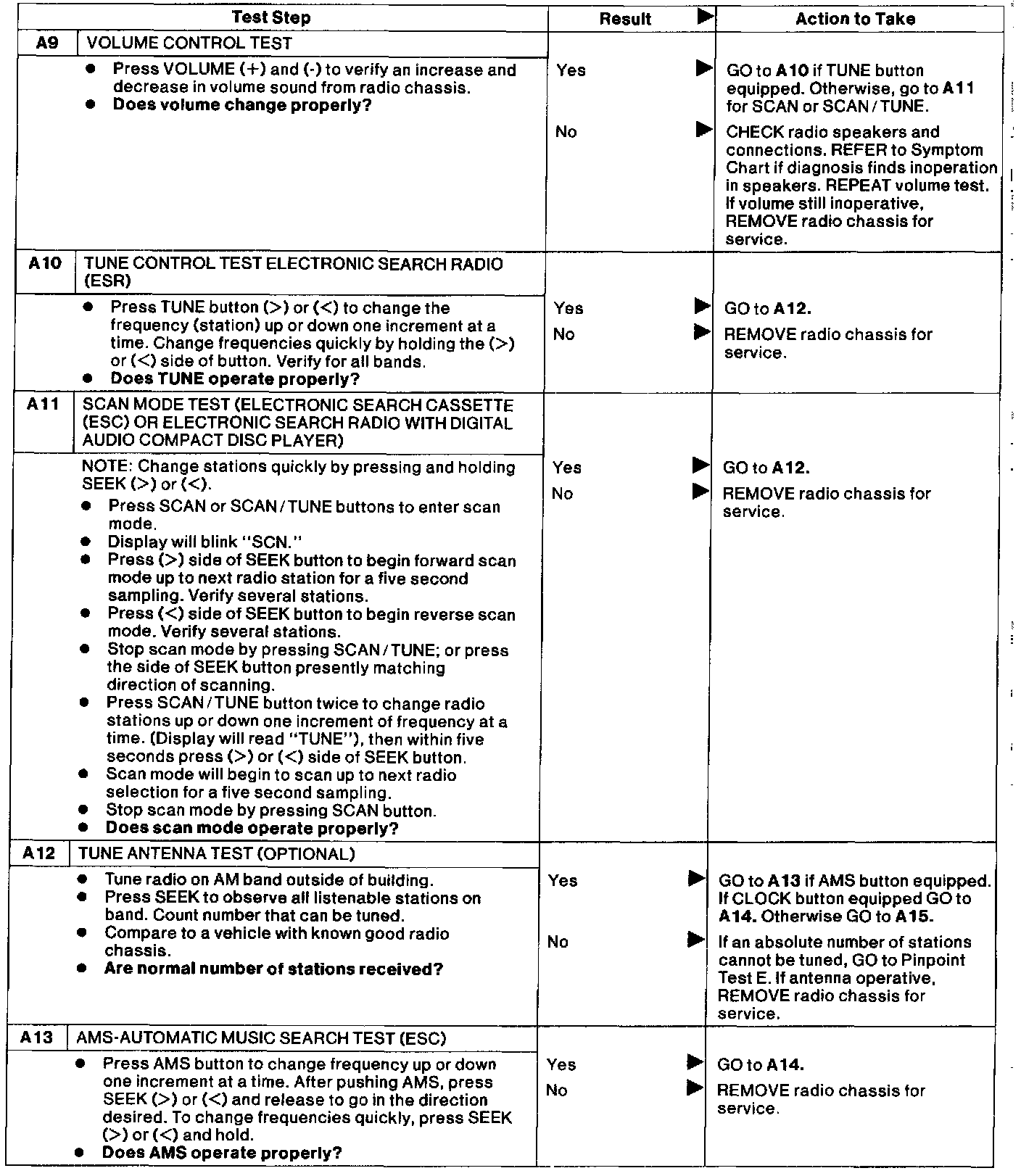

A9 - A13:

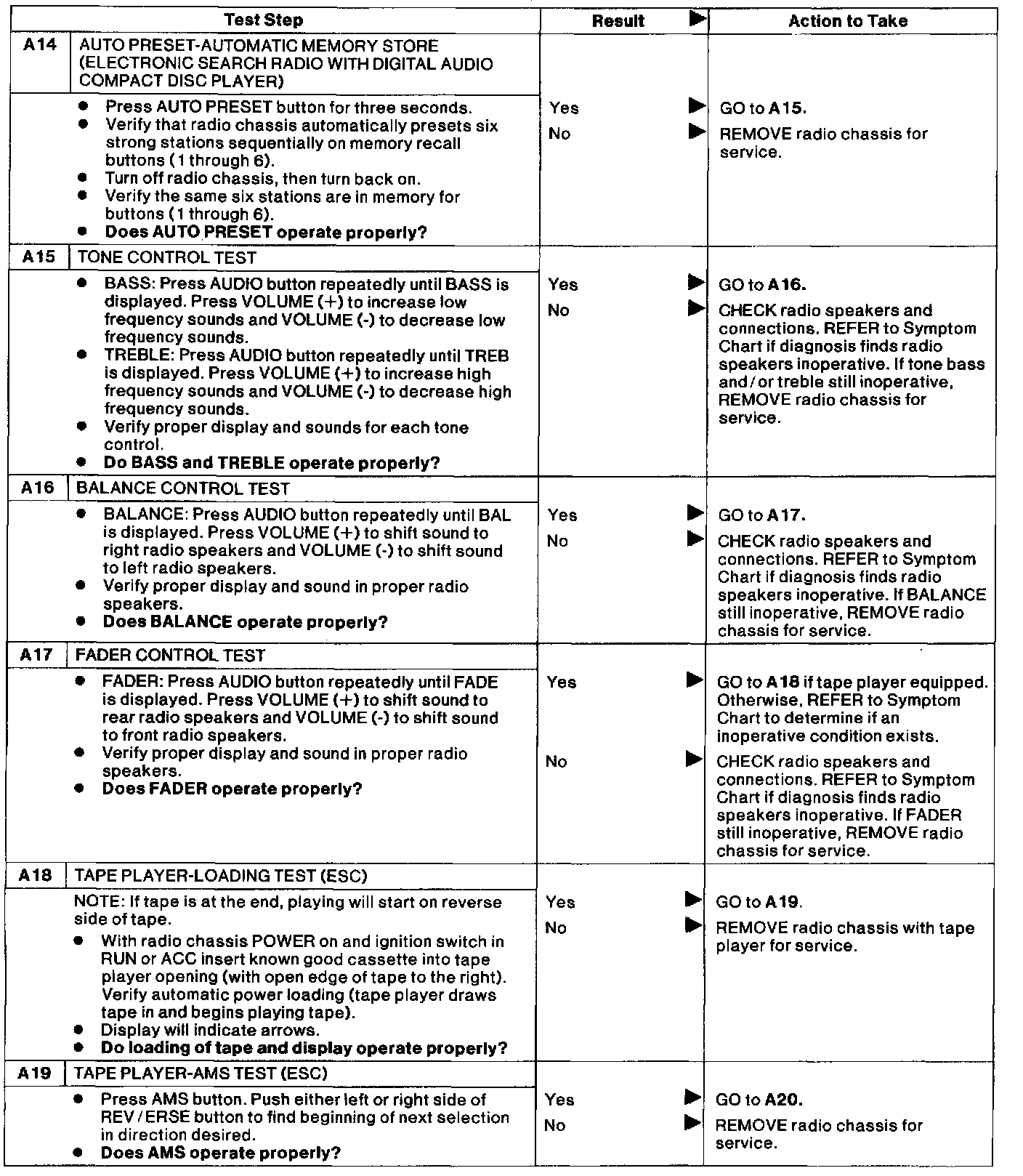

A14 - A19:

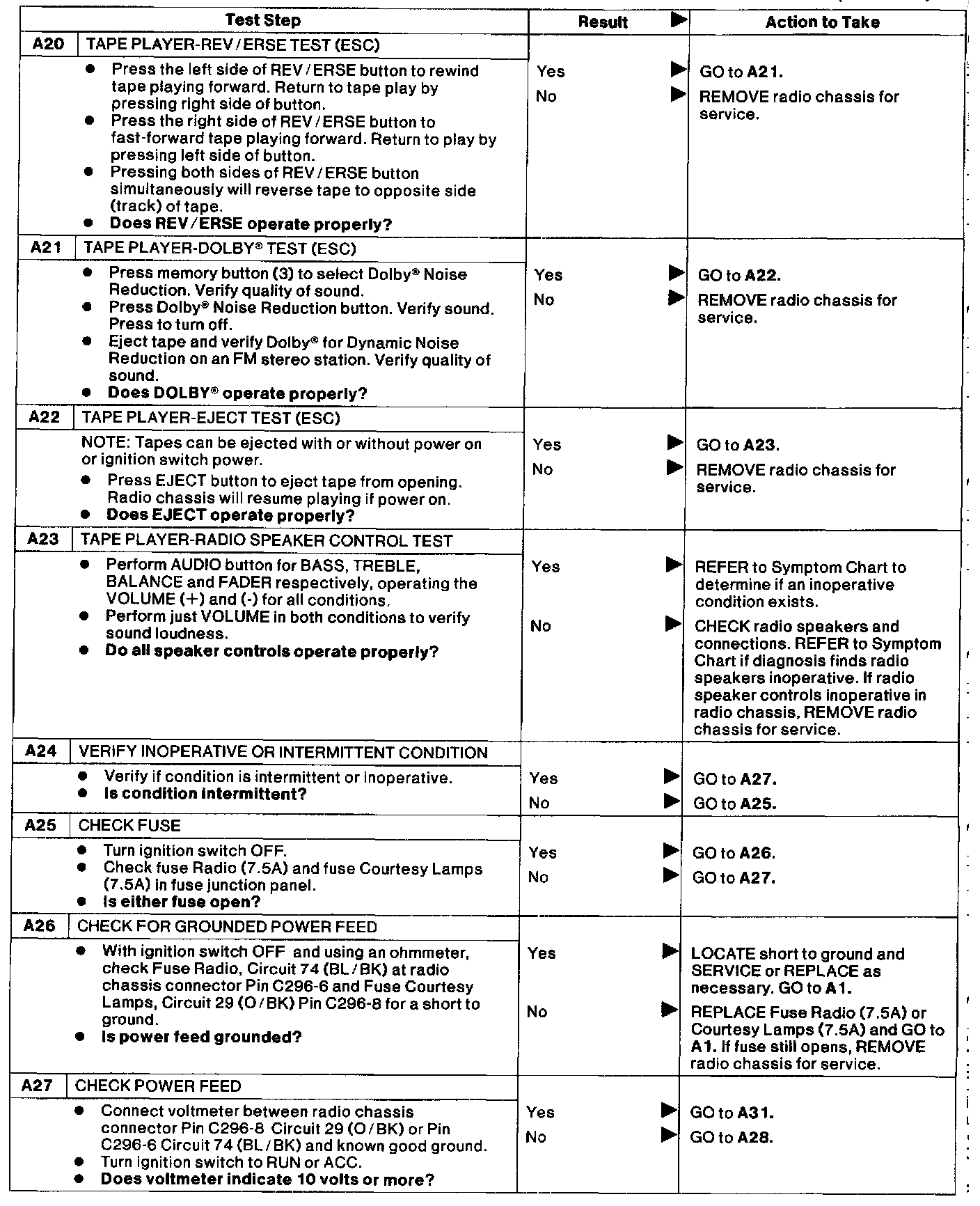

A20 - A27:

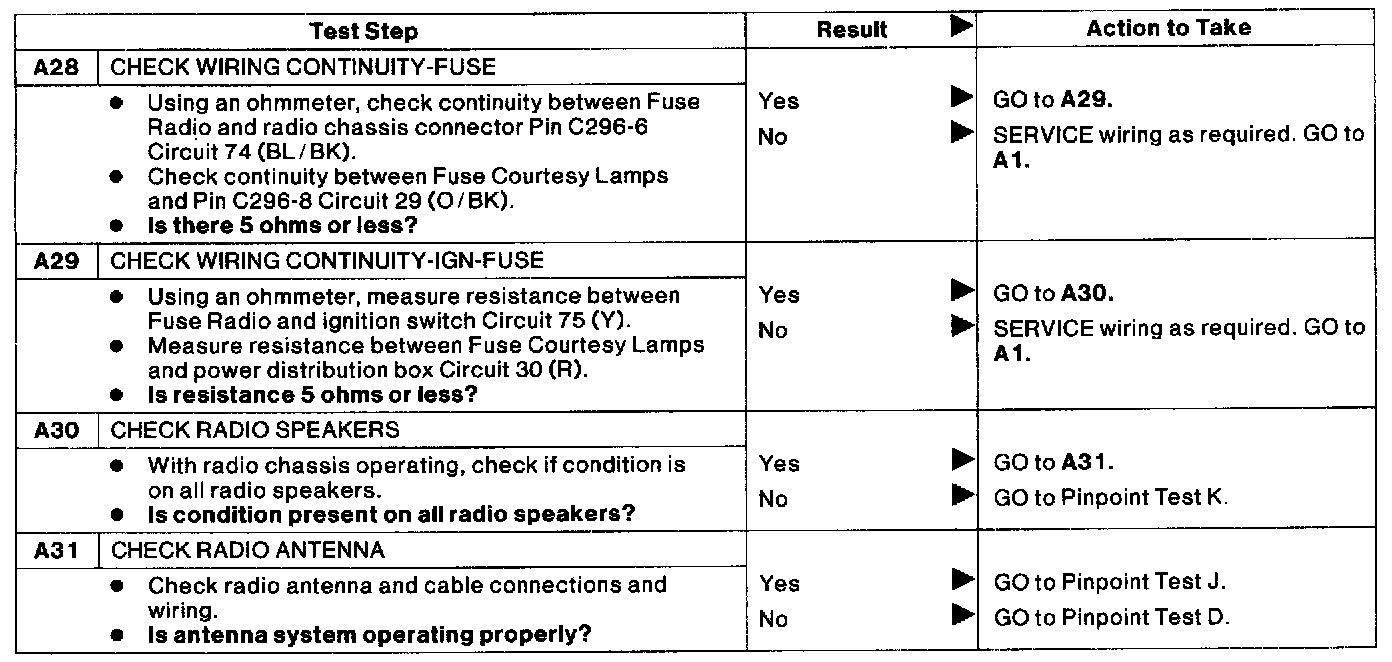

A28 - A31:
