Home
>>
Mercury
>>
1997
>>
Mystique L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Radio/Stereo
>>
Diagrams
>>
Electrical Diagrams
>>
FM/AMP/Compact Disc
FM/AMP/Compact Disc

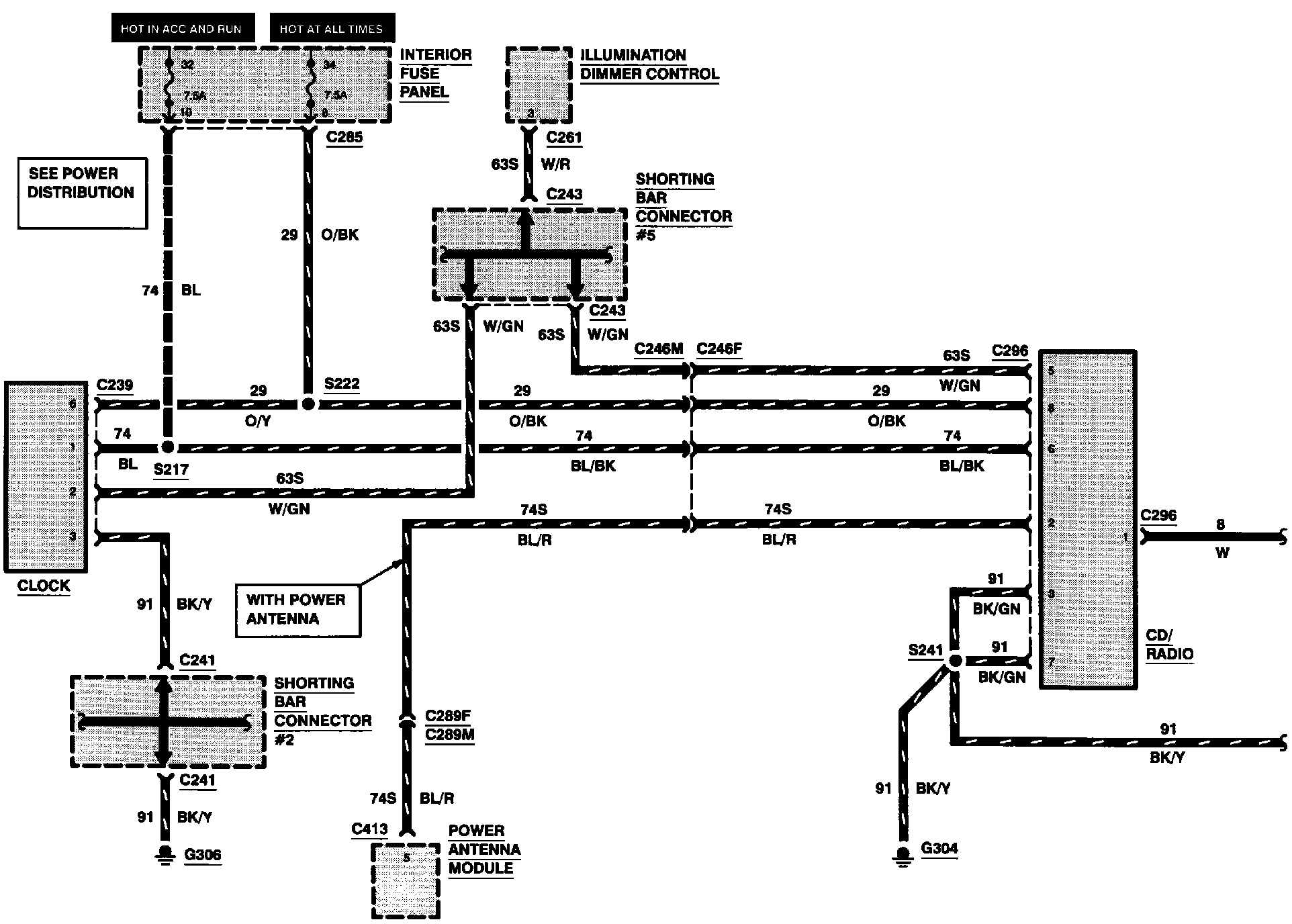

Radio (FM/AMP/CD) (Part 1 Of 2):
Radio (FM/AMP/CD) (Part 2 Of 2):
