Fixed Mast Antenna

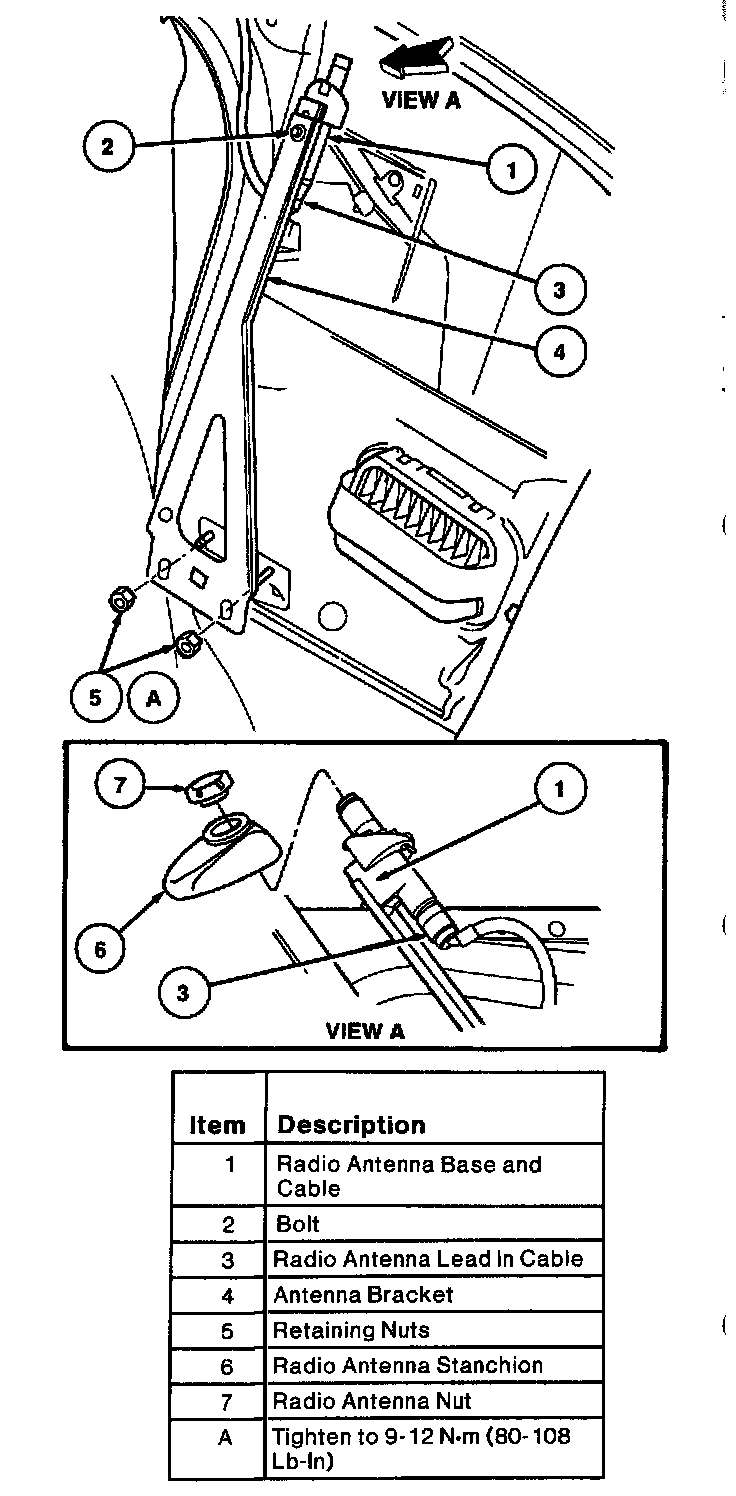

REMOVAL
1. Remove push pins retaining RH side luggage compartment trim panel. Remove luggage compartment RH side trim panel.
2. Remove fixed antenna mast.
3. Remove radio antenna nut and radio antenna stanchion.
4. Remove one bolt retaining antenna to bracket.
5. Disconnect radio antenna lead in cable and remove radio antenna base and cable.

INSTALLATION
1. To install, reverse removal procedure. Tighten nut to 4-5 N.m (31-44 Lb-In).
