Automatic Electric Antenna

REMOVAL
1. Remove push pins retaining RH side luggage compartment trim panel. Remove luggage compartment side trim panel.

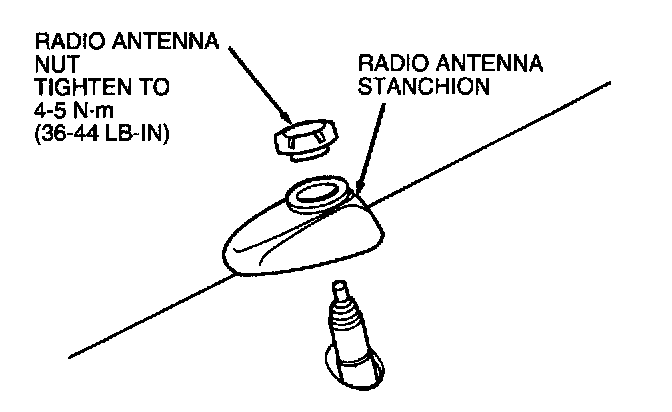

2. Remove radio antenna nut and radio antenna stanchion.

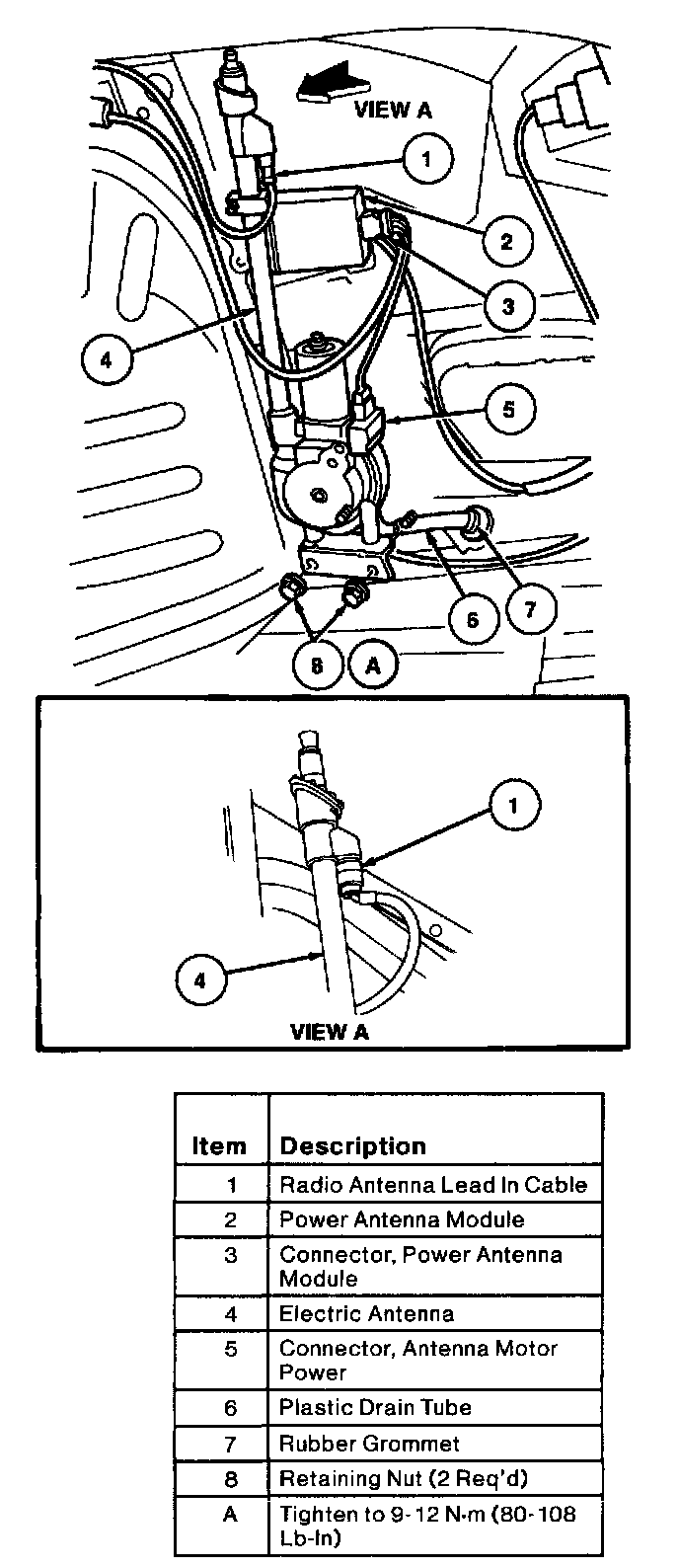

3. Disconnect the radio antenna lead in cable from the antenna.
4. Disconnect the antenna motor power connector.
5. Disconnect power antenna module connector.
6. Disconnect plastic drain tube from rubber grommet.
7. Remove two lower retaining nuts and remove electric antenna.
8. Transfer lower mounting bracket, drain tube and power antenna module to new electric antenna.

INSTALLATION
1. To install, reverse removal procedure. Tighten retaining nuts to 9-12 N.m (80-108 Lb-In).
