Door Glass Top Run

REMOVAL
1. Remove front door trim panel and front door trim shield.
2. Remove front door belt line inside weatherstrip.
3. Remove front door window glass.

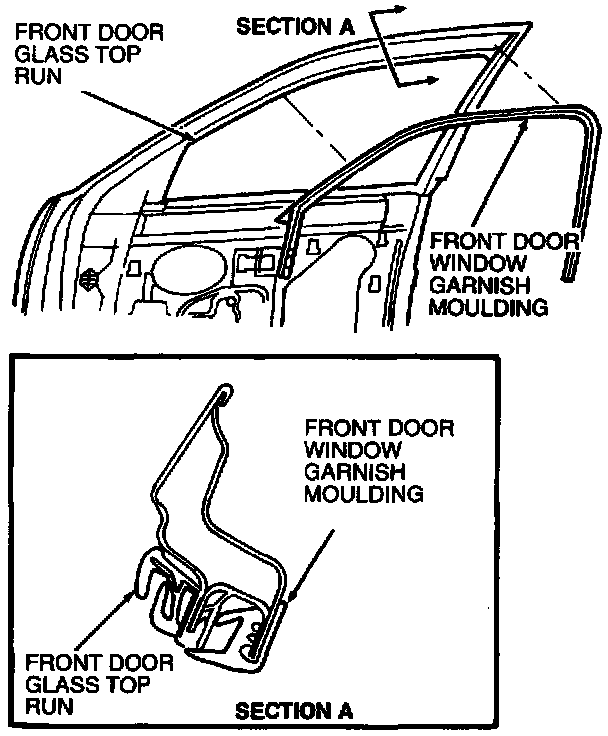

4. Remove front door window garnish moulding.
5. Remove front door glass top run retaining screw.
6. Remove front door glass top run from front door.

INSTALLATION
1. Install front door glass top run into door frame.
2. Push front door glass top run onto door flange starting at upper B-pillar corner.
3. Continue pushing front door glass top run onto door flange down B-pillar and then across top of door frame and down A-pillar.
4. Install front door glass top run retaining screw and washer assembly. Tighten retaining screw to 9-12 Nm (80-106 Lb-In).
5. Install front door glass run front retainer with upper bracket locked into front door.
6. Install front door window garnish moulding.
7. Install front door window glass.
8. Install front door belt line inside weatherstrip.
9. Adjust front door window glass.
10. Install front door trim shield and front door trim panel.
