Front Door

REMOVAL
1. Remove front door trim panel and front door trim shield.
2. Place window glass in full up position and secure with tape.
3. Disconnect battery ground cable.
4. Disconnect window regulator electric drive harness connector.
5. Remove three 1/4-inch rivets retaining window regulator electric drive bracket to inner panel.
6. Working through access hole, remove window regulator electric drive bracket from inner panel and slide window regulator electric drive back to access hole in door to gain access to three window regulator electric drive retaining screws.
7. Remove window regulator electric drive retaining screws using a Torx (R) Drive Bit Set D79P-2100-T or equivalent and separate window regulator electric drive from front door power window regulator.
8. Remove window regulator electric drive from inside front door.

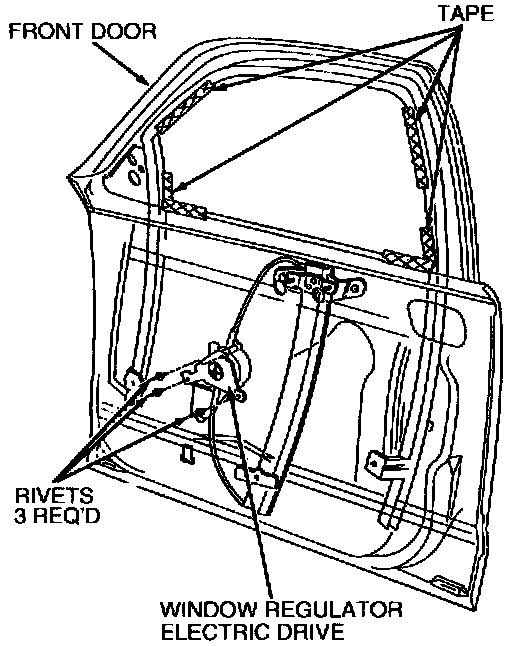

RH Door Shown LH Door Similar:

INSTALLATION
1. Position window regulator electric drive to front door power window regulator. Install three window regulator electric drive screws. Tighten to 6 Nm (53 Lb-In).
2. Position window regulator electric drive on inner panel and install three rivets.
3. Connect window regulator electric drive wiring.
4. Connect battery ground cable.
5. Remove tape from window glass and front door.
6. Check front door window glass operation.
7. Install front door trim shield and front door trim panel.
