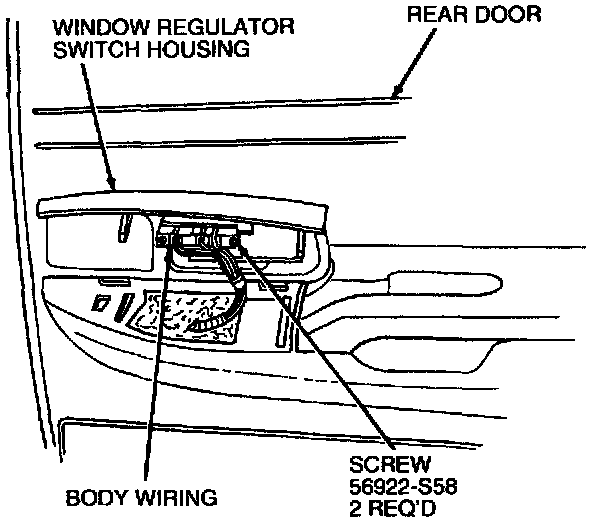

Rear Door Window Regulator Control Switch






REMOVAL
1. Gently pry up the front portion of the window regulator switch housing.
2. Remove the two screws retaining the connector to the window regulator switch housing.
3. Carefully pry the window regulator control switch from the connector with a small screwdriver. Take care not to damage the electrical contact pins.

INSTALLATION
1. Follow removal procedure in reverse order.
