Home >> Mercury >> 1997 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> H DTC 52 Unable to Detect Lowering of Rear

H DTC 52 Unable to Detect Lowering of Rear

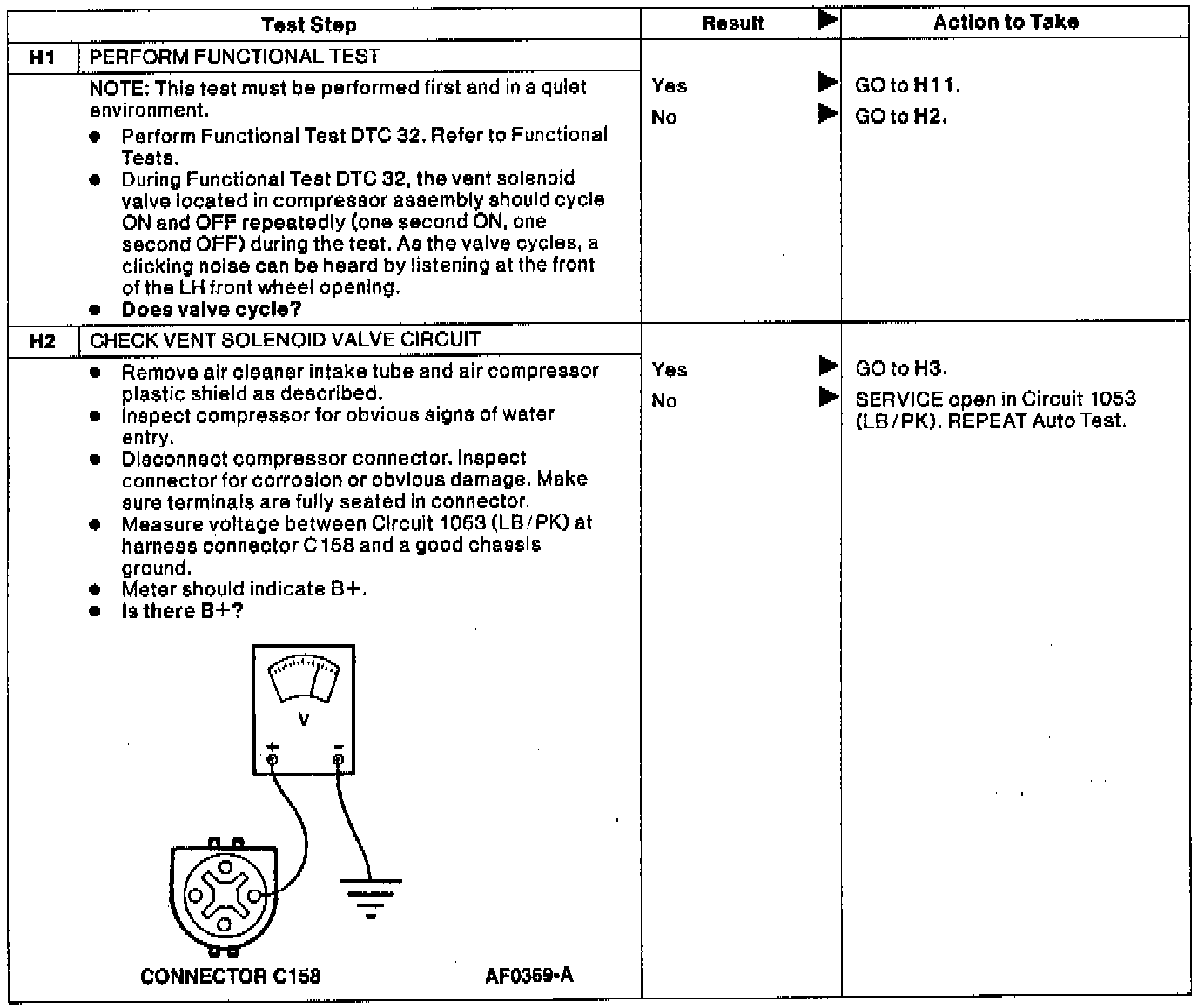

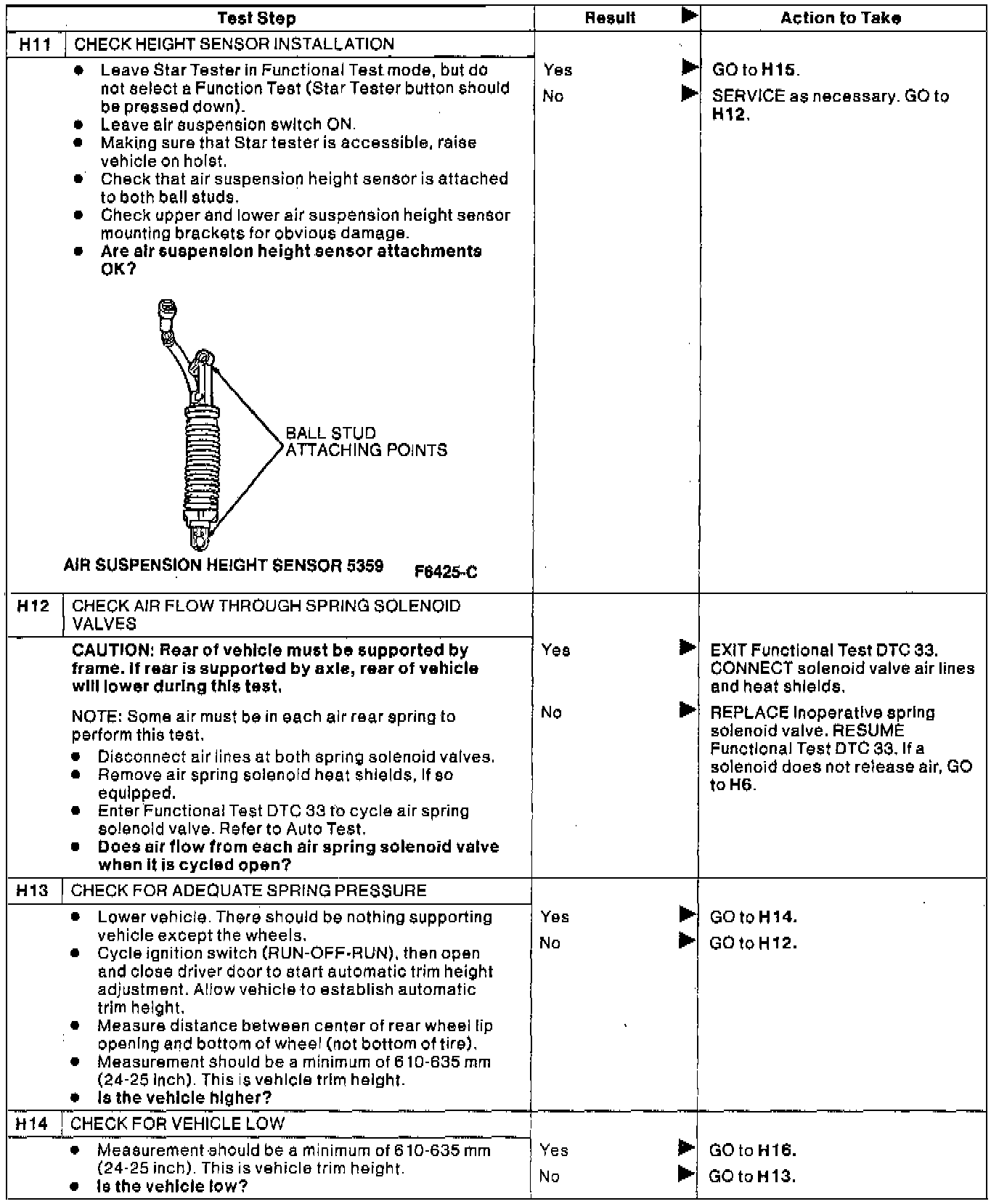

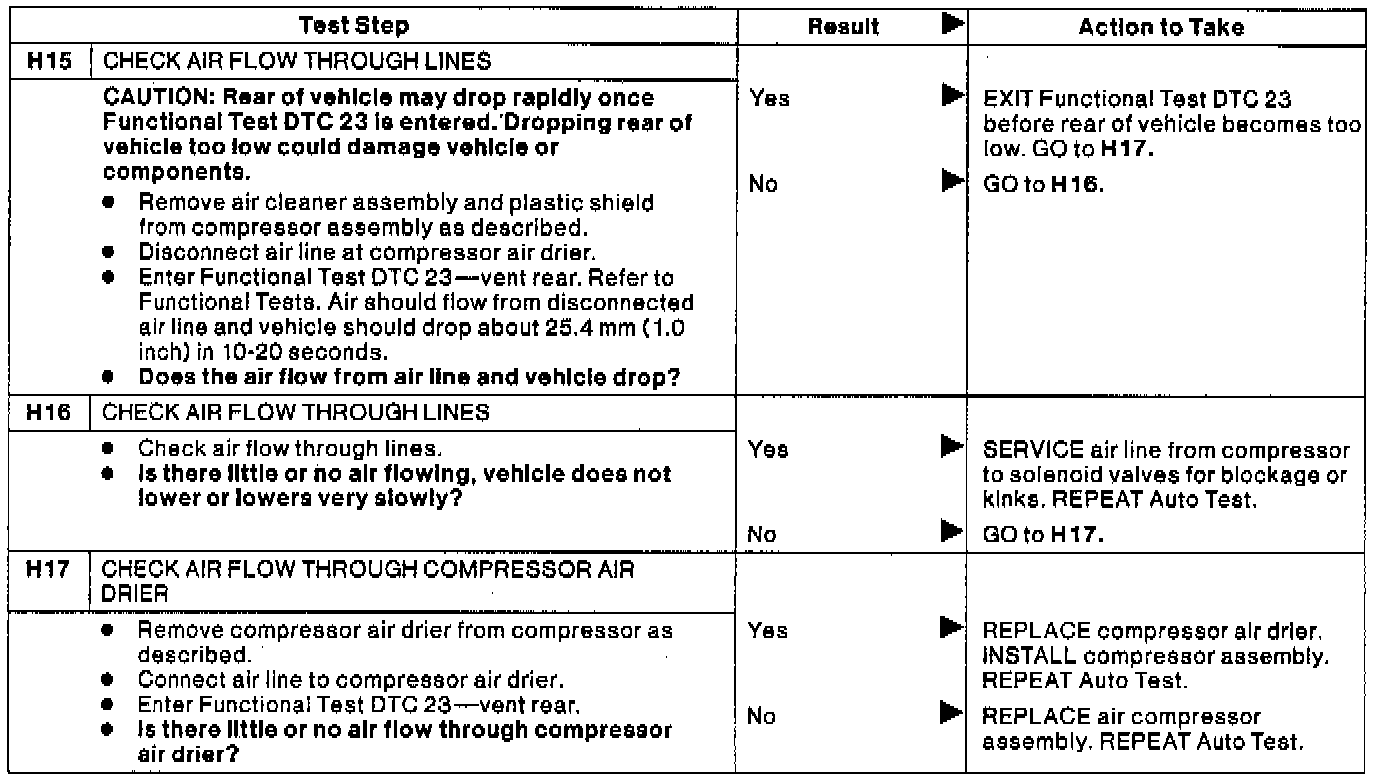

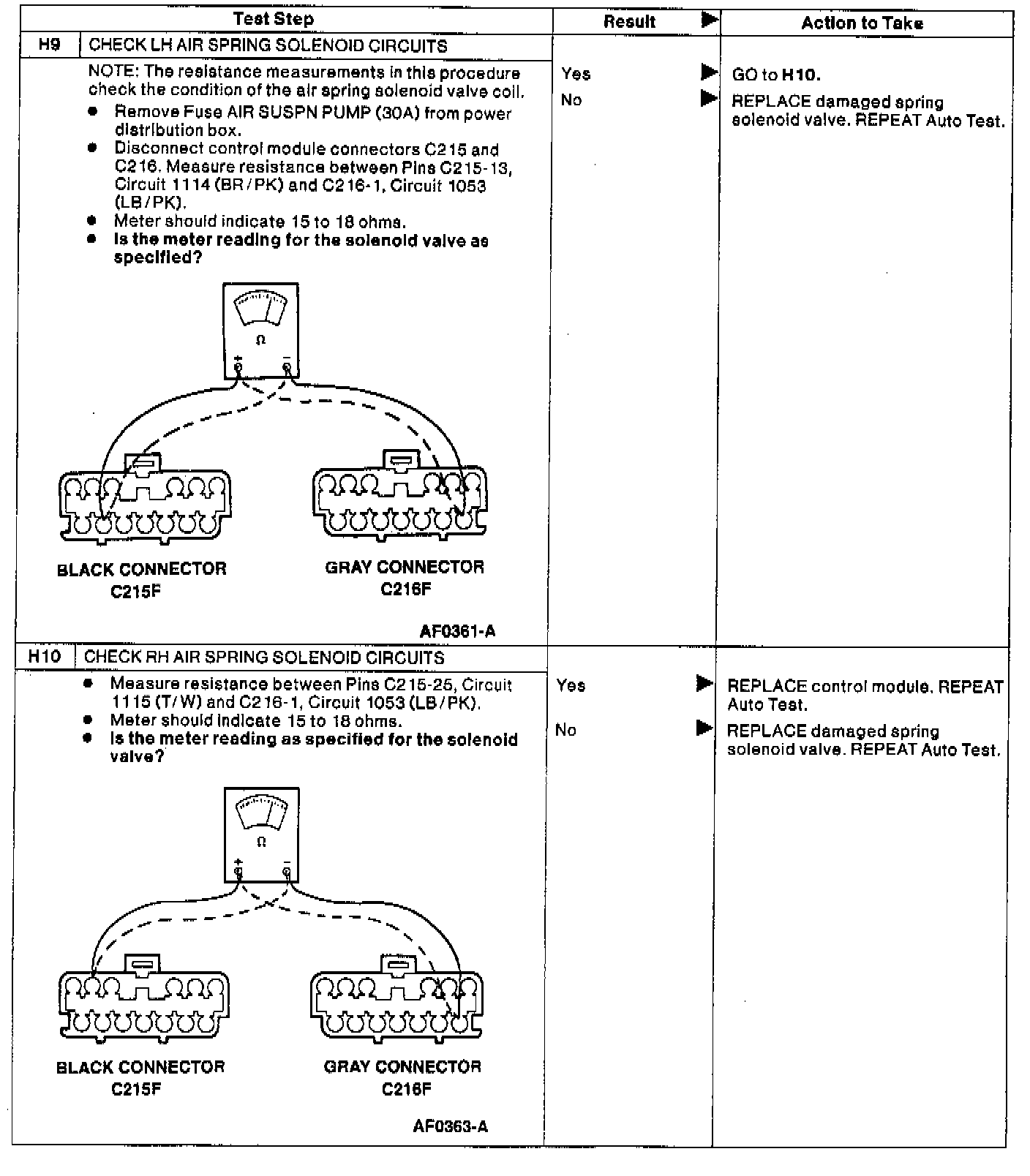

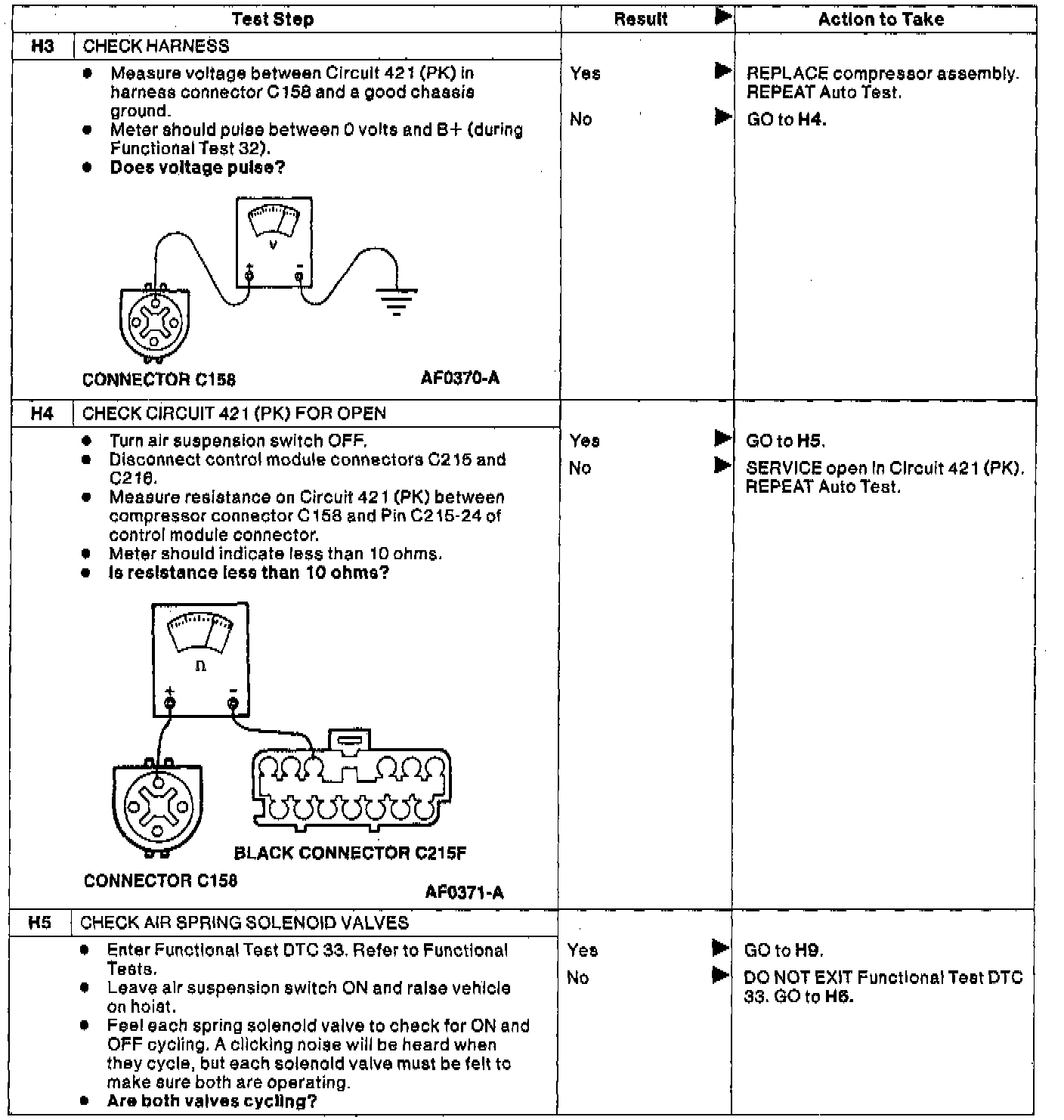

Part 1 Of 7:



Part 2 Of 7:



Part 3 Of 7:



Part 4 Of 7:



Part 5 Of 7:



Part 6 Of 7:



Part 7 Of 7:
