Electronic Level Control Solenoid Valve

WARNING: NEVER ROTATE AN AIR SPRING SOLENOID VALVE TO THE RELEASE SLOT IN THE END CAP FITTING UNTIL ALL PRESSURIZED AIR HAS ESCAPED FROM THE SPRING TO PREVENT DAMAGE OR INJURY.

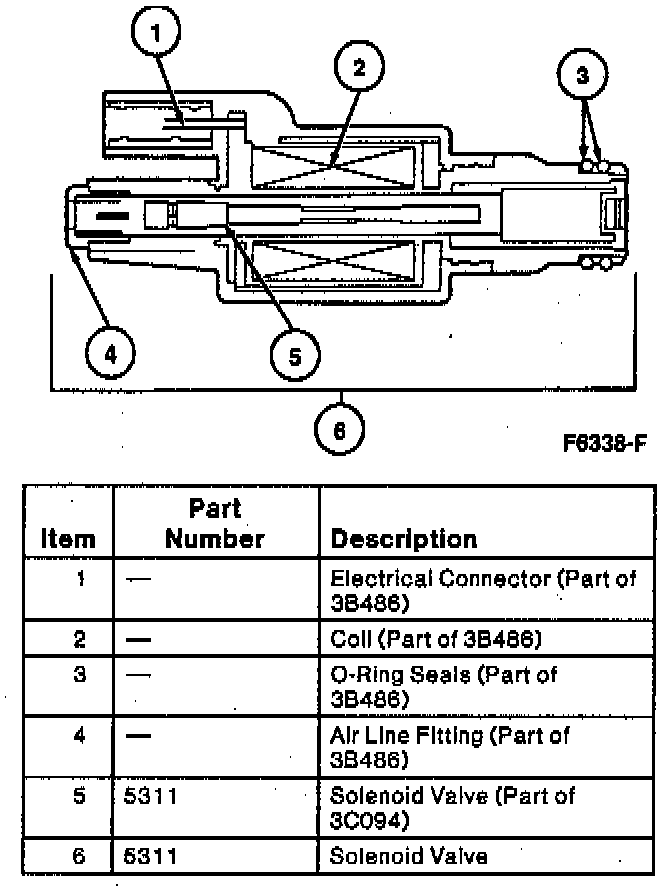

^ The air spring solenoid valve allows air to enter and exit the air spring during leveling corrections.
^ The valve is electrically operated and controlled by the control module.
^ The valve has a two-stage pressure relief system similar to a radiator pressure cap.
^ An air spring solenoid retainer is first removed.
^ Use the active command modes on Rotunda New Generation Star (NGS) Tester 007-00500 or equivalent to vent the air spring before removing solenoid.
