Air Line (Level Control)

NOTE: With the air compressor on, a soap and water solution applied to air lines will locate air leaks.

If a leak is detected in an air line, it can be serviced as follows:

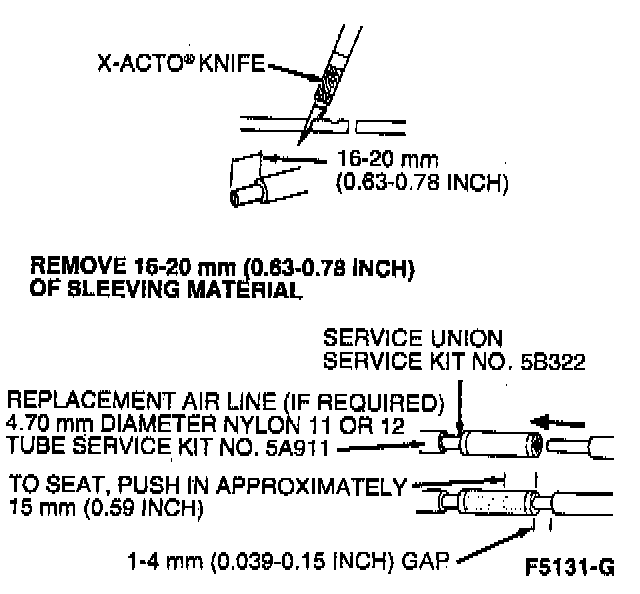

1. First, carefully cut the line with a sharp knife for a good, clean, straight cut.
2. Then, install a service fitting.
3. If more tube is required, it can be obtained in bulk. Refer to the Air Line Routing illustration for proper routing.
