Home >> Mercury >> 1997 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Power Distribution Relay >> Locations >> Police Power Relay

Police Power Relay

Engine View:

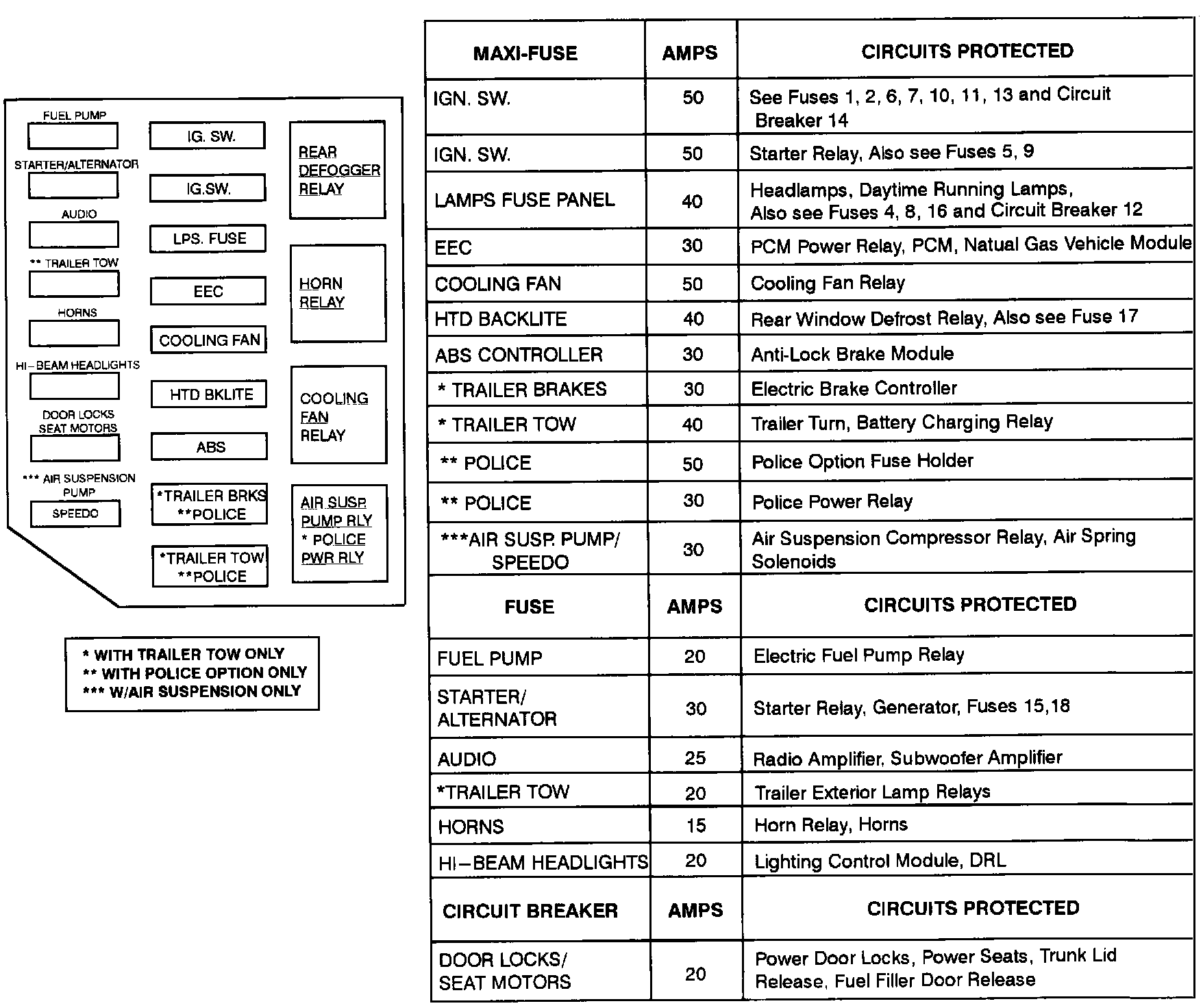

Engine Compartment Fuse Box:





The Police Power Relay is located at the RH front of the engine compartment, in engine compartment fuse box.
