Radio Ignition Interference Capacitor

REMOVAL
1. Disconnect electrical connector.

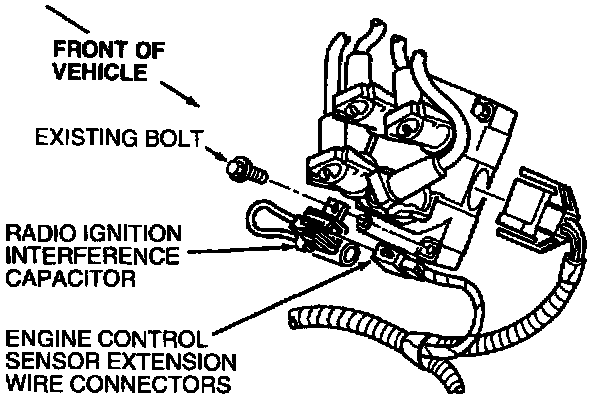

NOTE: There is a radio ignition interference capacitor mounted on each of the two ignition coils The Removal and Installation procedure is the same for both.

2. Remove retaining bolt and remove radio ignition interference capacitor.

INSTALLATION
1. Follow removal procedure in reverse order.
