Ride Height Sensor: Service and Repair

REMOVAL

WARNING: TURN AIR SUSPENSION SWITCH OFF TO PREVENT VEHICLE DAMAGE OR PERSONAL INJURY.

1. Hoist vehicle. Suspension must be at full rebound.
2. Disconnect electrical connector.

NOTE: Before removing air suspension height sensor from ball studs, observe depth of studs in air suspension height sensor.

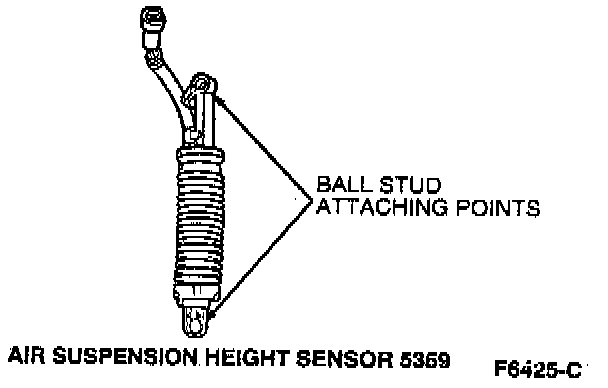

3. Disconnect bottom and then top end of air suspension height sensor from ball studs by depressing spring clip and pulling air suspension height sensor away from ball stud.





INSTALLATION

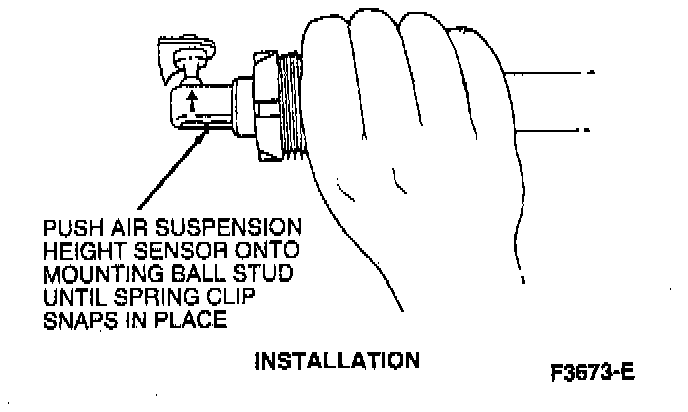

1. Connect top and then bottom end of air suspension height sensor to ball studs. Make sure ball studs are fully seated in air suspension height sensor ball stud retainer housings.
2. Connect air suspension height sensor electrical connector.
3. Lower vehicle.
4. Turn air suspension switch ON.
