Component Tests and General Diagnostics

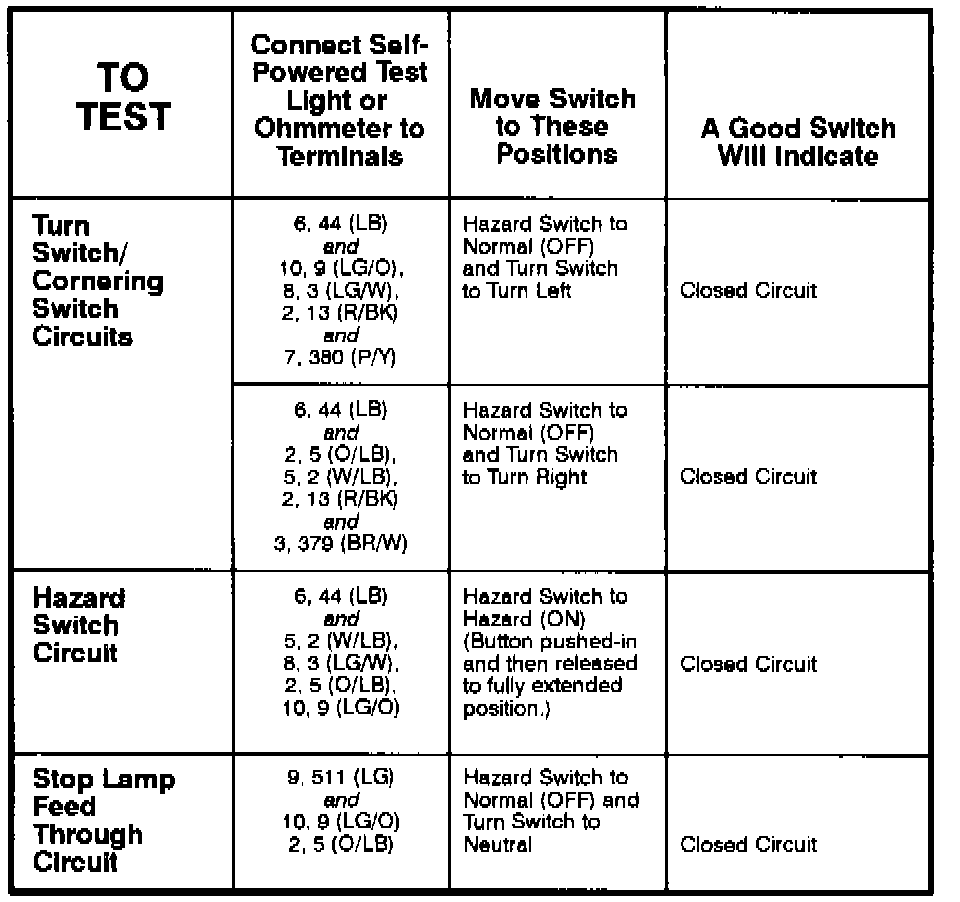

Multi-Function Switch-Component Testing Procedure (Part 1 Of 2):




Multi-Function Switch - Terminal Location:




Multi-Function Switch-schematic-Lamp Portion Of Multi-Function Switch:
