Headlamp Switch: Diagrams

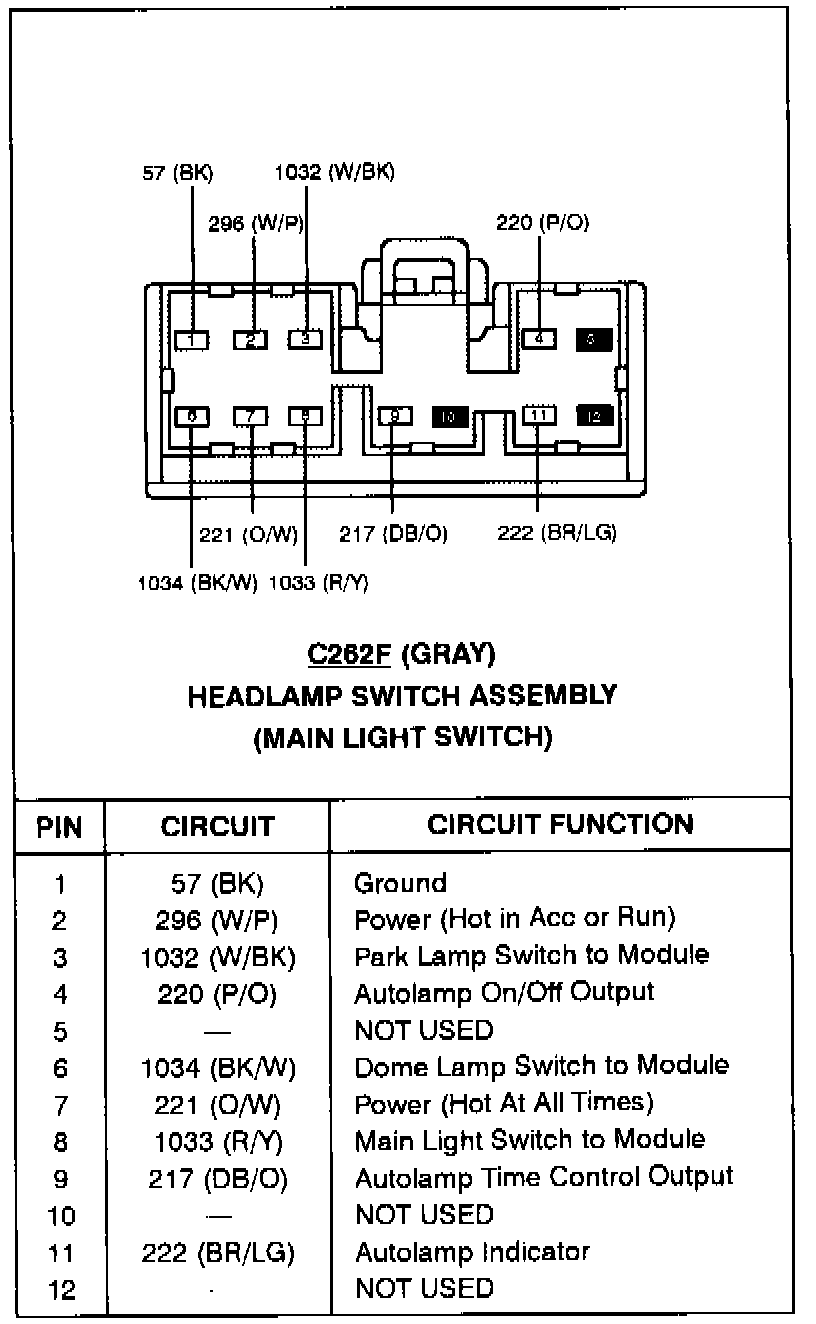

Headlamp Switch Assembly (Main Light Switch) - C262:

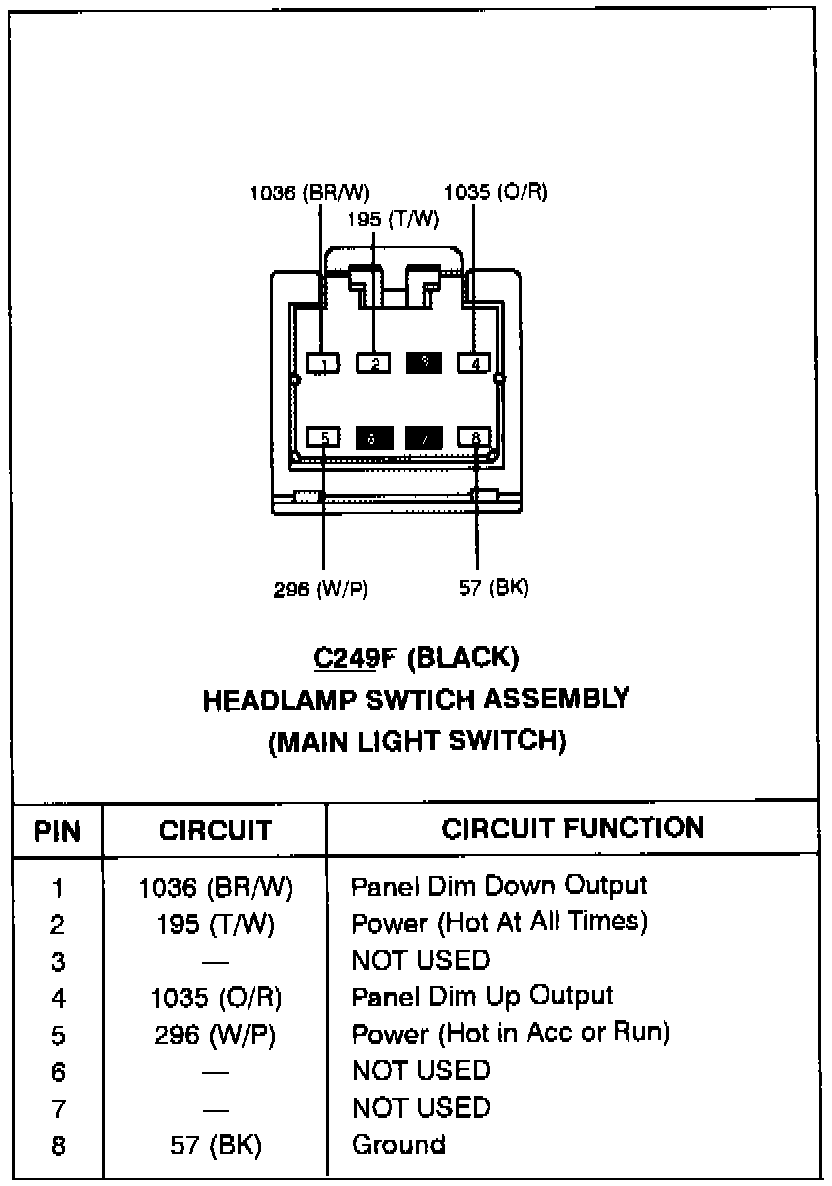

Headlamp Switch Assembly (Main Light Switch) - C249:
