Component Tests and General Diagnostics

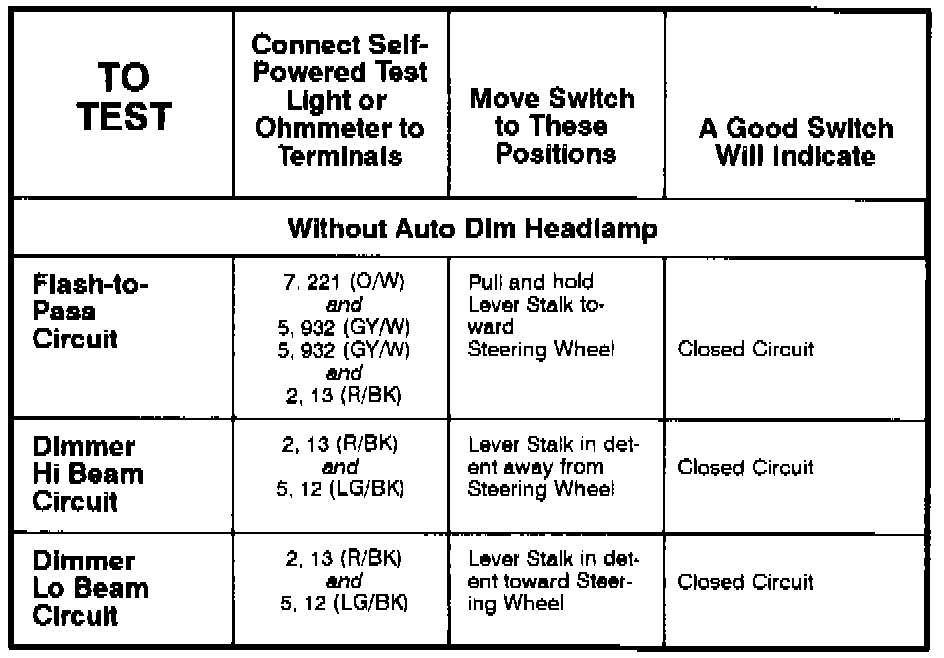

Multi-Function Switch-Component Testing Procedure (Part 2 Of 2):

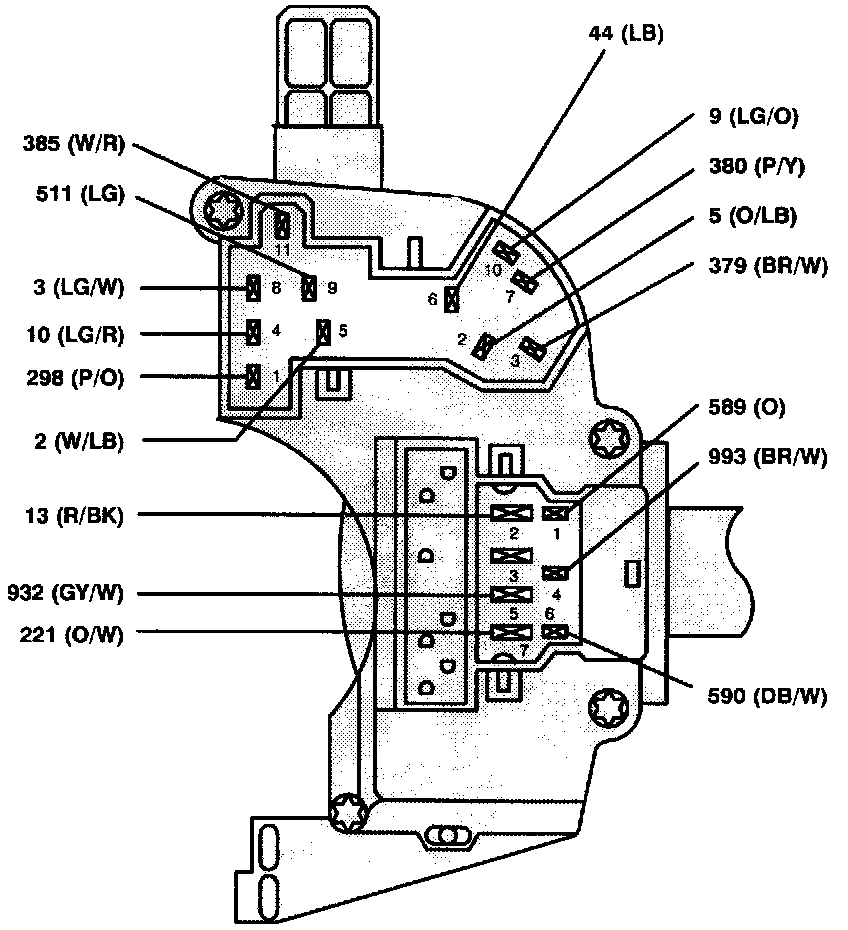

Multi-Function Switch - Terminal Location:

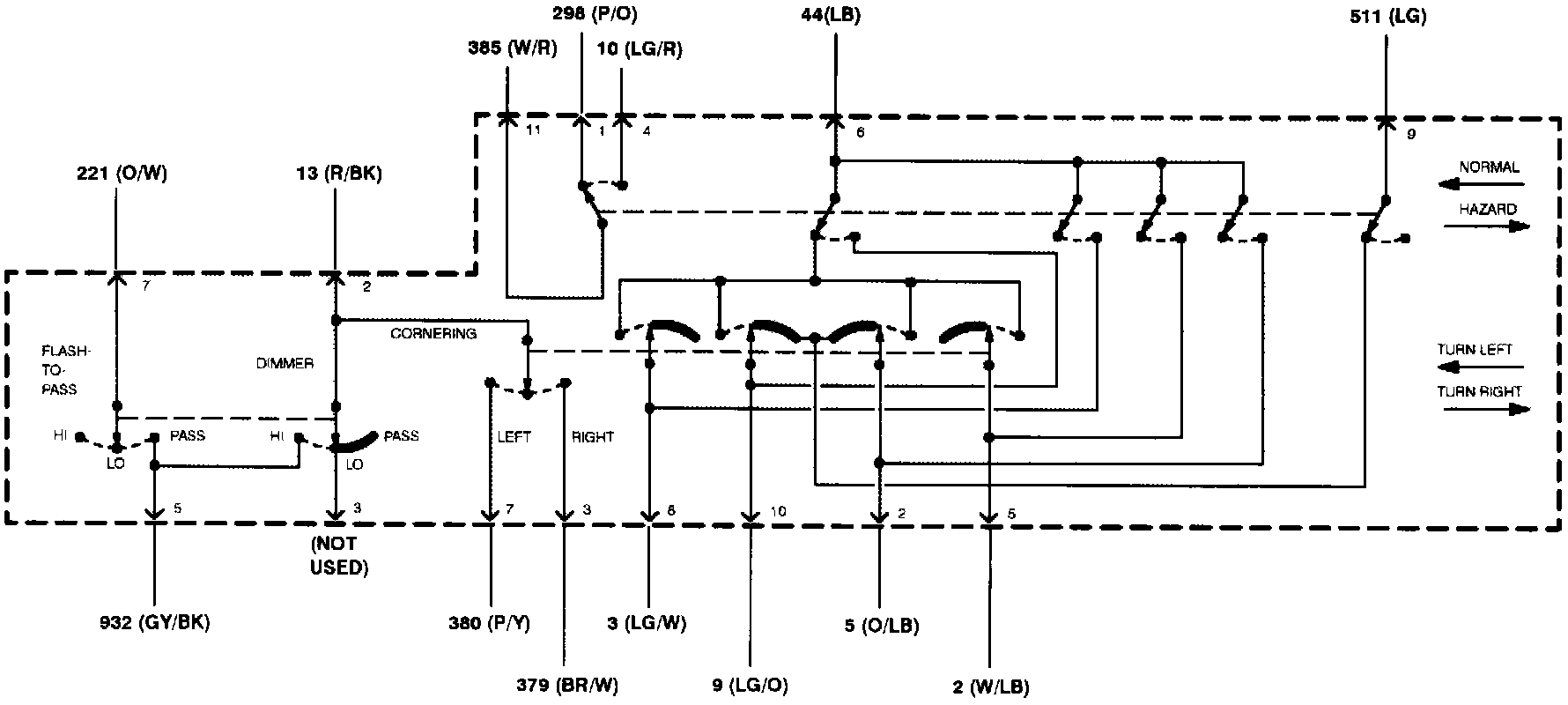

Multi-Function Switch-schematic-Lamp Portion Of Multi-Function Switch:
