A/C Cycling Switch

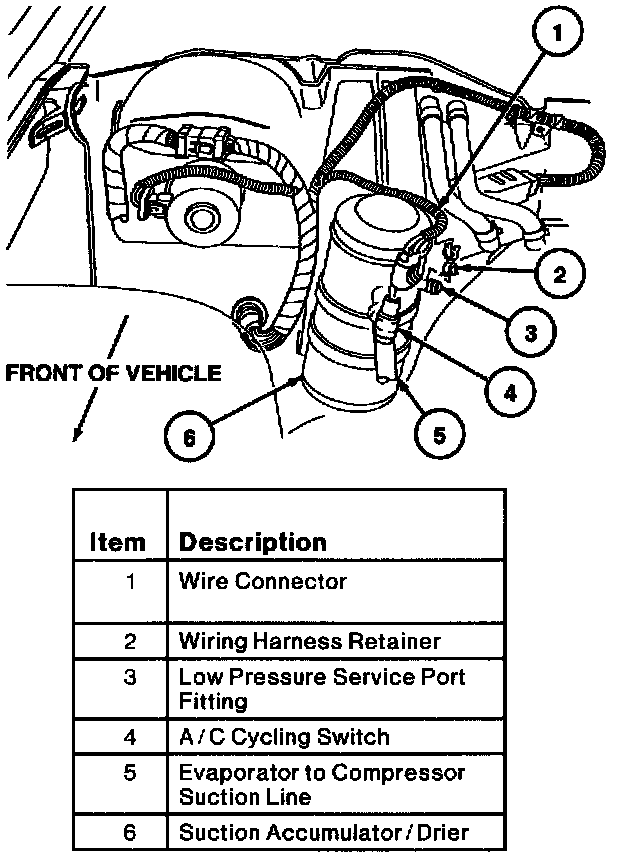

REMOVAL





1. Disconnect the wire connector from the A/C cycling switch.
2. Unscrew the A/C cycling switch from the evaporator to compressor suction line.

INSTALLATION
1. Install a new O-ring seal lubricated with clean Motorcraft VN-12 refrigerant oil or equivalent meeting Ford specification WSH-M1C231-B on the suction line fitting.
2. Screw the A/C cycling switch on the suction line fitting. Tighten the A/C cycling switch finger-tight only.
3. Connect the wire connector to the A/C cycling switch.
4. Check the system for proper operation.
