Cabin Temperature Sensor / Switch: Description and Operation

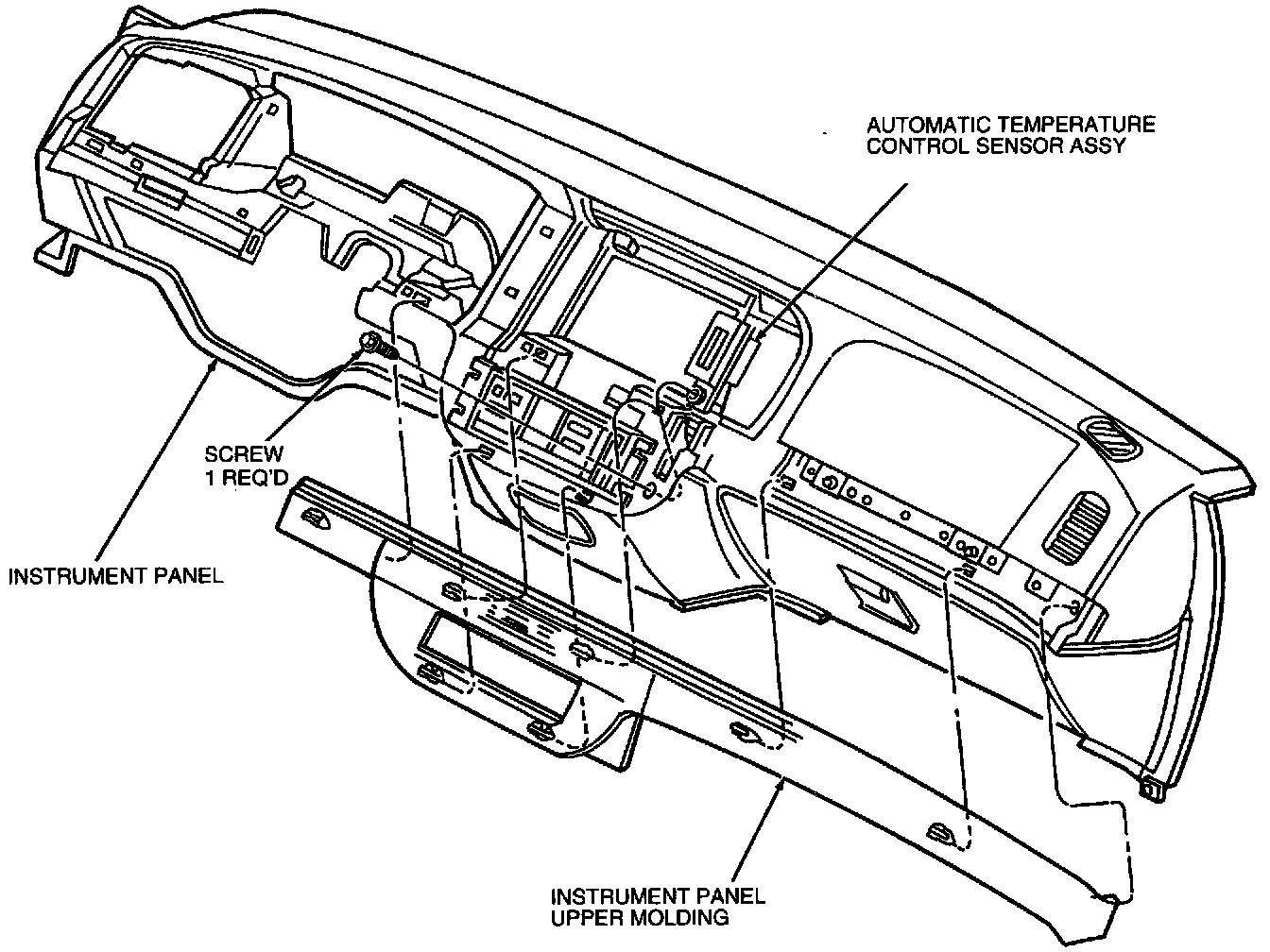

The automatic temperature control sensor:
^ is located behind the instrument panel to the right of the EATC control assembly.
^ contains a thermistor which measures the temperature of the air inside the passenger compartment.
