Rear

REMOVAL
1. Remove axle shaft and position on a work bench.

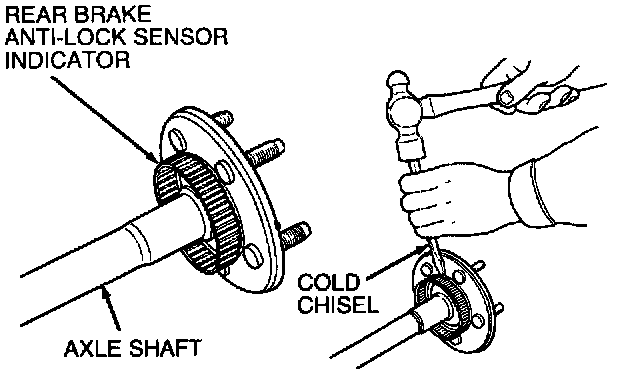

2. Using a thin-blade cold chisel between rear brake anti-lock sensor indicator and axle shaft, strike chisel evenly around flange forcing rear brake anti-lock sensor indicator off rear brake anti-lock sensor indicator journal.
3. Discard rear brake anti-lock sensor indicator.

CAUTION: Use only a cold chisel, not a screwdriver. Extreme care should be taken not to scratch or nick rear wheel bearing and seal journal and rear brake anti-lock sensor indicator journal.

NOTE: Prior to installation of new rear brake anti-lock sensor indicator, remove any burrs or nicks from journal.





INSTALLATION

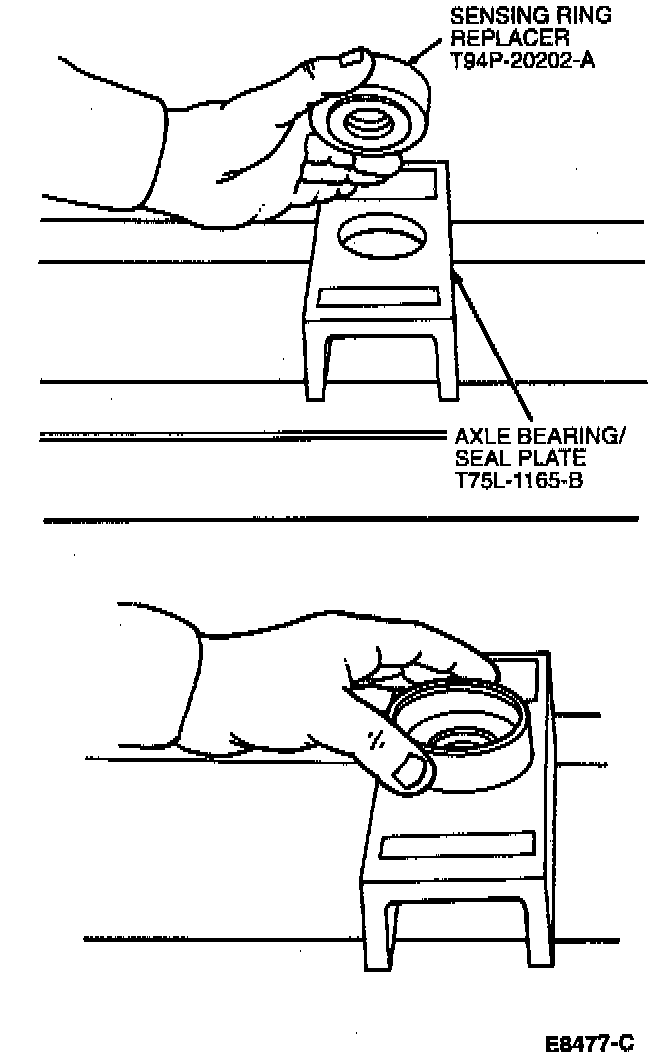

1. Position Sensing Ring Replacer T94P-20202-A on Axle Bearing/Seal Plate T75L-1165-B, placed on press bed as shown.





2. Place new rear brake anti-lock sensor indicator over Sensing Ring Replacer T94P-20202-A.

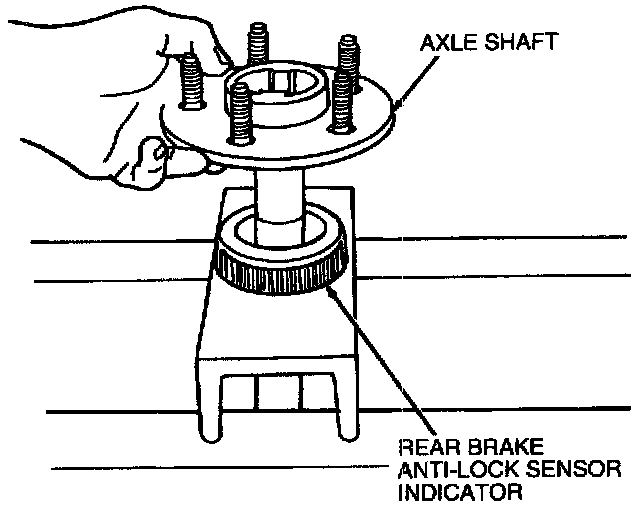

3. Insert axle shaft through tool.

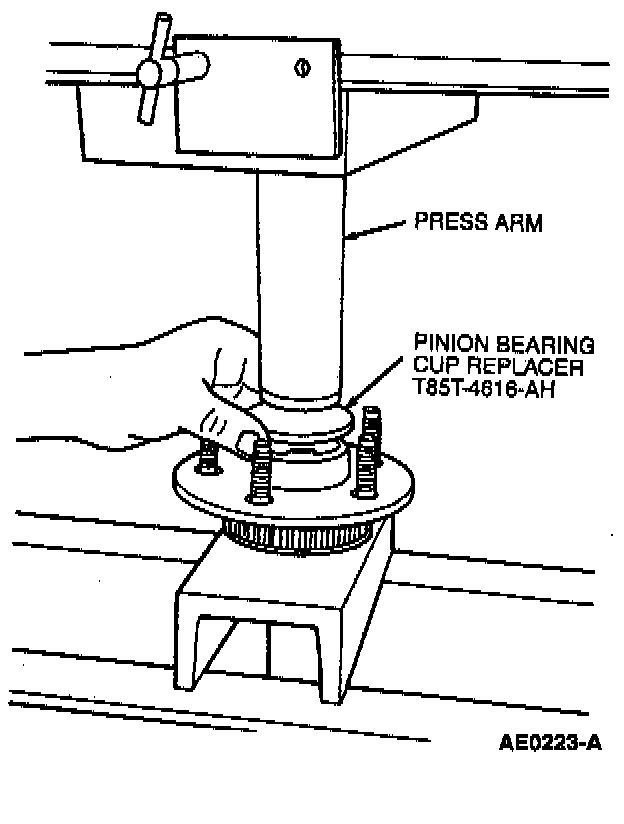

4. Place Pinion Bearing Cup Replacer T85T-4616-AW over hub end of axle shaft.

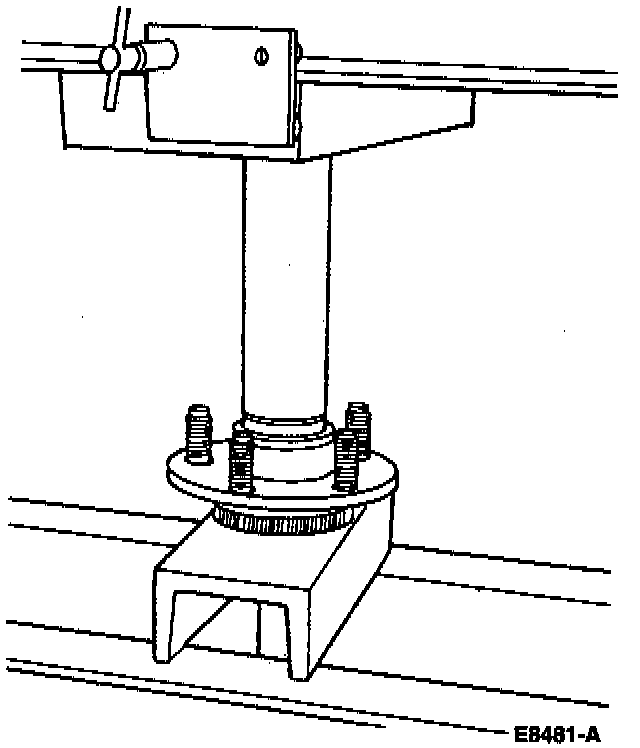

5. Press axle shaft until it bottoms out on axle flange.
6. Install axle shaft.
