Connector Locations

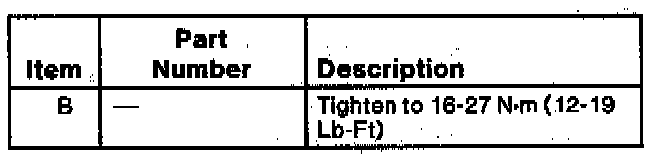

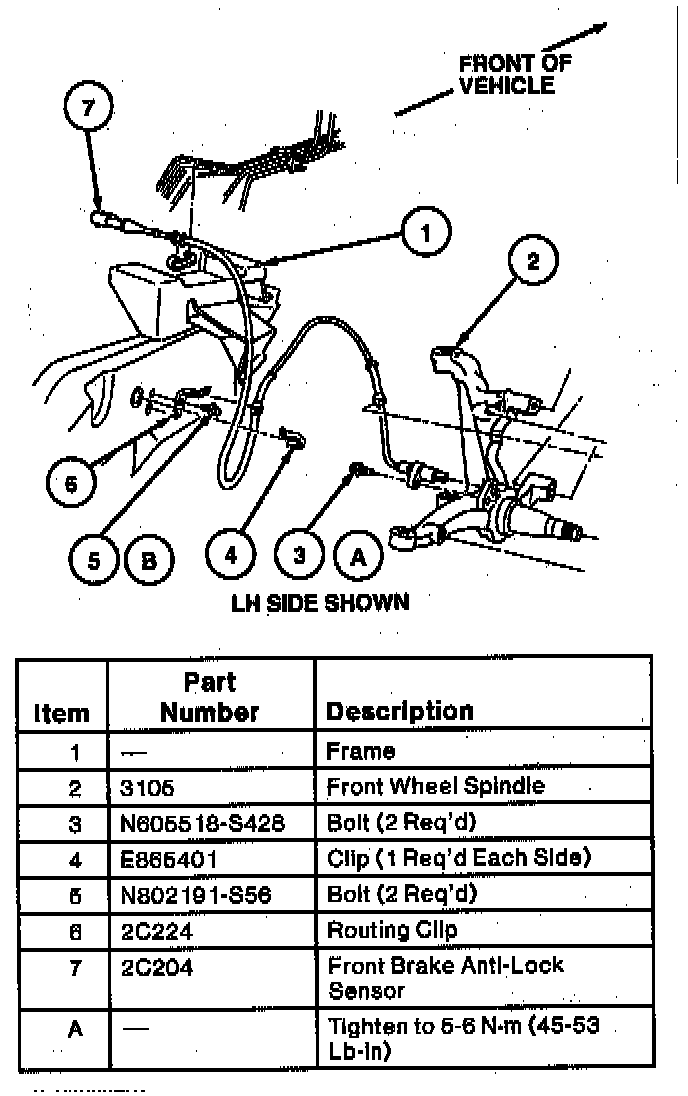

Exploded View Of Front Brake Anti-Lock Sensor Components/Description (Part 1 Of 2):



Front Brake Anti-Lock Sensor Description (Part 2 Of 2):

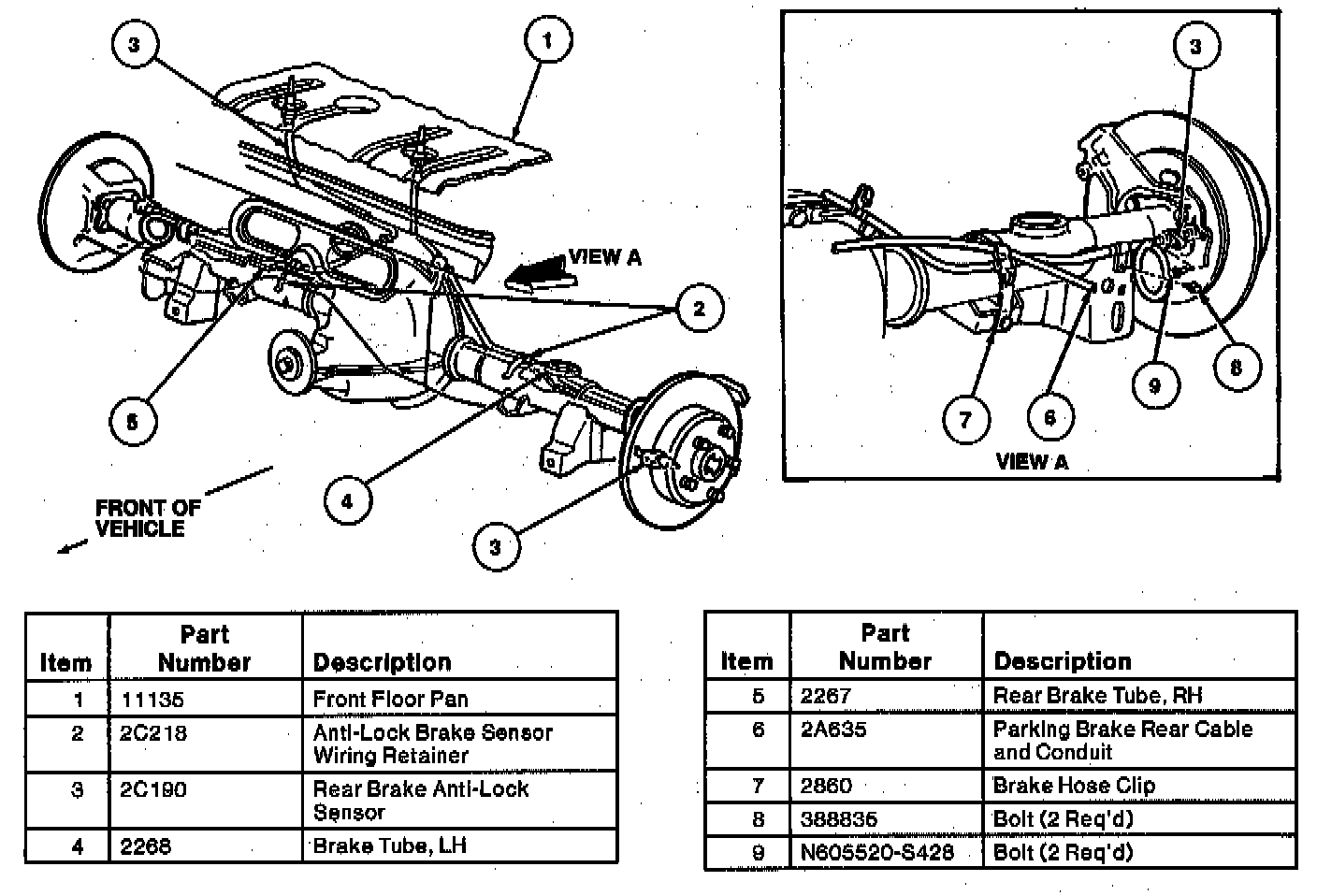

Rear Brake Anti-Lock Sensors:
