Power-Six-Way Without Power Recliner

REMOVAL

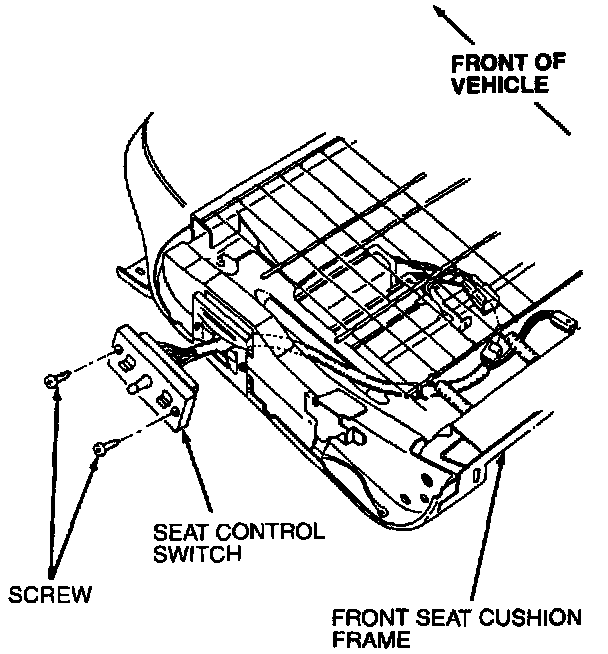

1. Remove two screws retaining seat regulator control switch to front seat cushion frame.
2. Disconnect harness connector located under seat and remove seat regulator control switch.






INSTALLATION
1. Follow removal procedure in reverse order.
