Child Seat Tether Attachment: Service and Repair

INSTALLATION
To install, follow instructions provided with the child safety belt anchor tether kit.






TETHER ATTACHMENT LOCATION

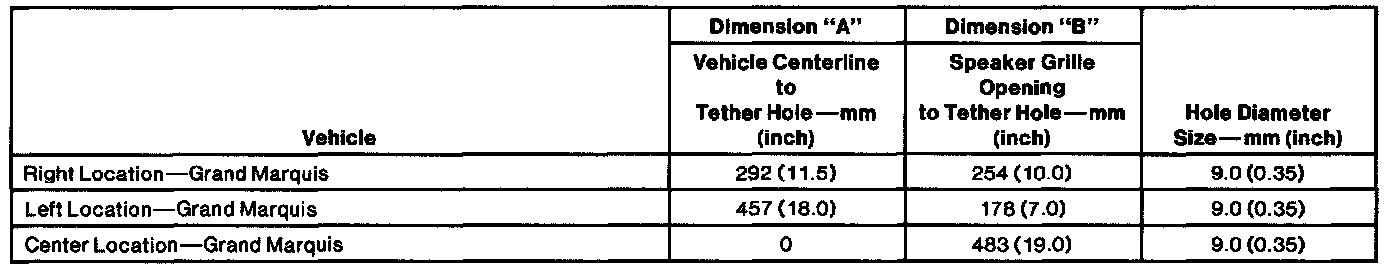

- Dimension A is the distance from the centerline of the vehicle to the center of the tether attachment holes.

- Dimension B is the approximate distance from the center of the radio speaker grille opening to the center of the tether attachment holes.










WINDOW TRAY, REAR

WARNING: Use only the tether attachment hole locations shown. the tether anchorage will not perform properly if the wrong mounting location is used.

WARNING: Avoid holding down the trim panel in the area that the hole is being pierced to avoid hand or arm injury.

WARNING: A narrow blade is not recommended as it could break, possibly causing eye injury.

- The right outboard hole is located approximately 292 mm (11.5 inches) from center of the package tray panel and approximately 254 mm (10 inches) rearward from right speaker grille opening.

- The center hole is located at the approximate center line of the vehicle, 457 mm (18 inches) rearward from center of the package tray panel and approximately 483 mm (19 inches) from right speaker grille opening.

- The left outboard hole is located approximately 457 mm (18 inches) from center of the package tray panel and approximately 178 mm (7 inches) rearward from left speaker grille opening
