Driver's Side

REMOVAL

NOTE: If the driver side air bag module did not deploy in a collision, it may not have been needed. Complete all diagnostics before replacing the driver side air bag module.

1. Record USER 1 and USER 2 pre-set radio frequencies for reprogramming following completion of service procedures.

WARNING: The electrical circuit necessary for system deployment is powered directly from the battery. To avoid accidental deployment and possible personal injury, the negative battery cable must be disconnected prior to servicing or replacing any system components.

2. Disconnect battery ground cable. Wait one minute for backup power supply energy to be depleted.

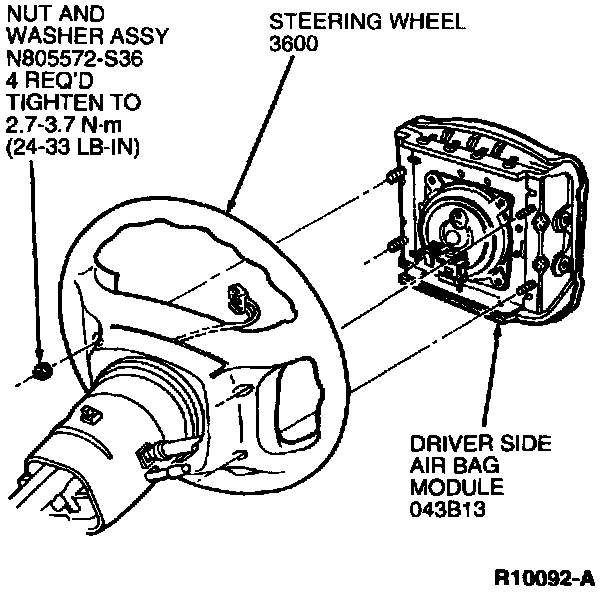

3. Remove four nut and washer assemblies retaining driver side air bag module to steering wheel.

WARNING: Place air bag module on bench with trim cover facing up to avoid accidental deployment and personal injury.

4. Disconnect the air bag electrical connector from air bag sliding contact connector. Remove driver side air bag module.

INSTALLATION






NOTE: Fill out and return air bag traceability postcard for new air bag with VIN numbers and note diagnostic trouble code.

1. connect air bag electrical connector to air bag sliding contact connector.
2. Position driver side air bag module to steering wheel and secure with four nut and washer assemblies tightened to 2.7-3.7 Nm (24-32 lb in).
3. Reconnect battery ground cable.
4. Prove out air bag system.
5. Reprogram user 1 and user 2 radio frequencies and set clock.
