Driver Door Module

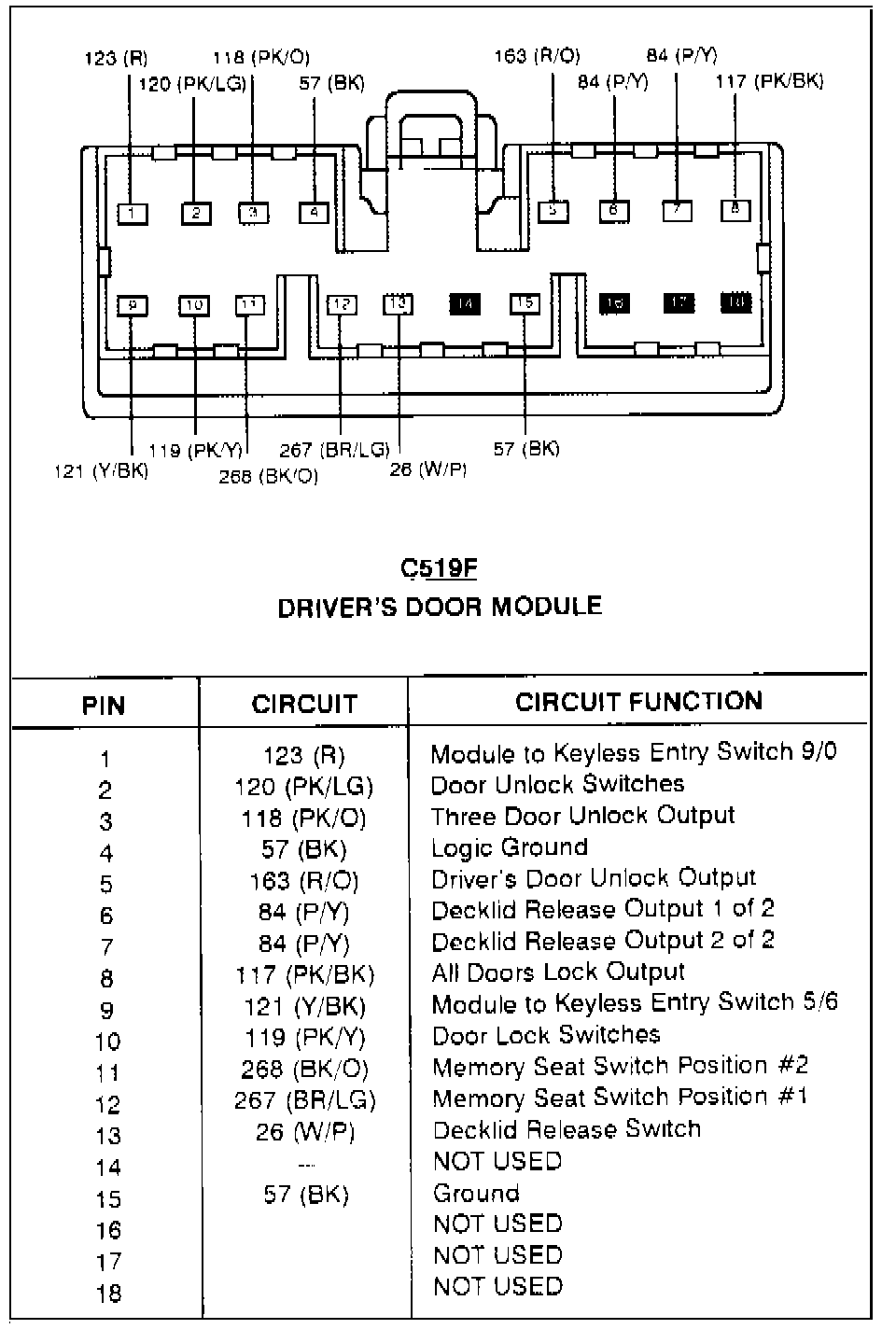

Driver's Door Module - C519:

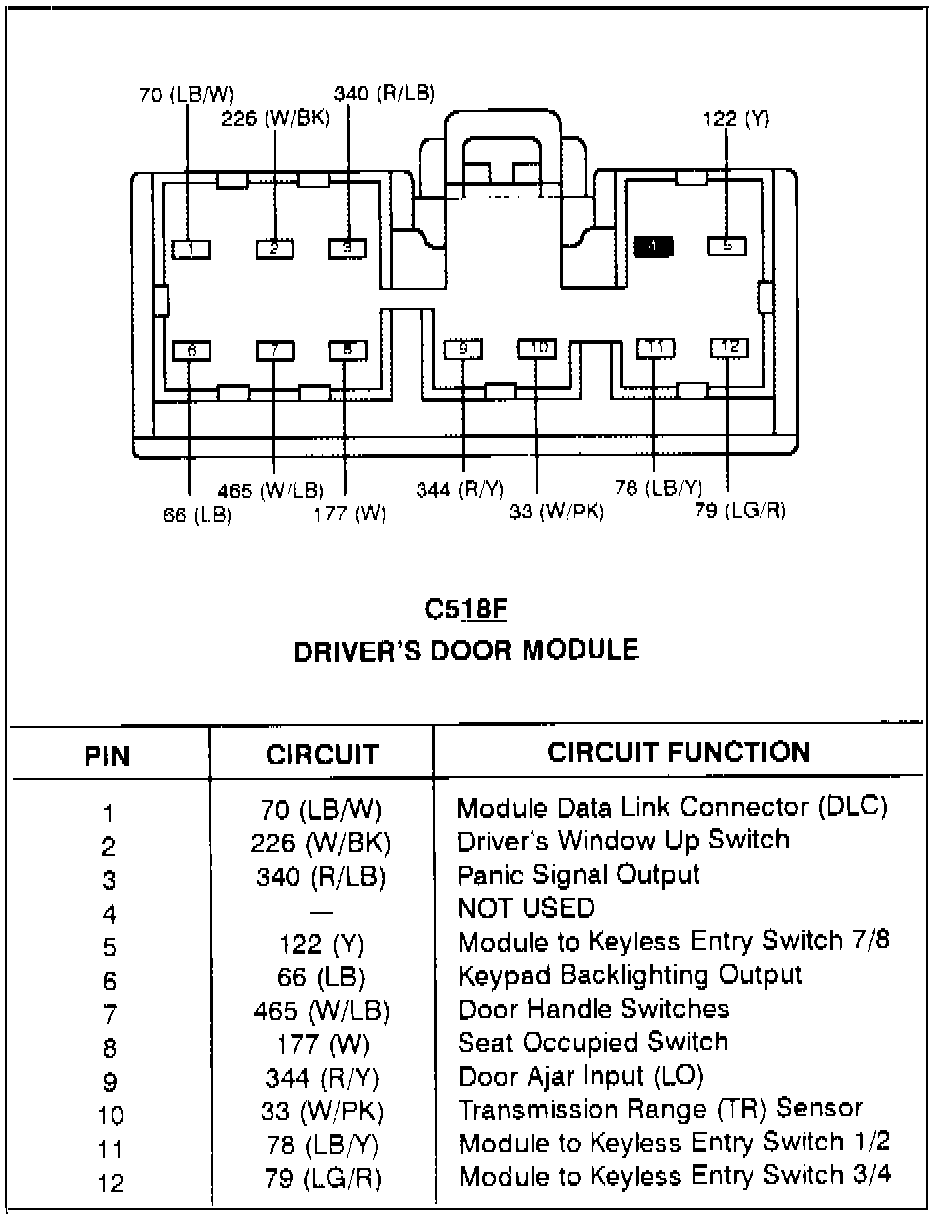

Driver's Door Module - C518:

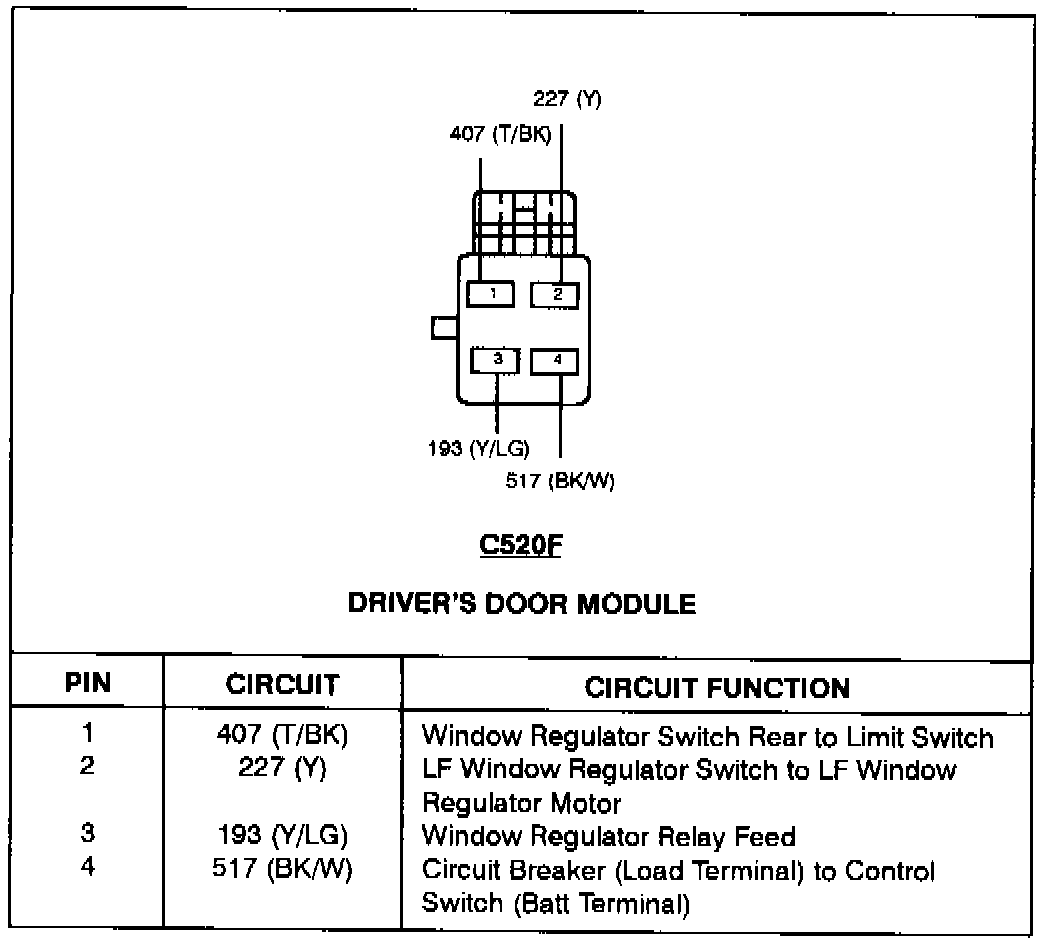

Driver's Door Module - C520:
