System Diagrams

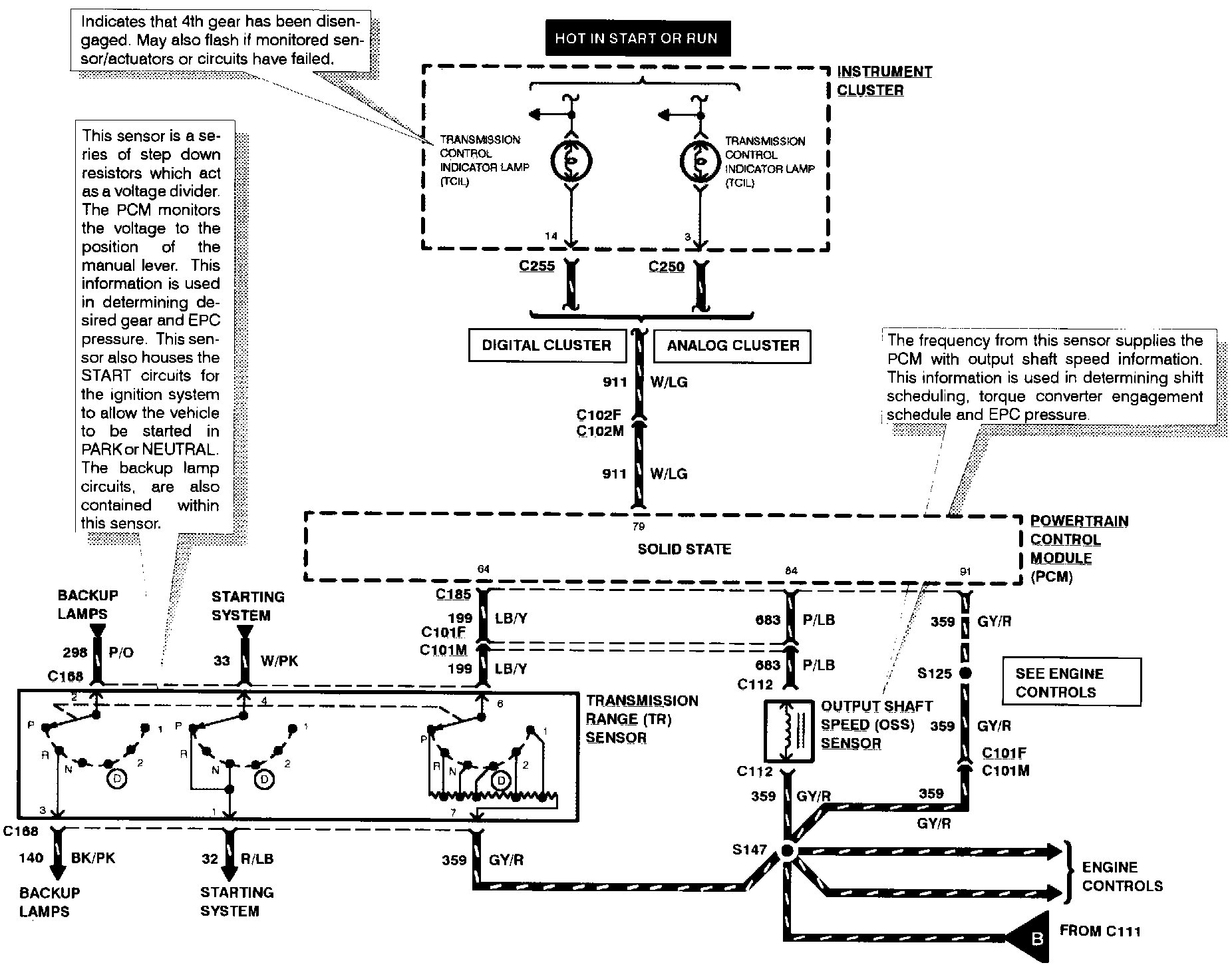

Transmission Controls (4R70W) (Part 1 Of 4):
Transmission Controls (4R70W) (Part 2 Of 4):

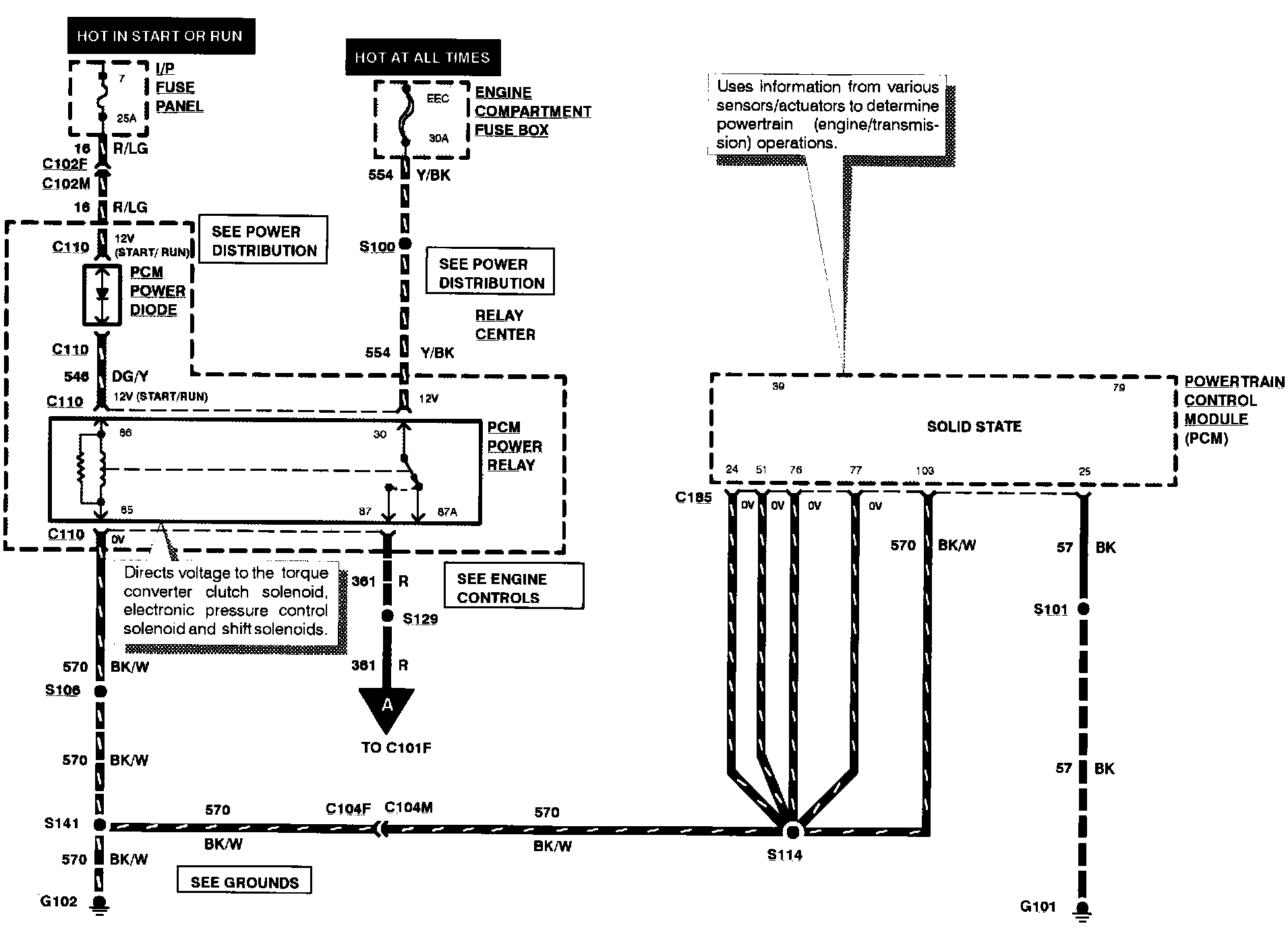

Transmission Controls (4R70W) (Part 3 Of 4):
Transmission Controls (4R70W) (Part 4 Of 4):
