Ambient Light Sensor: Service and Repair

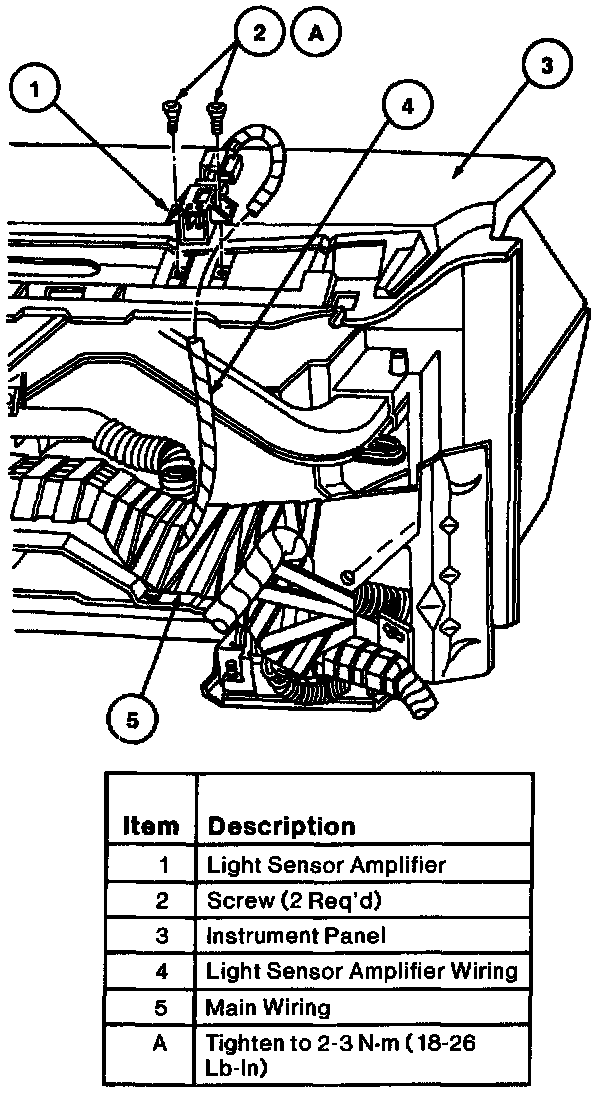

REMOVAL
1. Remove the instrument panel upper finish panel.
2. Remove screw retaining the light sensor amplifier assembly to instrument panel.
3. Disconnect main wiring harness connector from light sensor amplifier assembly.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten sensor retaining screws to 2-3 Nm (18-26 Lb-In).
