Hazard Flasher Relay
>>
Locations
>>
Police Option Emergency Flasher Relay #1
Police Option Emergency Flasher Relay #1

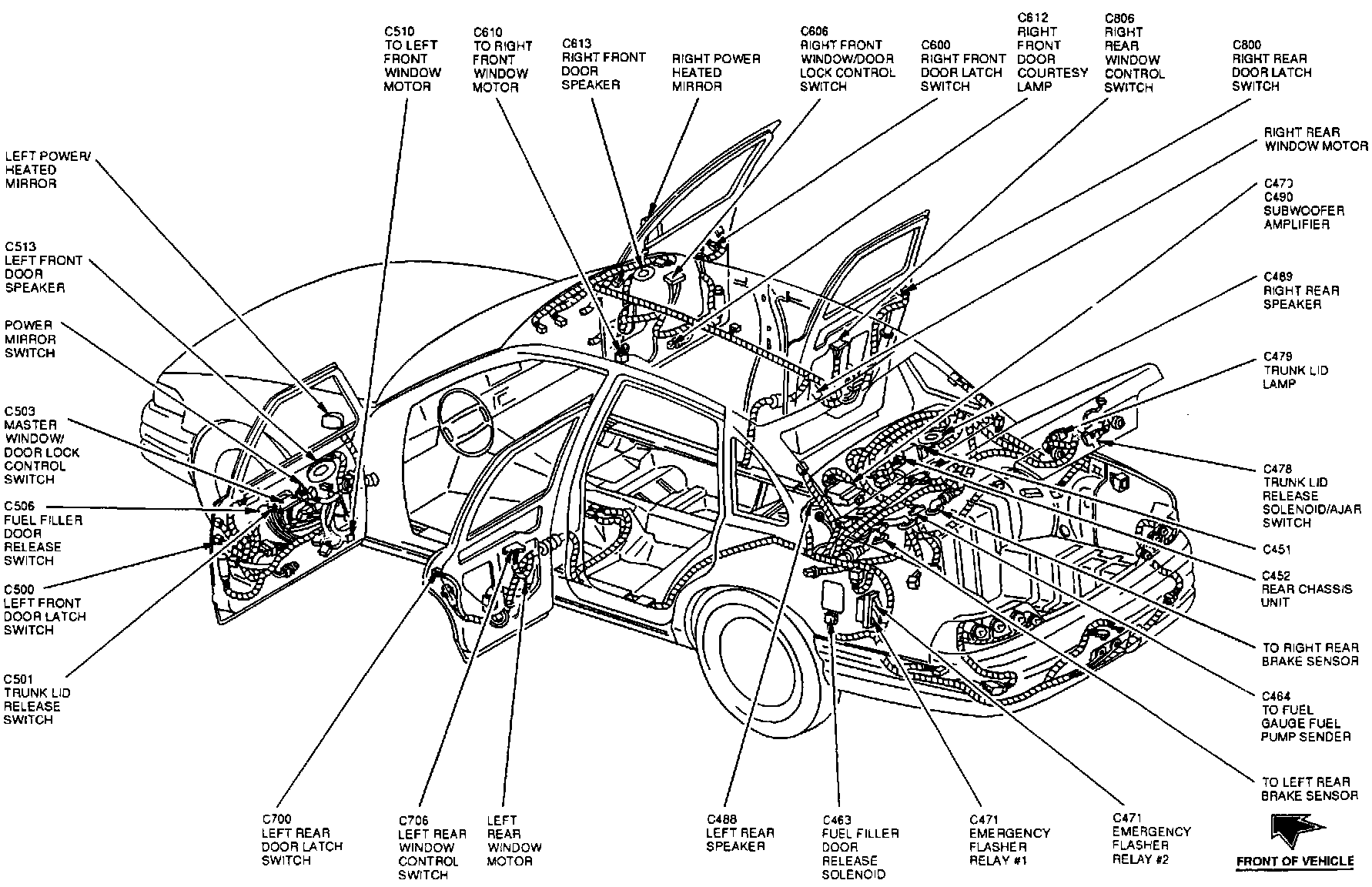

Full Body View:
The Emergency Flasher Relay #1 is located at the LH rear of the trunk.
