Low Fuel Level Warning

NOTE: The fuel gauge and low fuel level warning switch are calibrated together when produced, and both units must be replaced when either is replaced. The service kit contains a new fuel gauge and low fuel level warning switch.

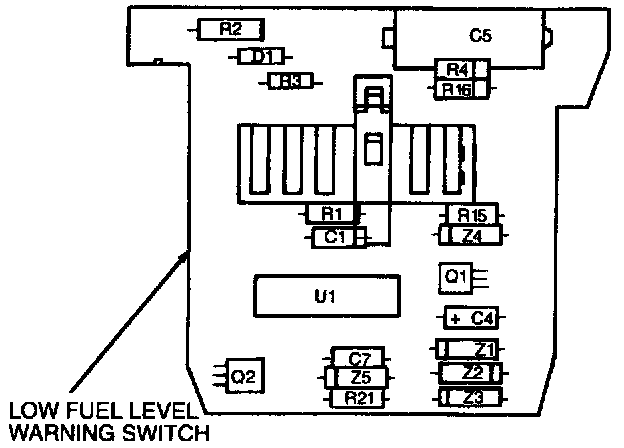

The low fuel level warning switch:
- Is designed to reduce fuel gauge needle fluctuation.
- Provides a low fuel warning when fuel gauge reads approximately 1/16 full.
