Home >> Mercury >> 1997 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests (Electronic Instrument Cluster) >> C: Segments Scrambled, All ON, Half Lit, Blinking or Missing

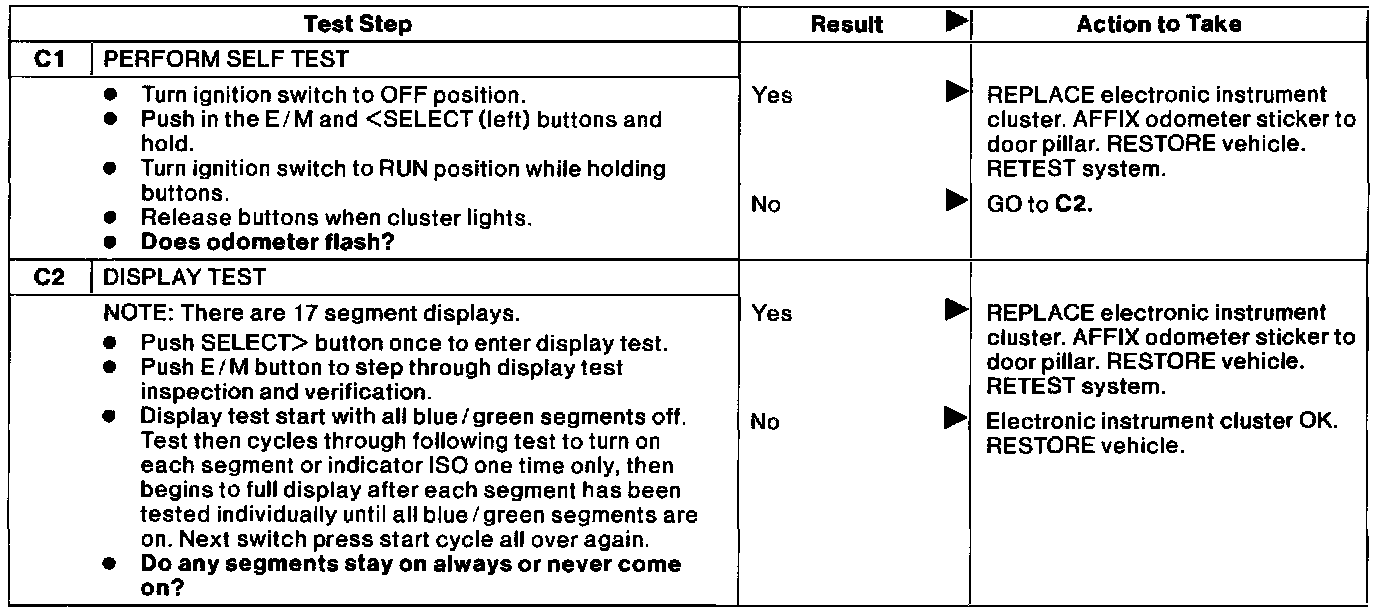

C: Segments Scrambled, All ON, Half Lit, Blinking or Missing
