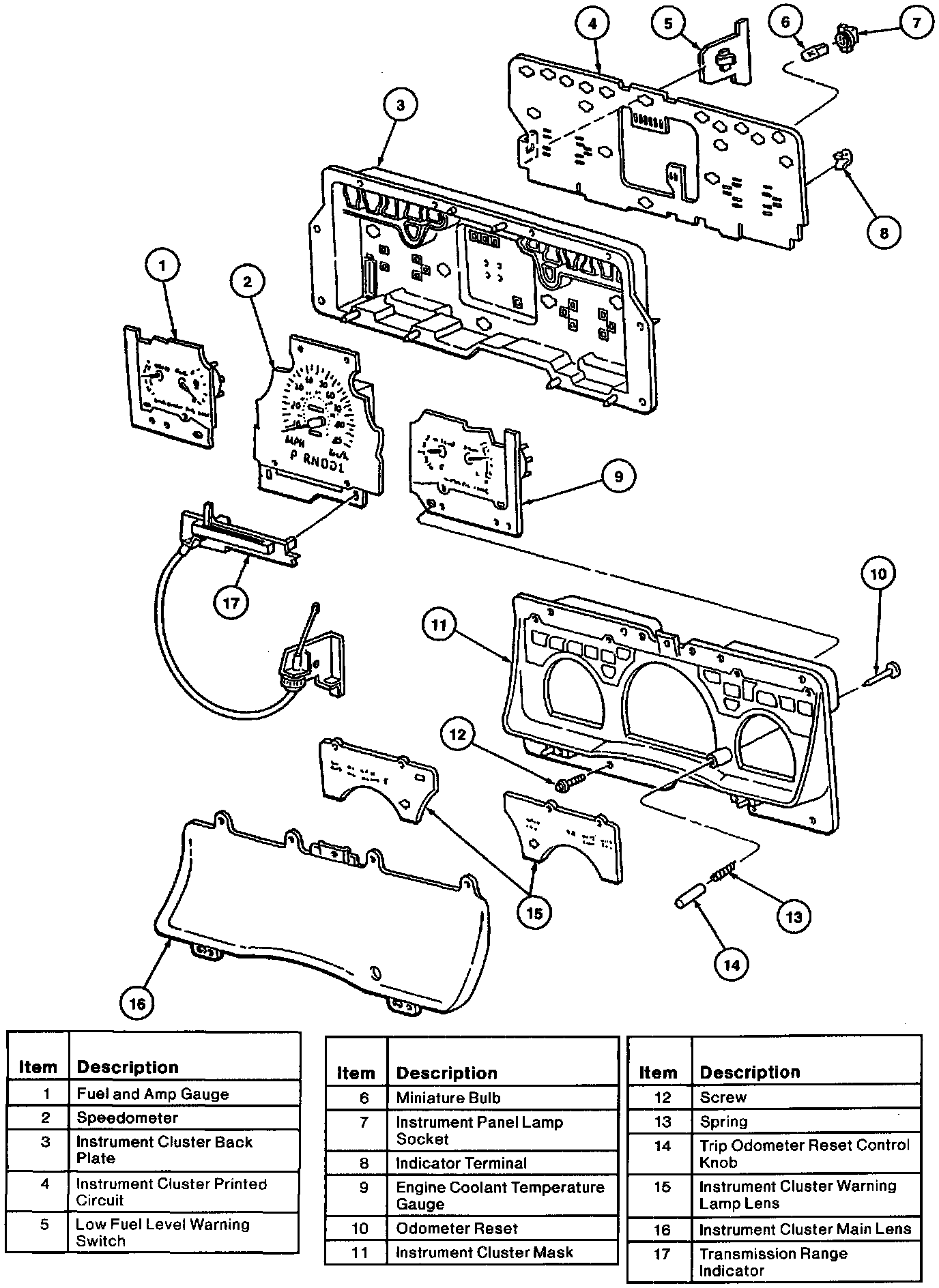

Disassembly and Assembly

DISASSEMBLY
1. Remove five retaining screws from front of instrument cluster mask.
2. Gently pry instrument cluster mask from instrument cluster back plate and remove.
3. Remove four retaining screws from instrument cluster.
4. Gently remove instrument cluster from instrument cluster mask.

ASSEMBLY
1. To assemble, reverse Steps 1 through 4.
