Defrost Nozzles and Side Demister Ducts

REMOVAL




1. Remove the instrument panel.

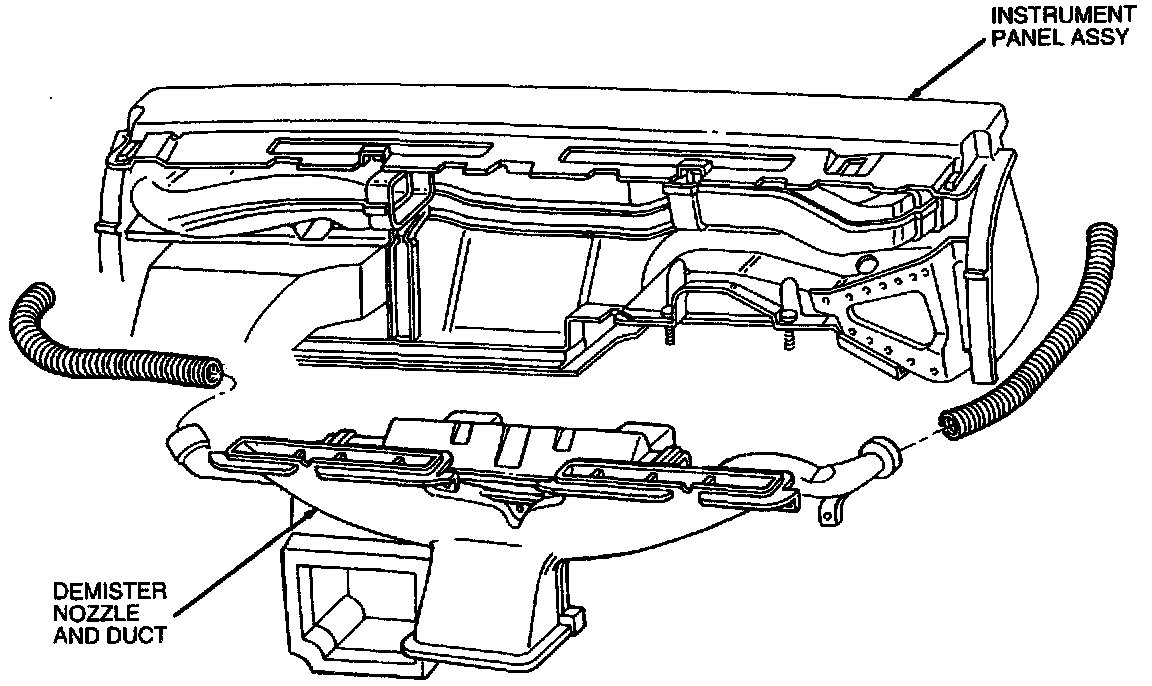

2. Remove four screws retaining the demister nozzle and duct to the top of the instrument panel and two screws retaining the demister nozzle and duct to the instrument panel reinforcement.
3. Remove two screws retaining both the RH A/C evaporator register duct and LH A/C evaporator register duct to the top of the instrument panel.
4. Remove demister nozzle and duct, LH and RH A/C evaporator register ducts as an assembly from instrument panel.
5. Remove one screw retaining the A/C evaporator register duct to the demister nozzle and duct and two screws to the instrument panel reinforcement.

INSTALLATION
1. Follow removal procedure in reverse order.
