Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Memory Seat
Memory Seat

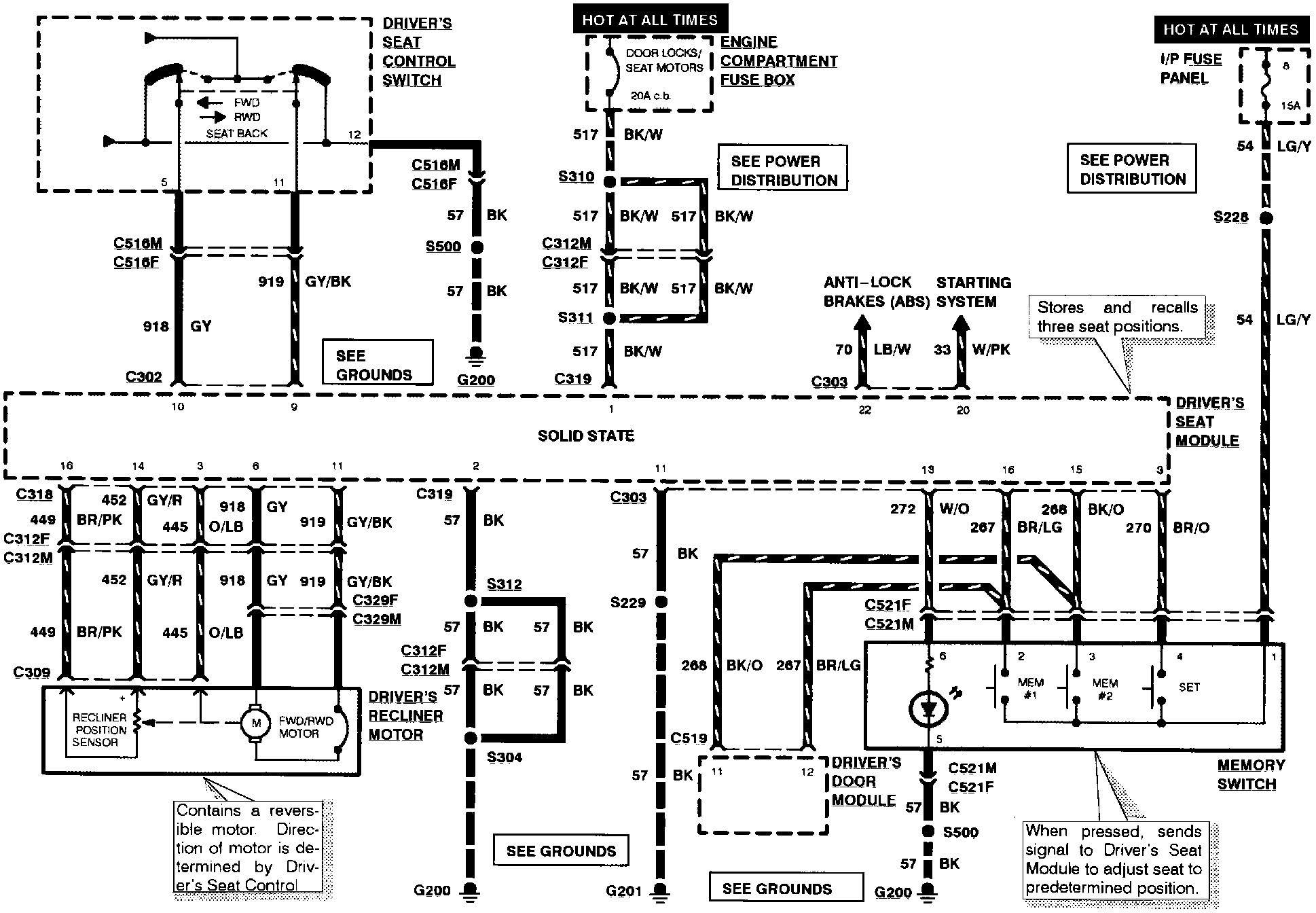

Memory Seats (Part 1 Of 2):

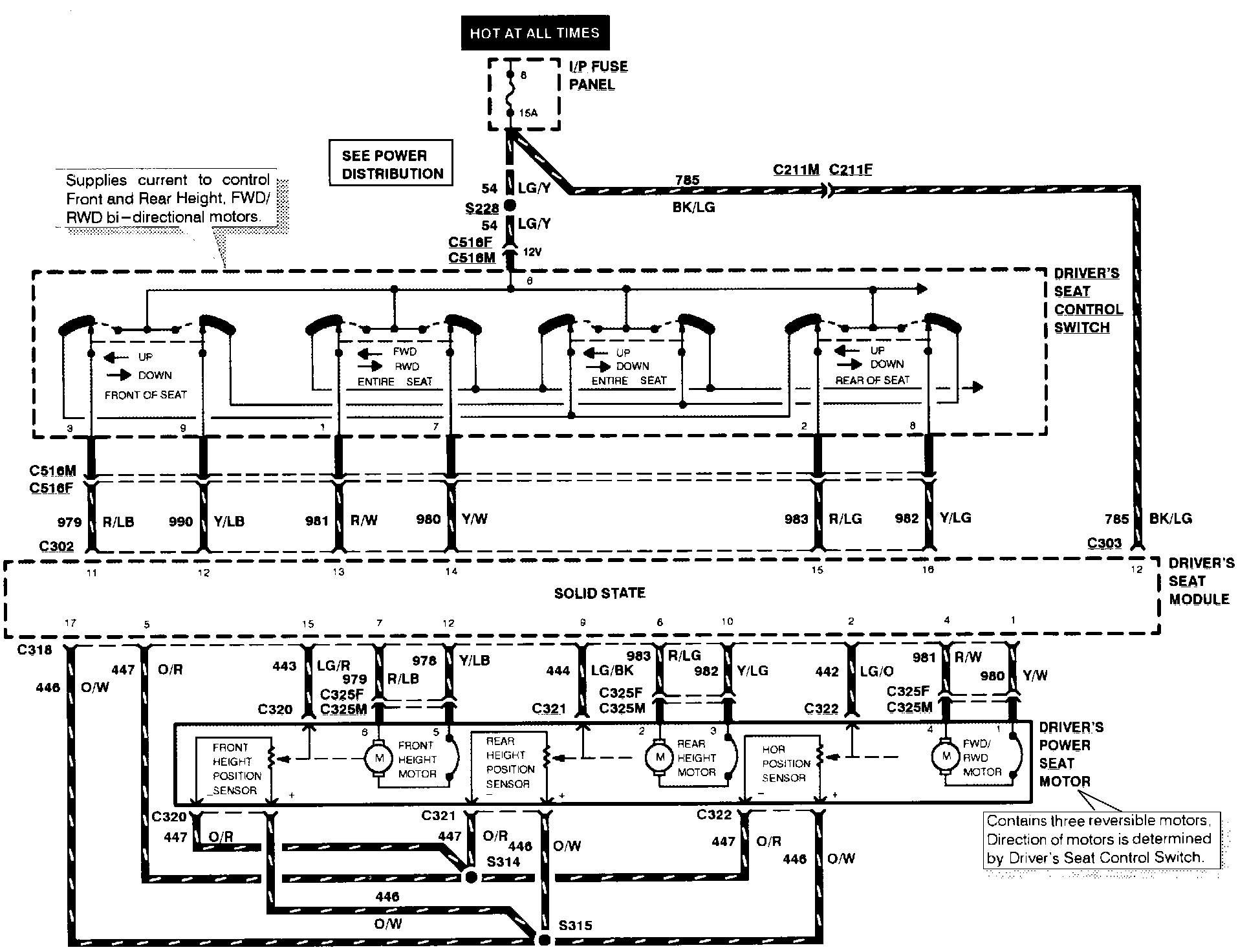

Memory Seats (Part 2 Of 2):
