Circuit Breaker 14

Circuit Breaker 14 - protects the following circuits:
^ Window/Door Lock Control
^ Driver's Door Module
^ One Touch Window Down Module

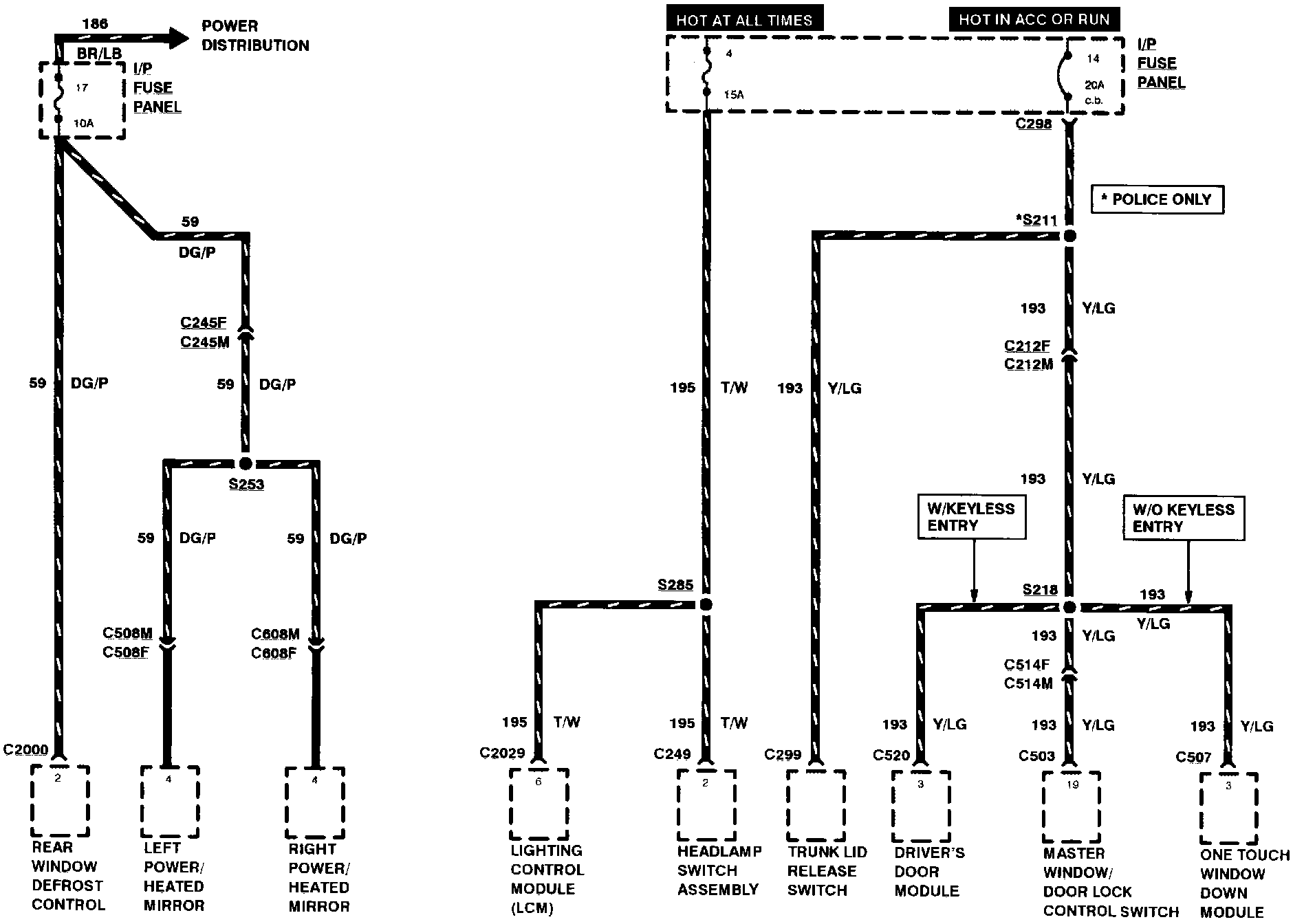

Power Distribution:

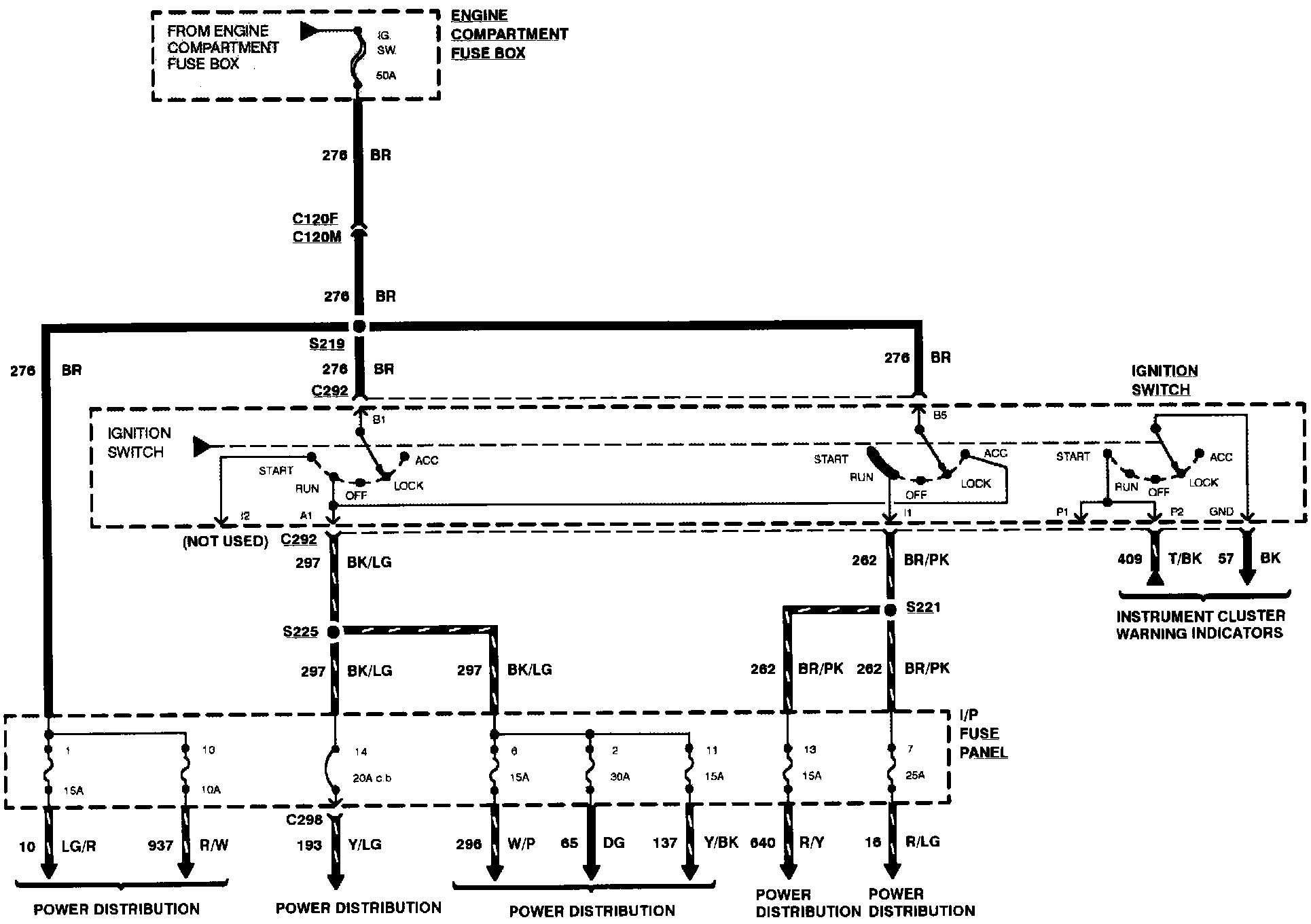

Power Distribution:




Power Distribution:
