Circuit Breaker DOOR LOCKS/SEAT MOTORS

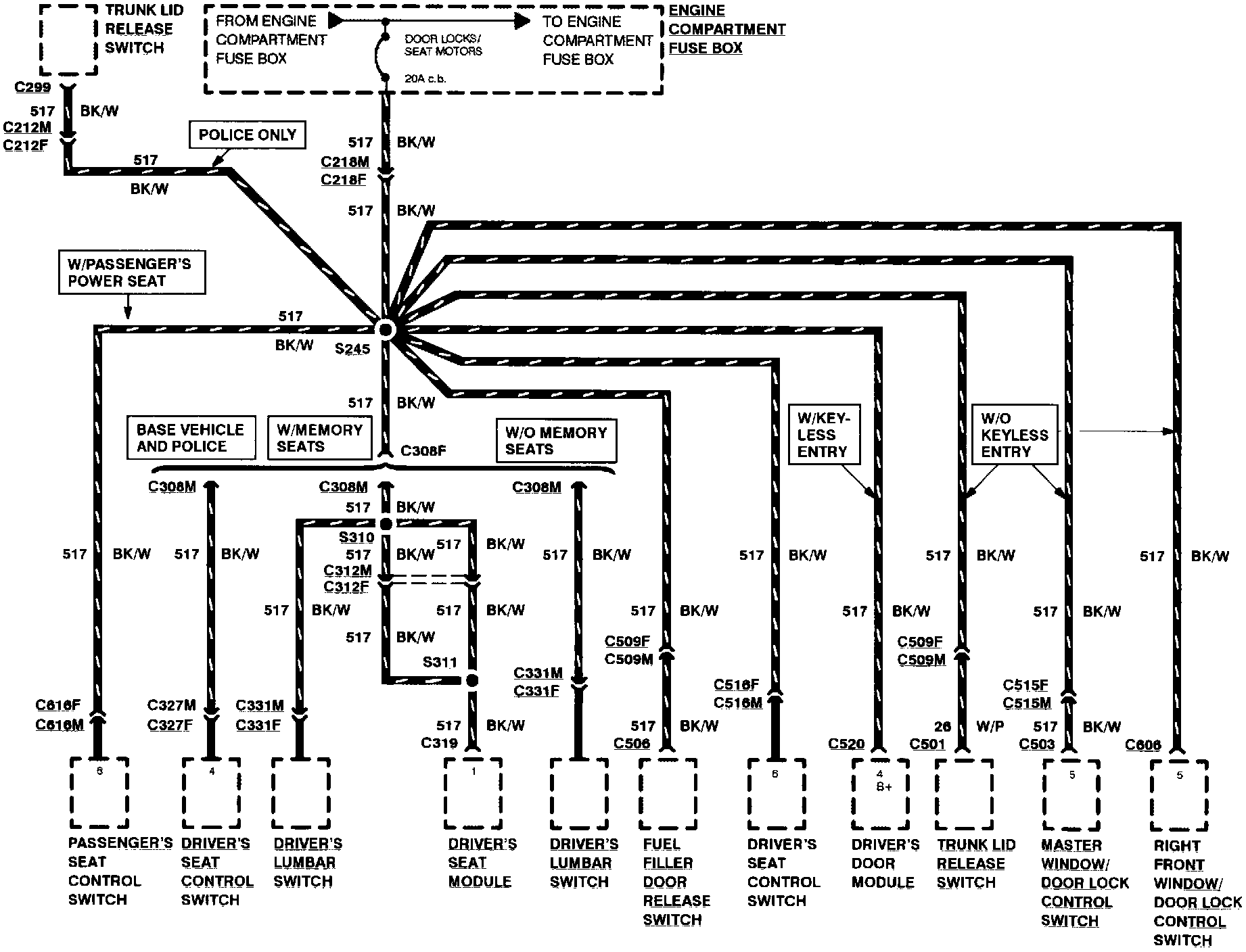

Circuit Breaker DOOR LOCKS/SEAT MOTORS - protects the following circuits:
^ Power Door Locks
^ Power Seats
^ Trunk Lid Release
^ Fuel Filler Door Release

Power Distribution:




Power Distribution:
