Home >> Mercury >> 1997 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Diagrams >> Driver's Seat Motor Assembly >> With Power Recliner/Lumbar

With Power Recliner/Lumbar

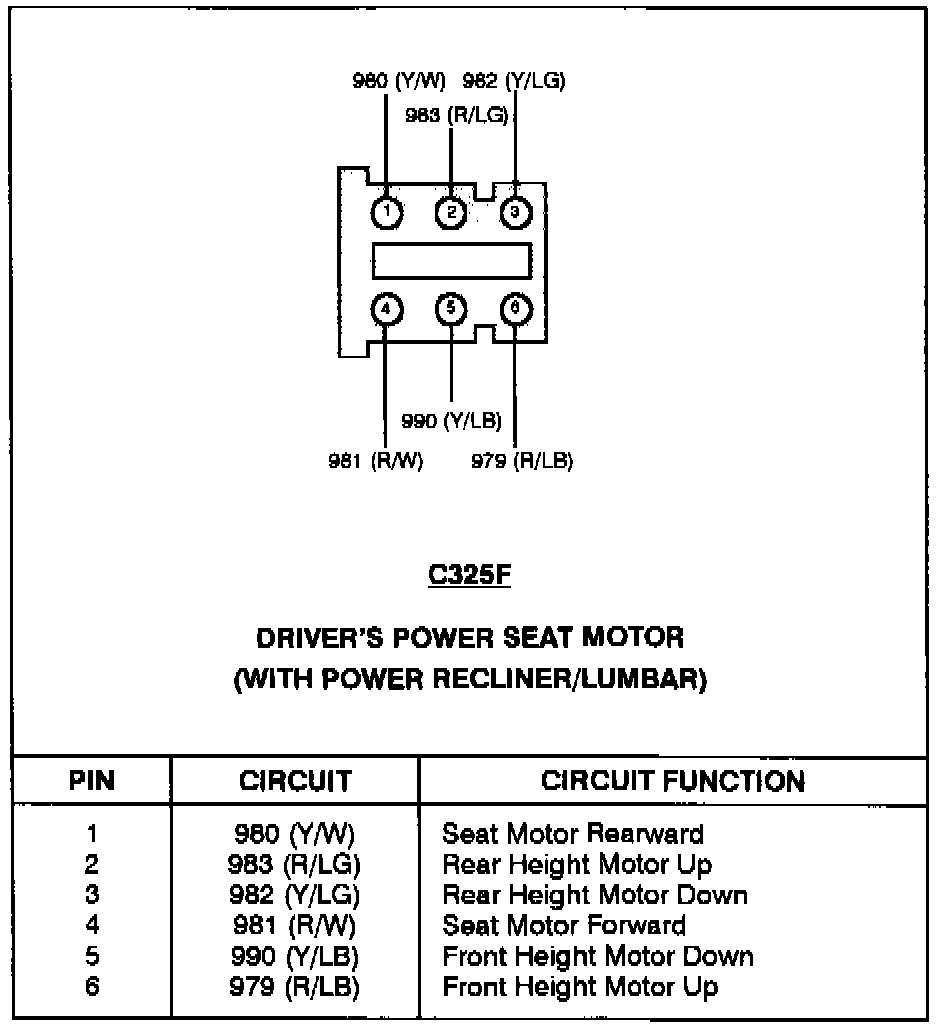

Driver's Power Seat Motor (With Power Recliner/Lumbar):
