Home >> Mercury >> 1997 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Without Power Reclining Seats

Without Power Reclining Seats

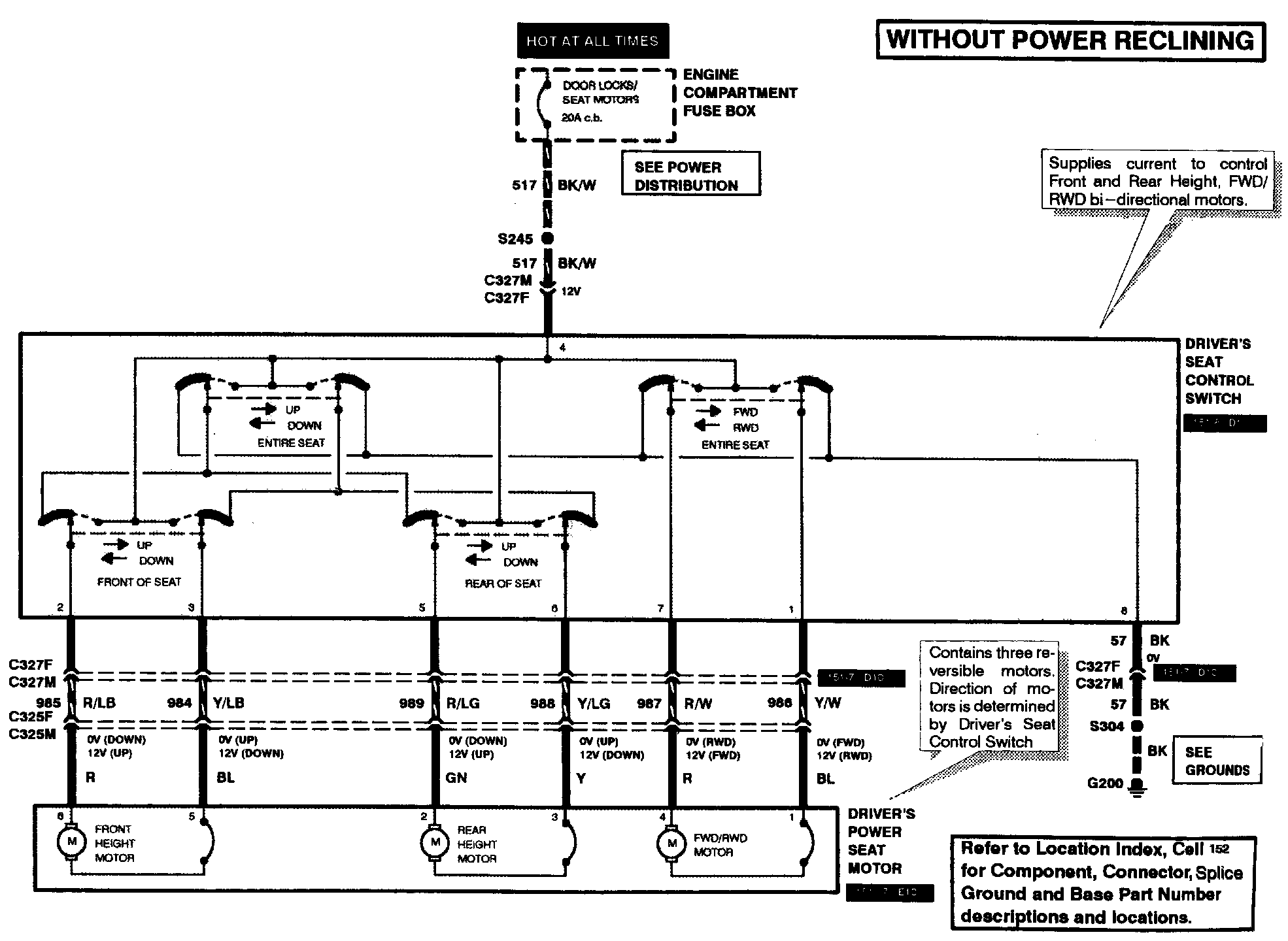

Power Seats (Without Power Reclining):
