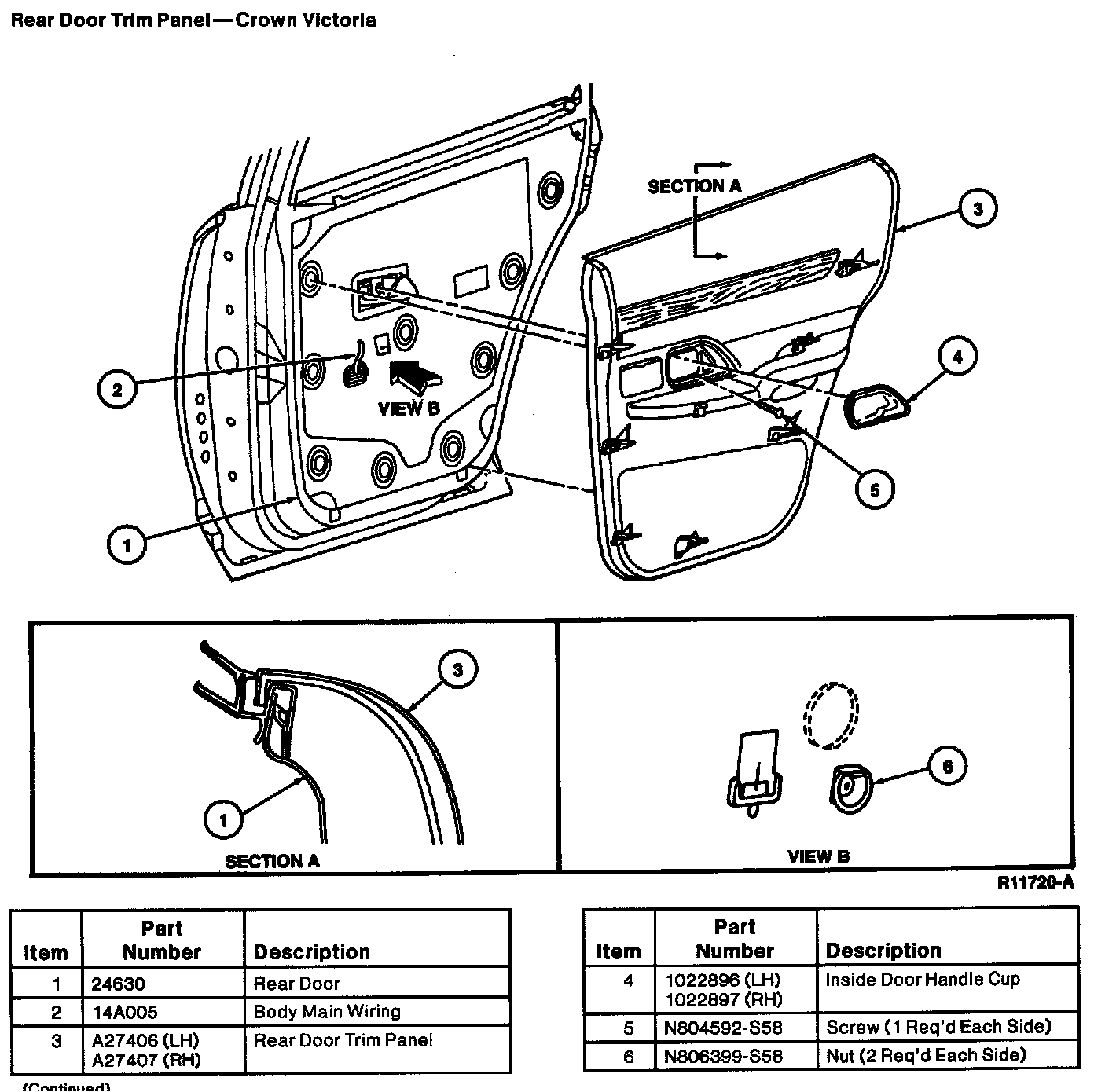

Rear Door Panel: Service and Repair

Removal and Installation

1. Snap out two door pull strap retainer screw covers. Remove screws.

2. Remove one screw from lower rear door panel.

3. Remove window regulator switch housing by gently prying up, starting at front.

4. Disconnect all electrical connectors from window regulator control switch housing.

5. Remove inside door handle cup by gently prying at screwdriver slot.

6. Remove screw directly below release handle.

7. Using the Trim Pad Removing Tool from Rotunda Windshield and Moulding/Trim Removal Kit 107-R0401 or equivalent, pry trim panel retaining clips from rear door inner panel.

8. Disconnect any electrical connection from switches, if equipped, and remove rear door trim panel.

9. To Install, reverse Removal procedure.
