Home >> Mercury >> 1997 >> Grand Marquis V8-4.6L VIN W >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Diagrams >> Connector Views >> LUX Radio System >> Rear Chassis Unit >> With Subwoofer

With Subwoofer

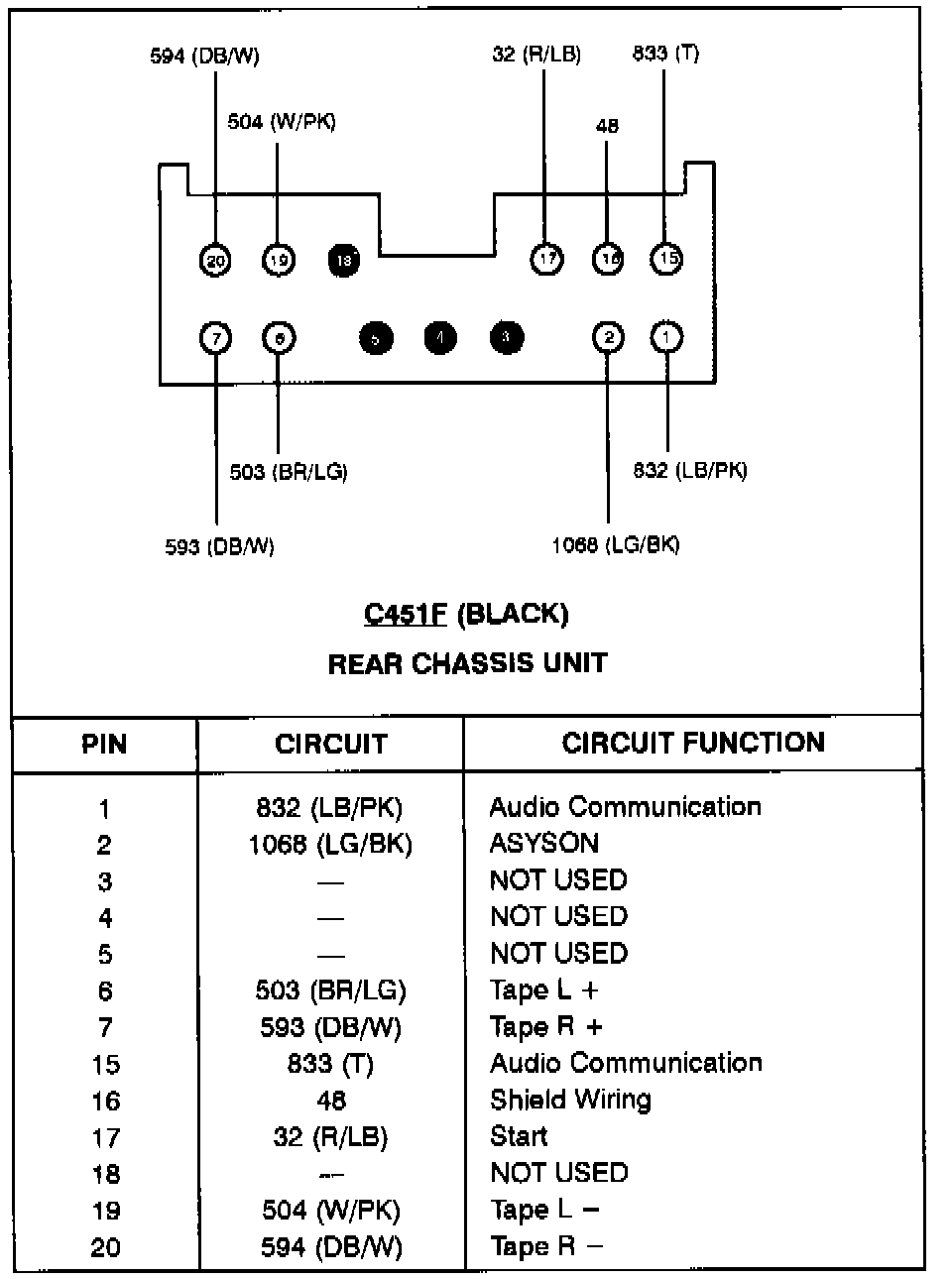

Rear Chassis Unit - C451:

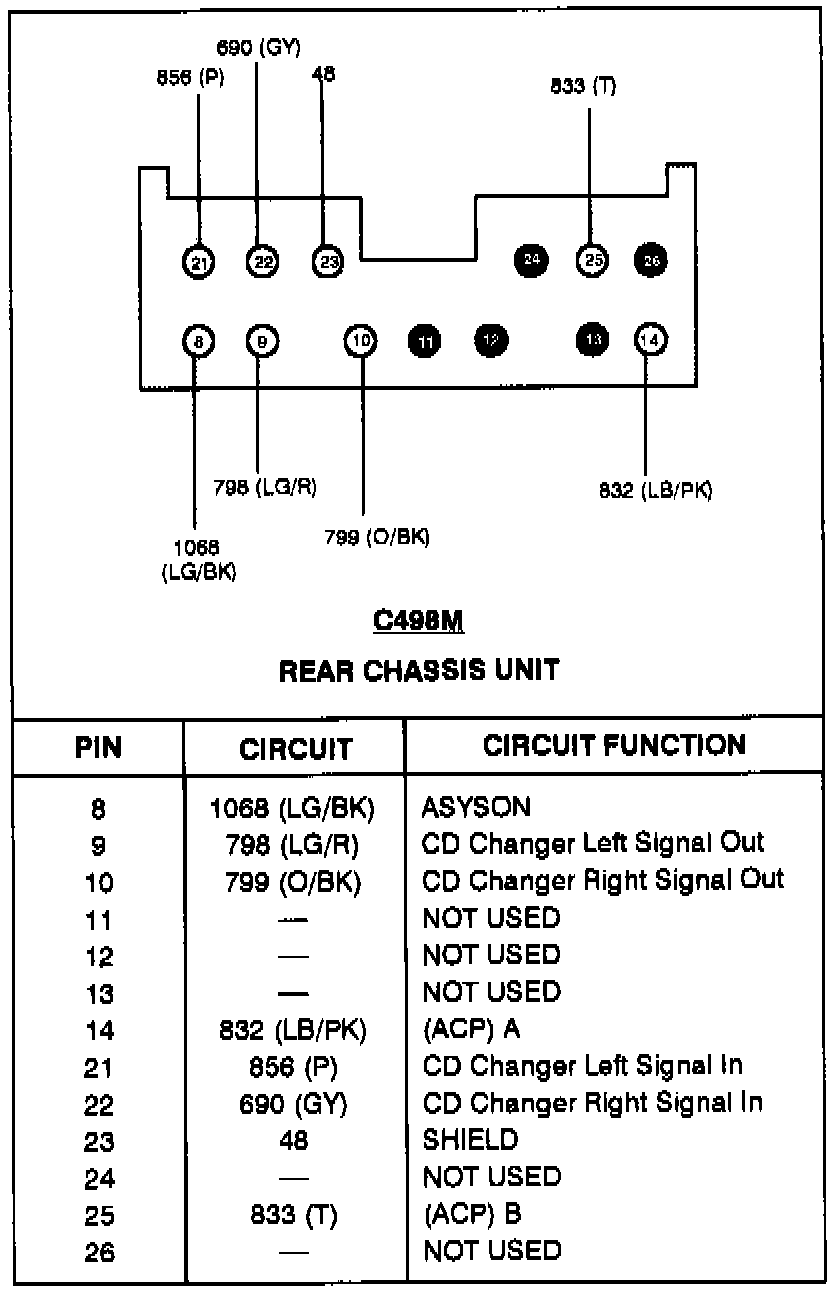

Rear Chassis Unit - C498:

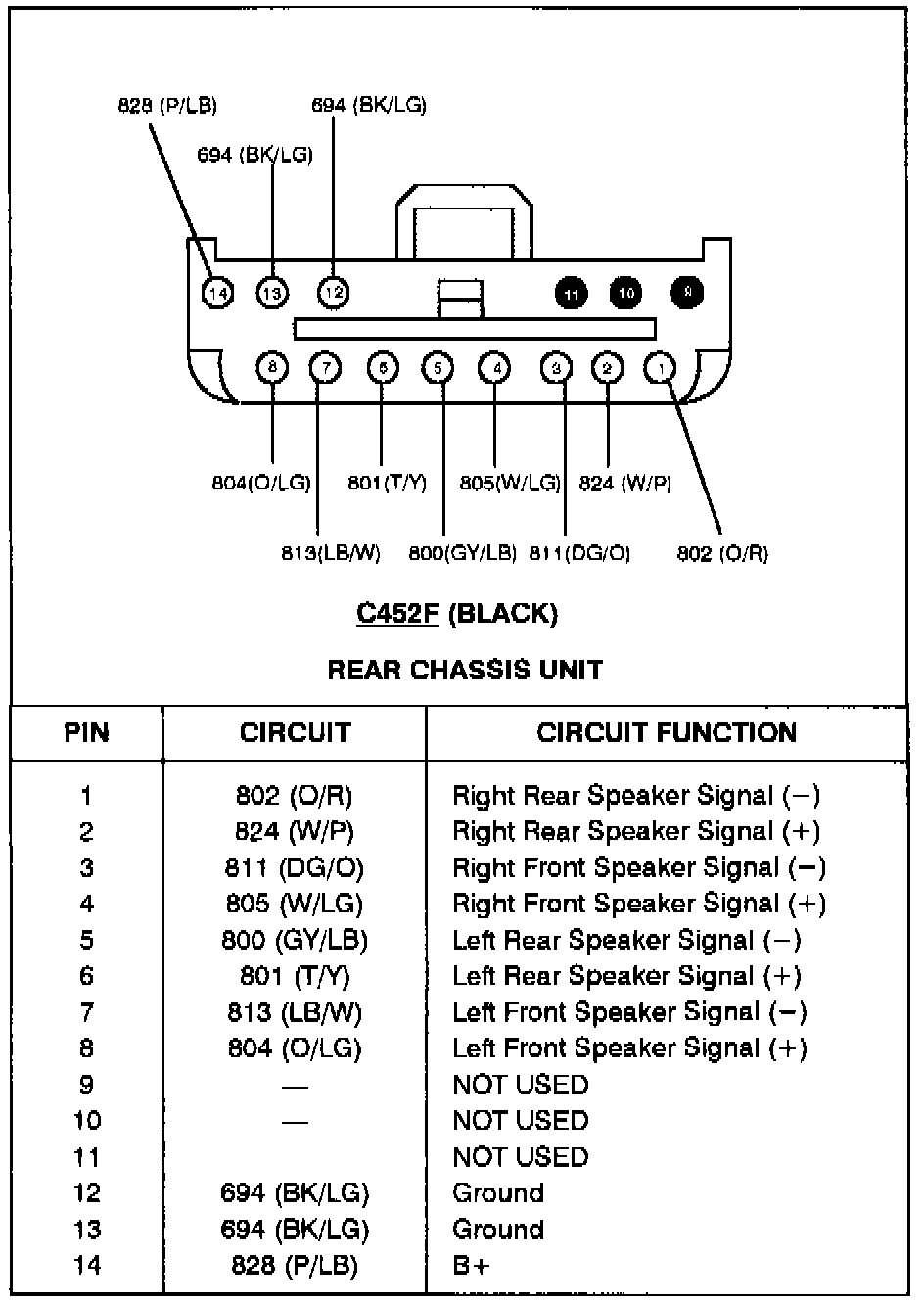

Rear Chassis Unit - C452:

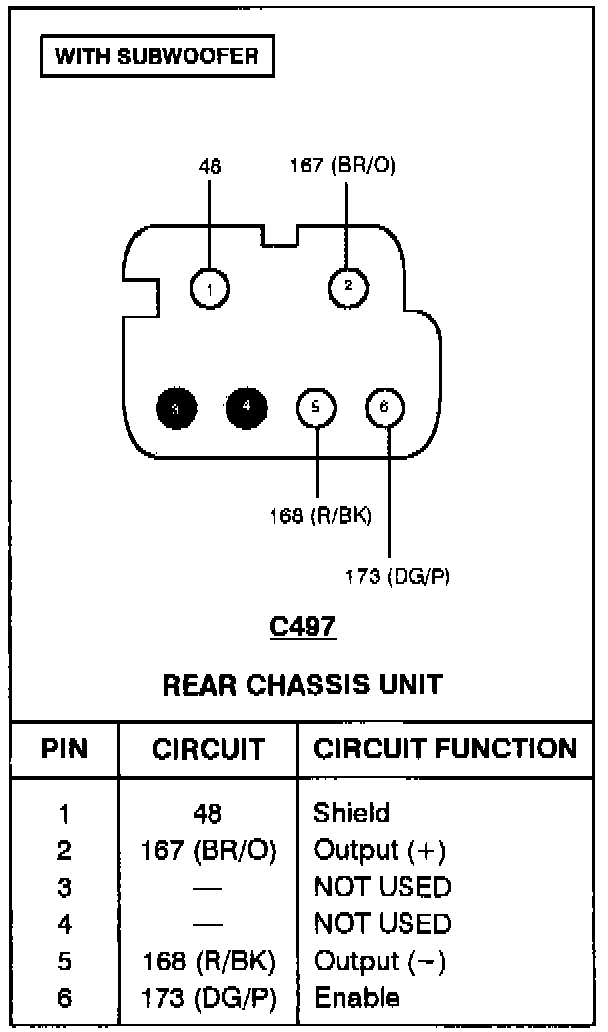

Rear Chassis Unit - C497:
