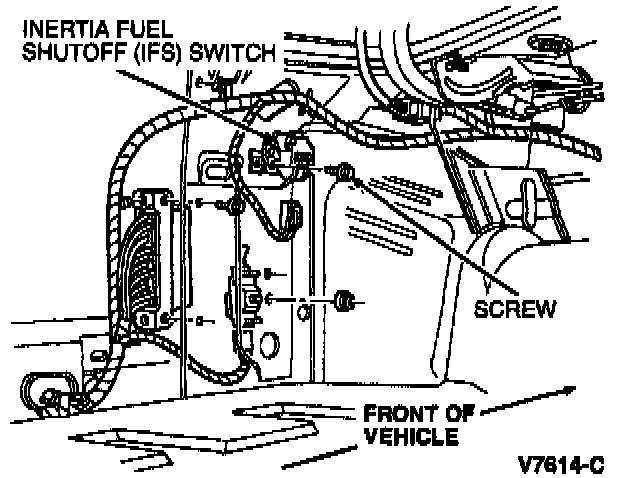

Inertia Fuel Shutoff Switch: Service and Repair






REMOVAL and INSTALLATION
1. Open luggage compartment door.
2. Pull back luggage compartment trim and remove screw retaining inertia fuel shutoff switch.
3. Disconnect wiring harness connector from inertia fuel shutoff switch and remove inertia fuel shutoff switch.
4. To install, reverse Removal procedure.
