Headlamp Switch: Testing and Inspection

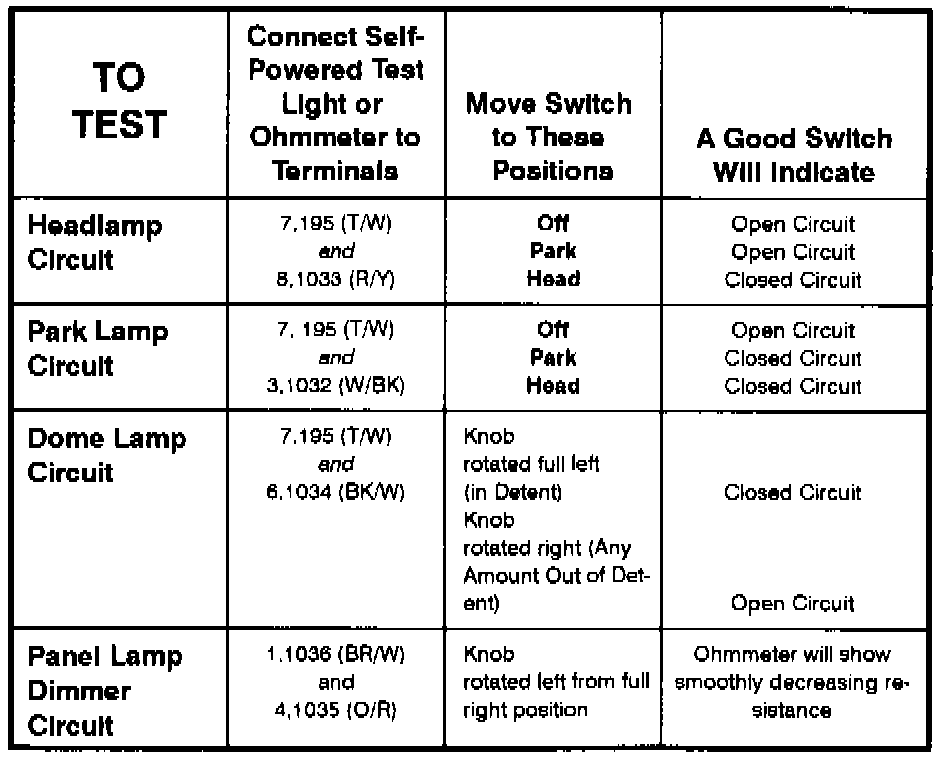

Main Light Switch - Component Testing Procedure (Part 1 Of 2):

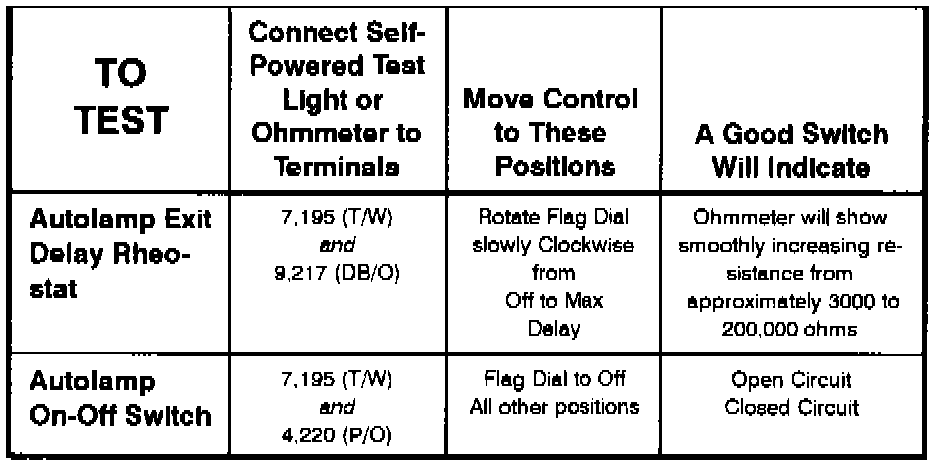

Main Light Switch - Component Testing Procedure (Part 2 Of 2):

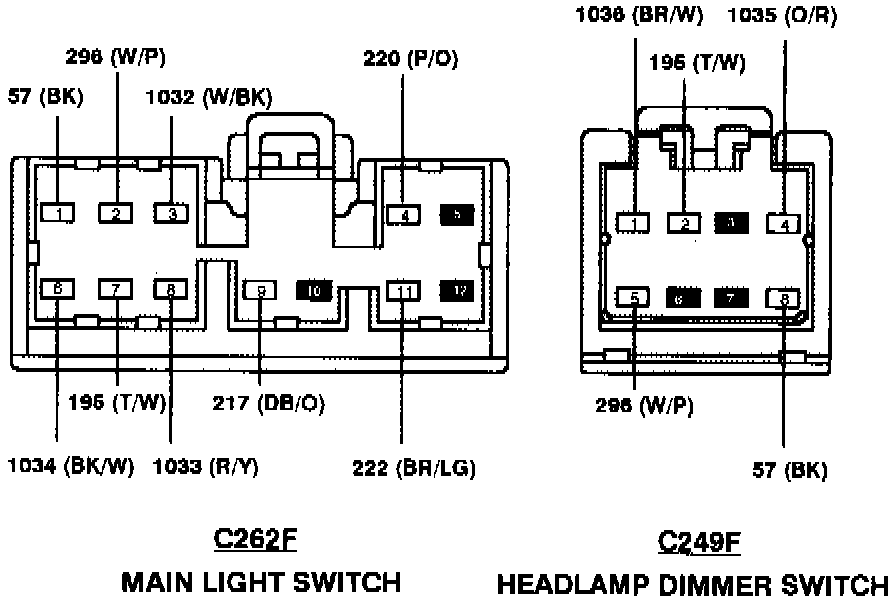

Main Light Switch - Terminal Locations:

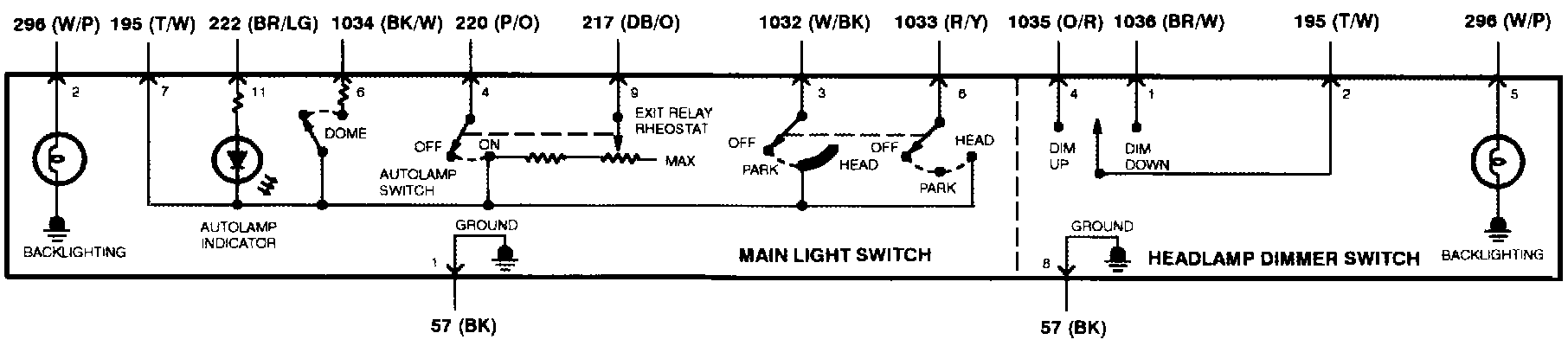

Main Light Switch - Schematic:
