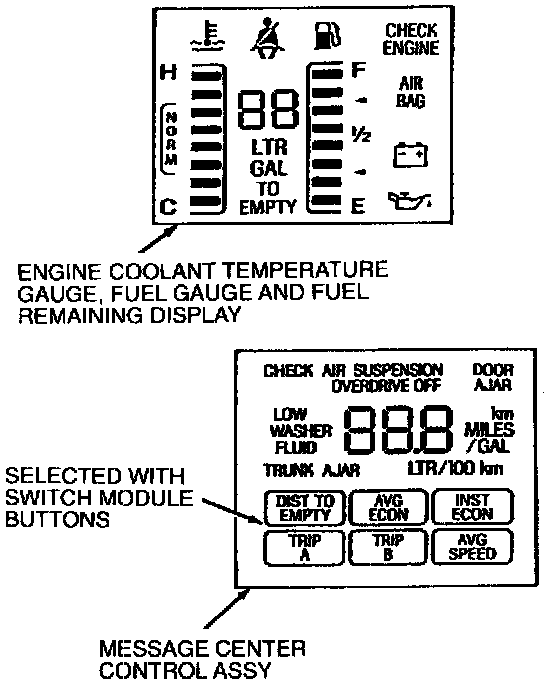

With Electronic Instrument Cluster

The fuel gauge operates in the following manner:
- Fuel level is displayed on a digital bar gauge using 8 bars top to bottom.
- Fuel remaining is displayed in the fuel/temperature gauge.
- For fuel levels greater than 70 liters (18 gal), the letter F (full) is displayed.
- For fuel levels less than 3 liters (1 gal), the letter E (empty) is displayed.
- Liter or gallon values are selected by the English/Metric (E/M) button, in the message center switch module, located immediately to the right of the instrument cluster.
- The digital displays are based on a varying current flow from the fuel level sensor.

The fuel pump symbol is always on except during:
- Prove out sequence-on/off/on.
- Low fuel level warning-the gas pump symbol flashes when approximately one-eighth of a tank of fuel remains.
