Home
>>
Mercury
>>
1997
>>
Grand Marquis V8-4.6L CNG SOHC VIN 9
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Relays and Modules - Powertrain Management
>>
Relays and Modules - Computers and Control Systems
>>
Fuel Injector Driver Module (CNG)
>>
Diagrams
Fuel Injector Driver Module (CNG): Diagrams

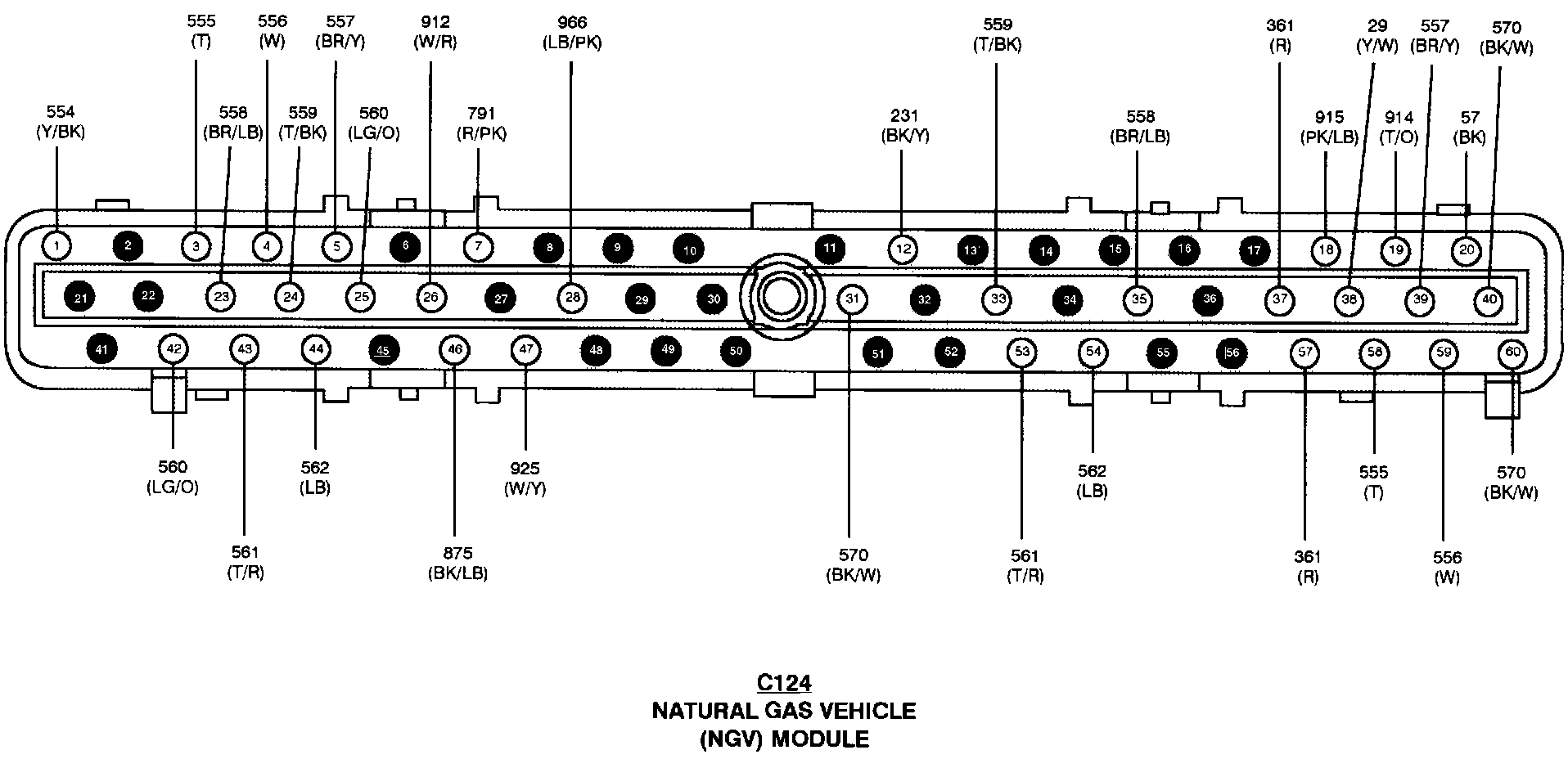

Natural Gas Vehicle Module (Part 1 Of 2):

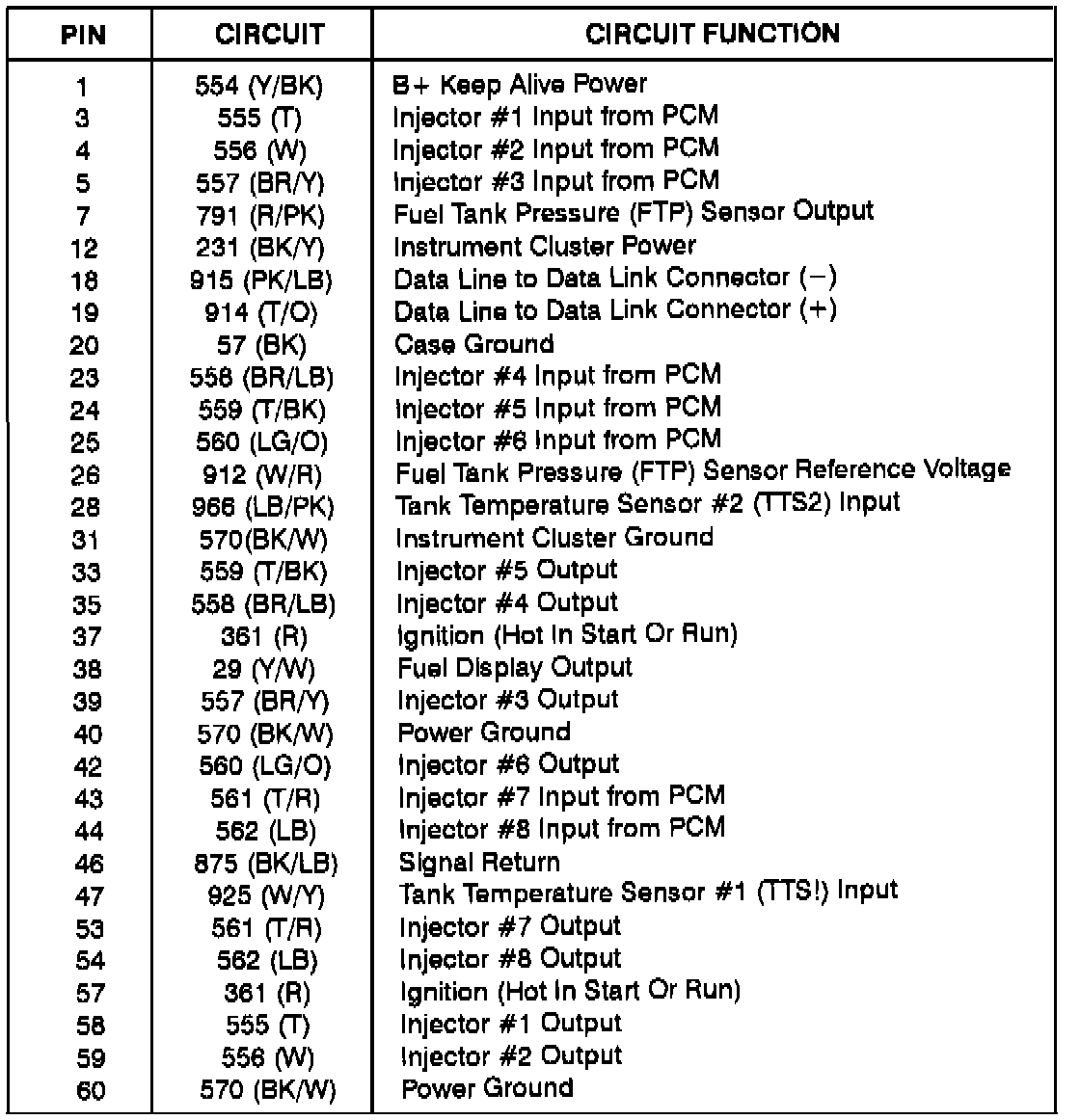

Natural Gas Vehicle Module (Part 2 Of 2):
