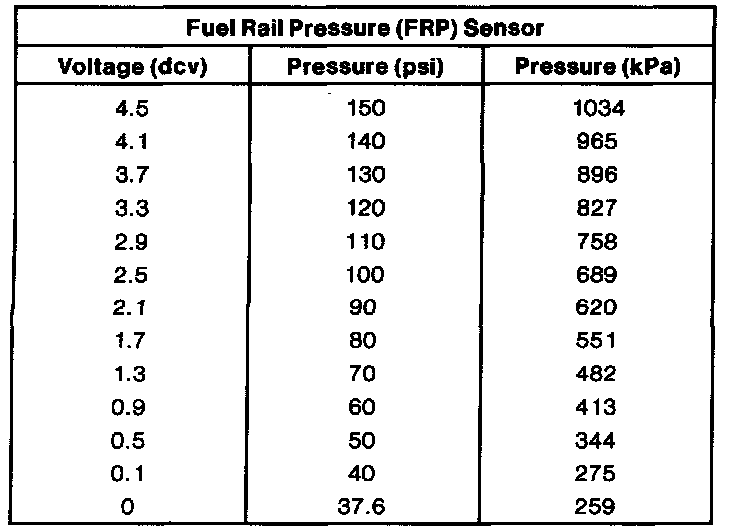

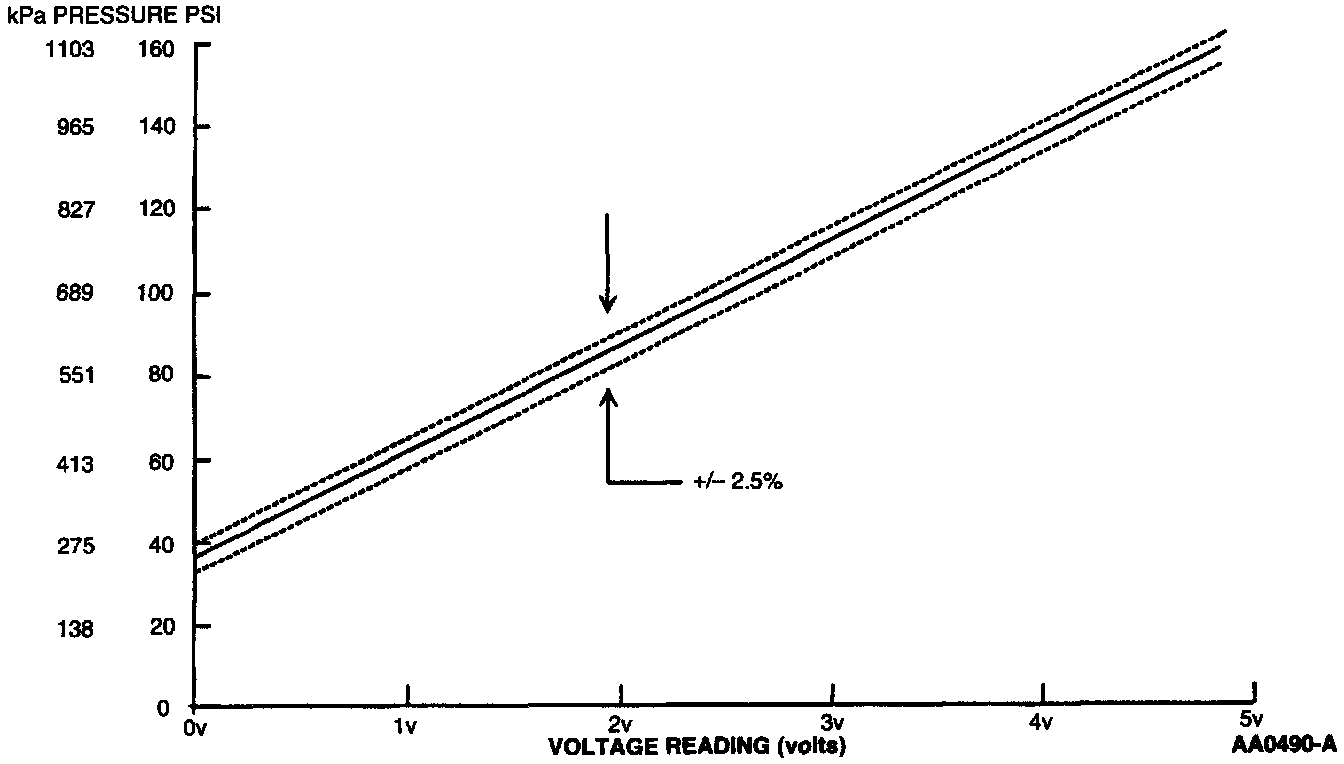

Tables and Graphs

NOTE:
- Normal operating range is from 0 to 100 kPa (0 to 150 psi) and values can vary by ± 2.5%. The Fuel Rail Pressure (FRP) sensor operates within the range of -40°C to 125°C (-40°F to 257°F).
- Voltage values were calculated for VREF = 5.0 volts. These values may vary 15 percent due to sensor and VREF variations.
