DB - Engine Fuel Temperature (EFT) Sensor
>>

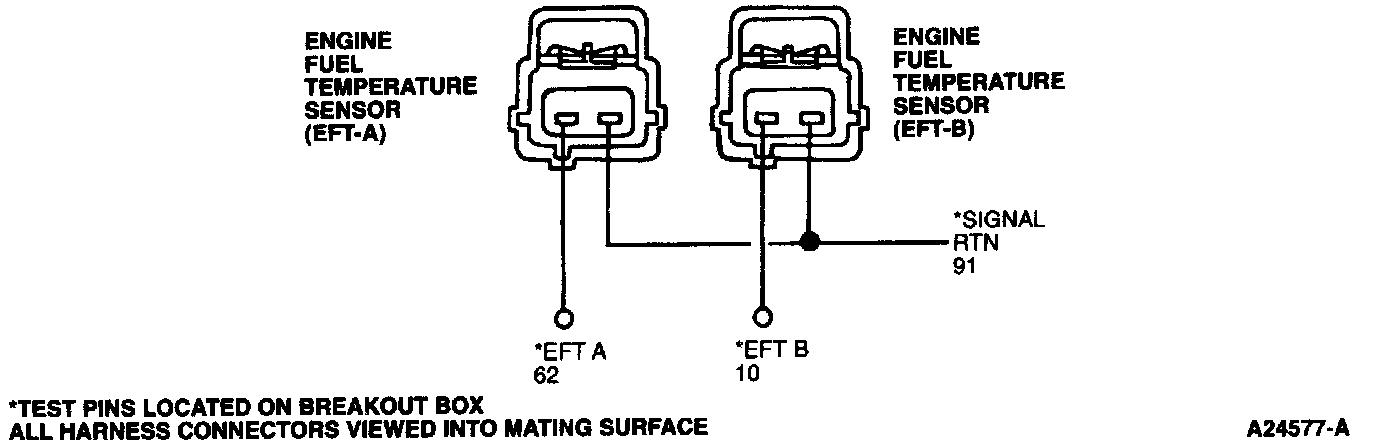

Pinpoint Test Schematics
Pinpoint Test Schematics

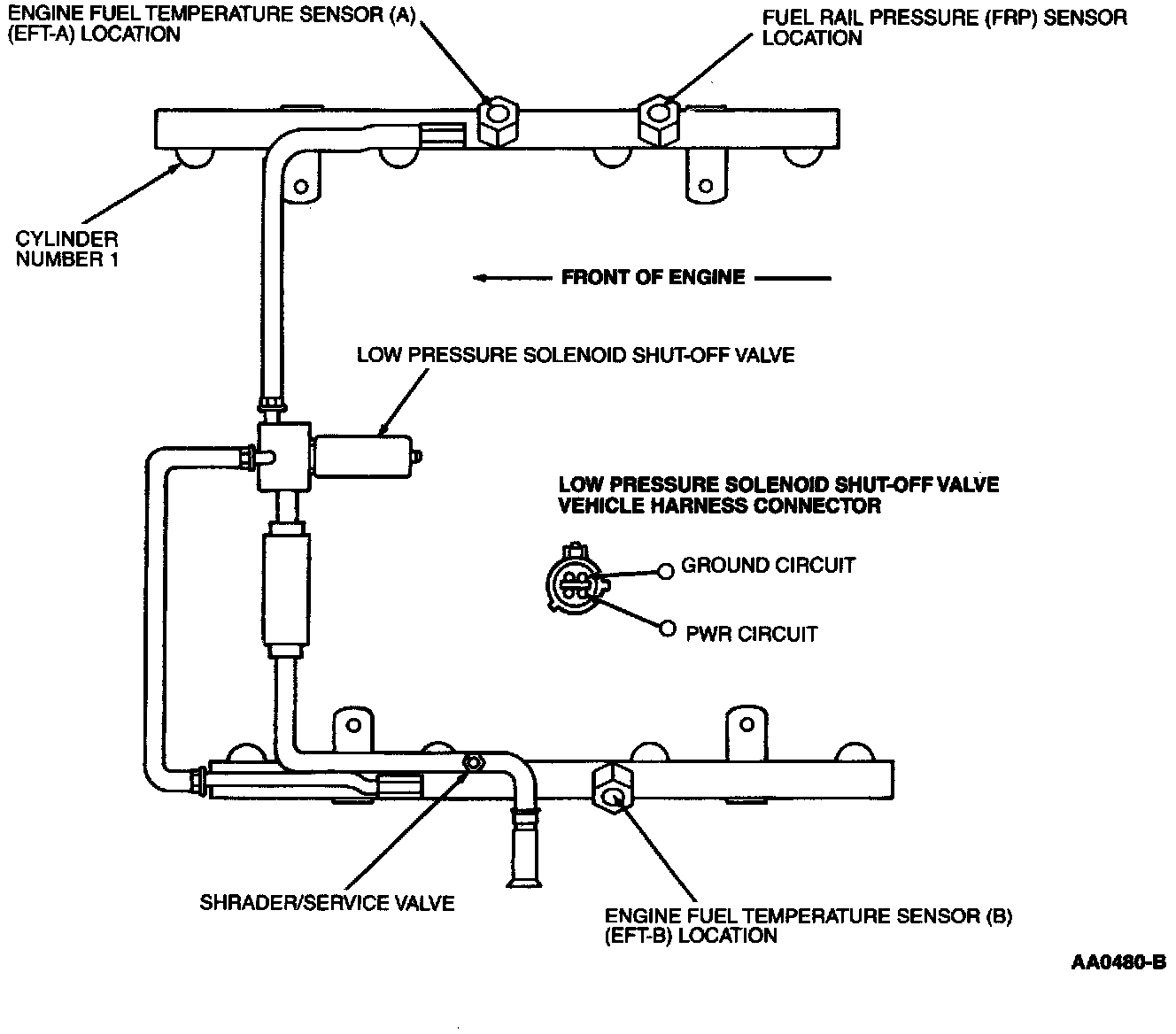

Component Locations:

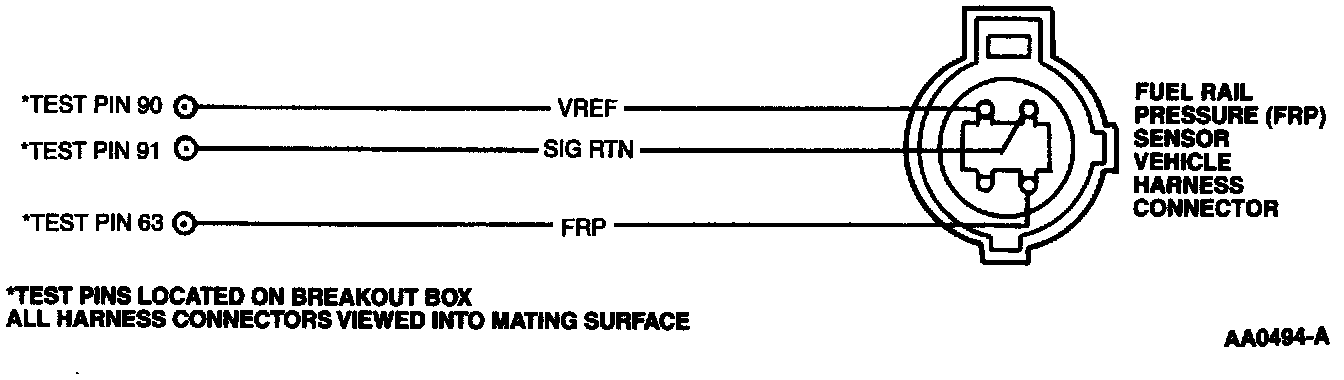

Connector View:
Connector View:
