Door Glass Run Retainer

REMOVAL

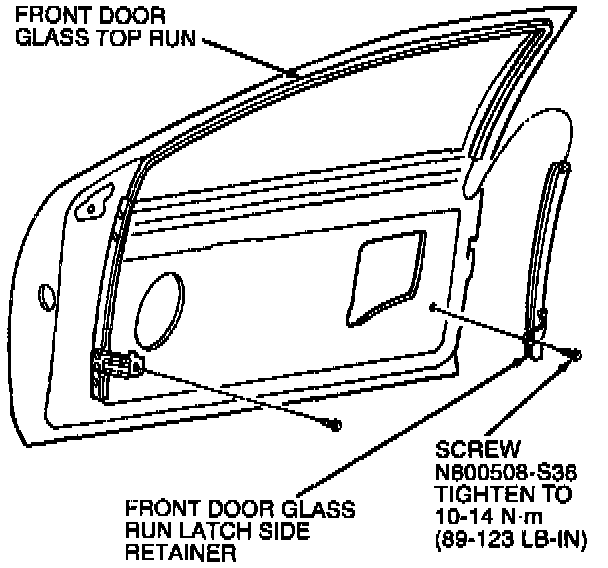

1. Remove the front door trim panel finish panel and watershield.
2. With the front door window glass in the full-up position, remove the rear door glass run from the front door glass run front retainer.
3. Remove the two nuts and washers retaining the front door glass run front retainer to the inner door panel.
4. Disengage the front door glass run front retainer from the lower leg of the door frame and remove the front door glass run front retainer. Use care during retainer removal to prevent pinching the front door glass hinge side run.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten nuts to 10-14 Nm (89-123 Lb-In).
