D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

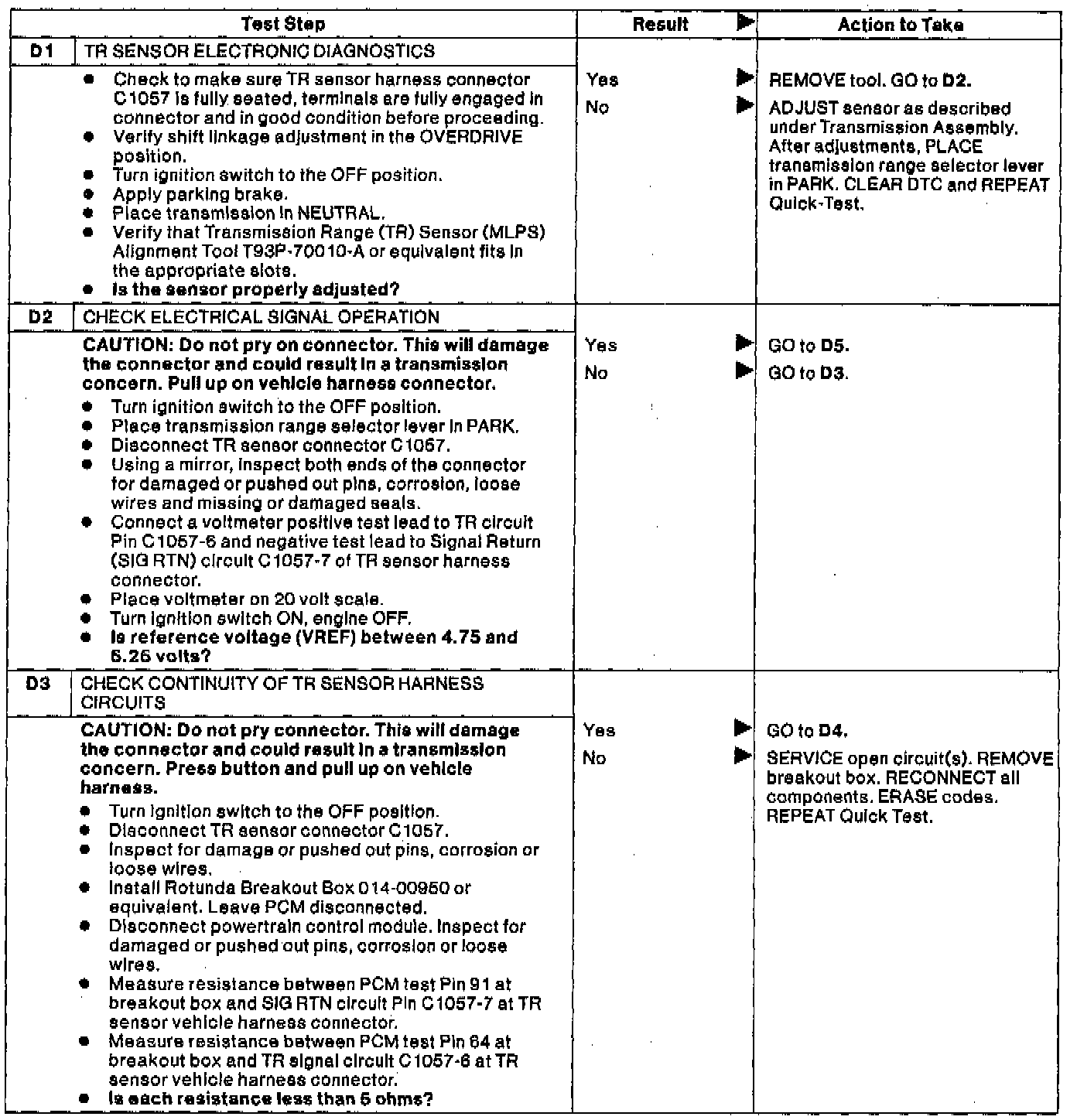

Part 1 Of 3:

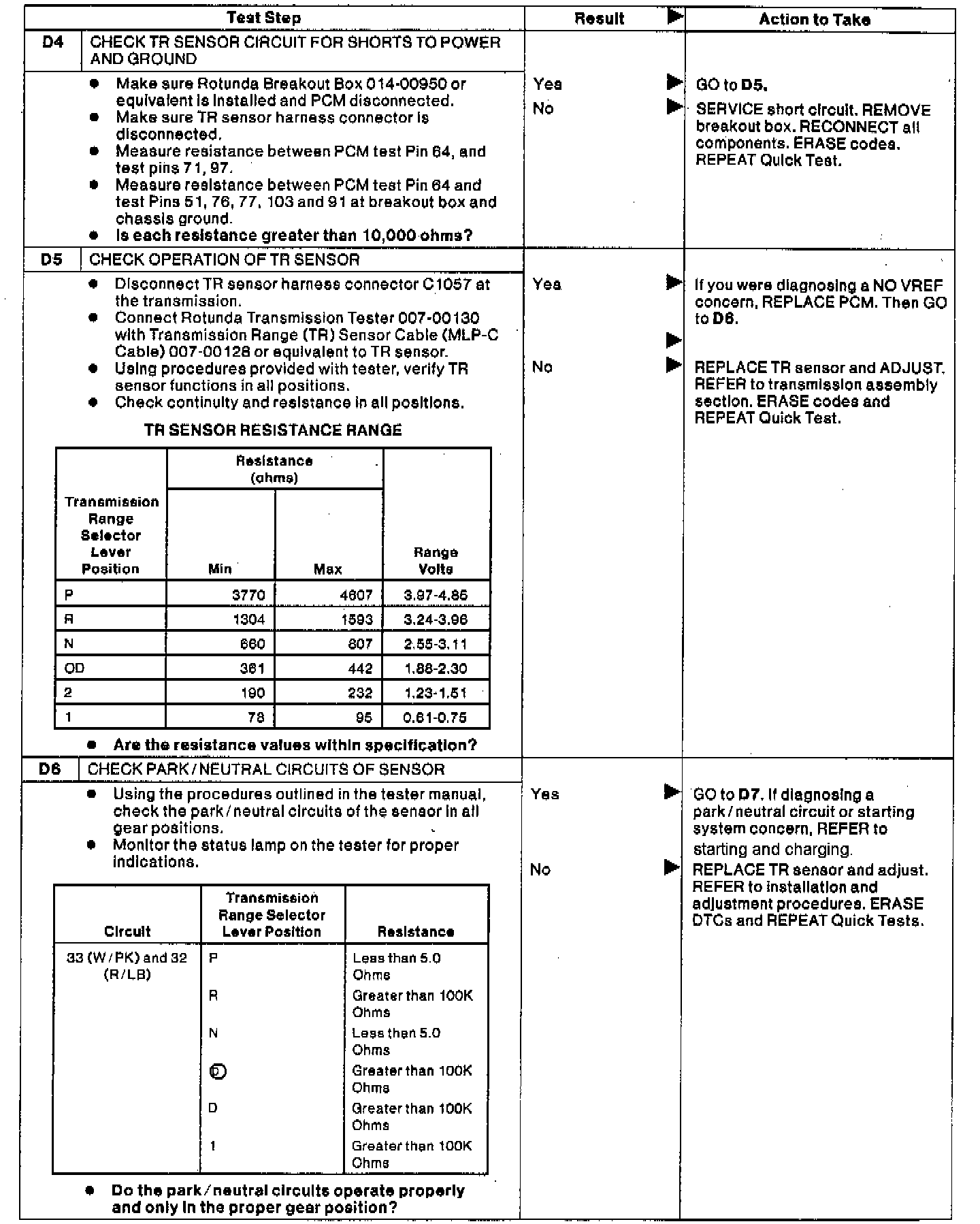

Part 2 Of 3:

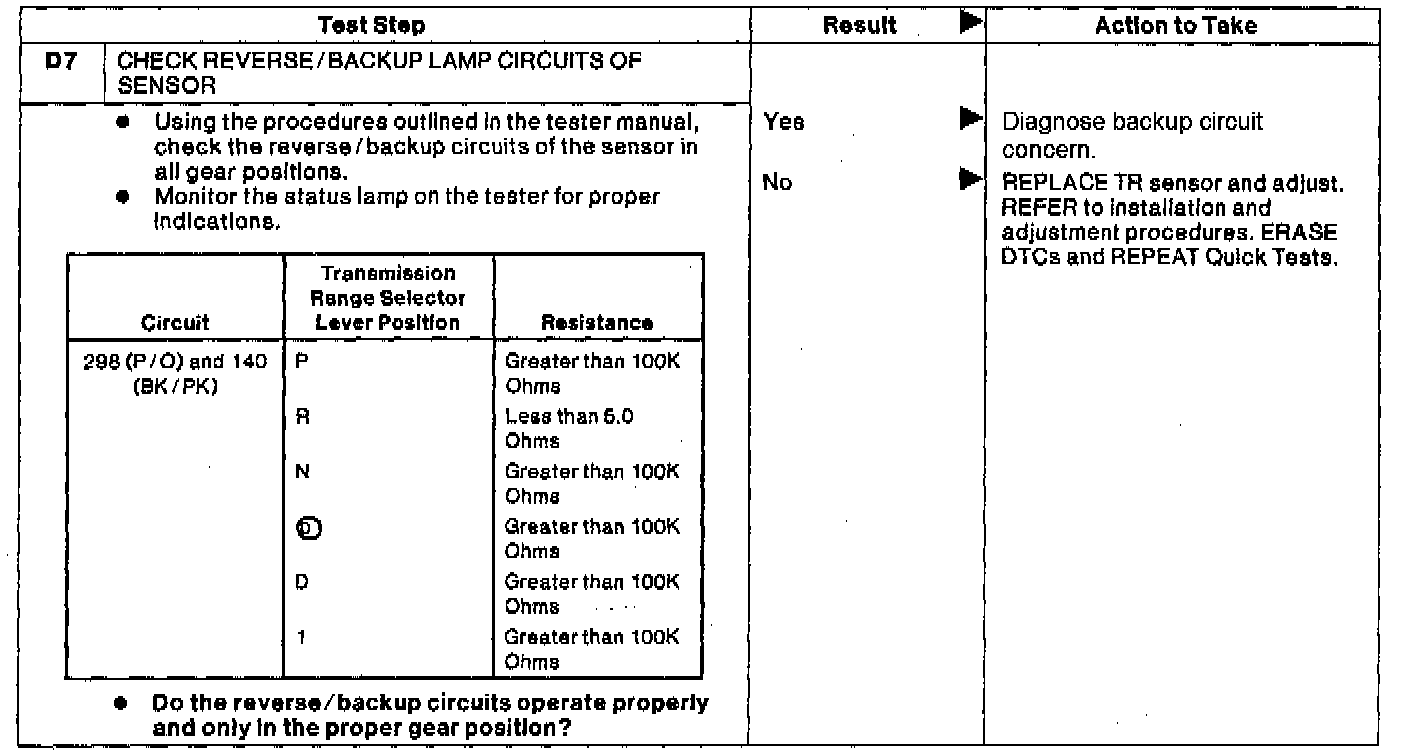

Part 3 Of 3:
