Disassembly

1. Remove retaining bolt and shift solenoid bracket.





2. Remove shift solenoid assembly and Torque Converter Clutch (TCC) solenoid by pulling straight up.

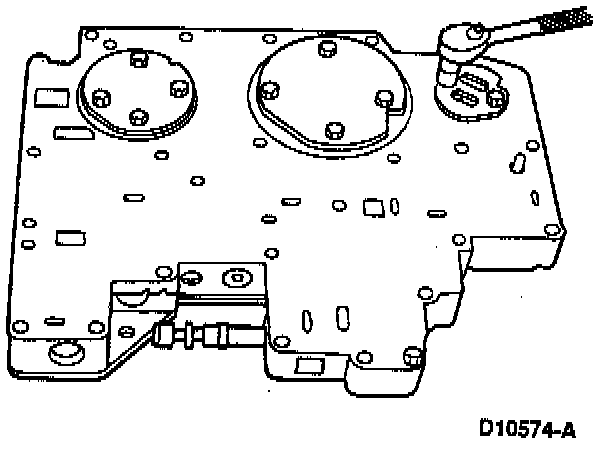

3. Turn main control valve body over and remove 10 bolts retaining reinforcement and separator plates.

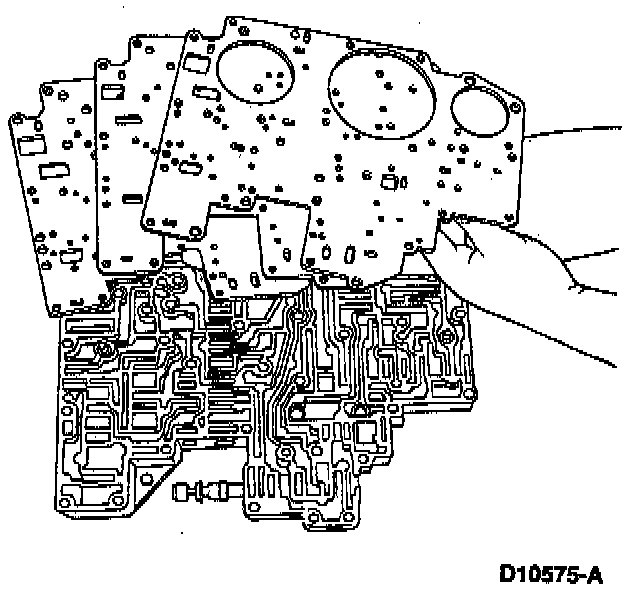

4. Remove separator plate and gaskets. Discard gaskets.

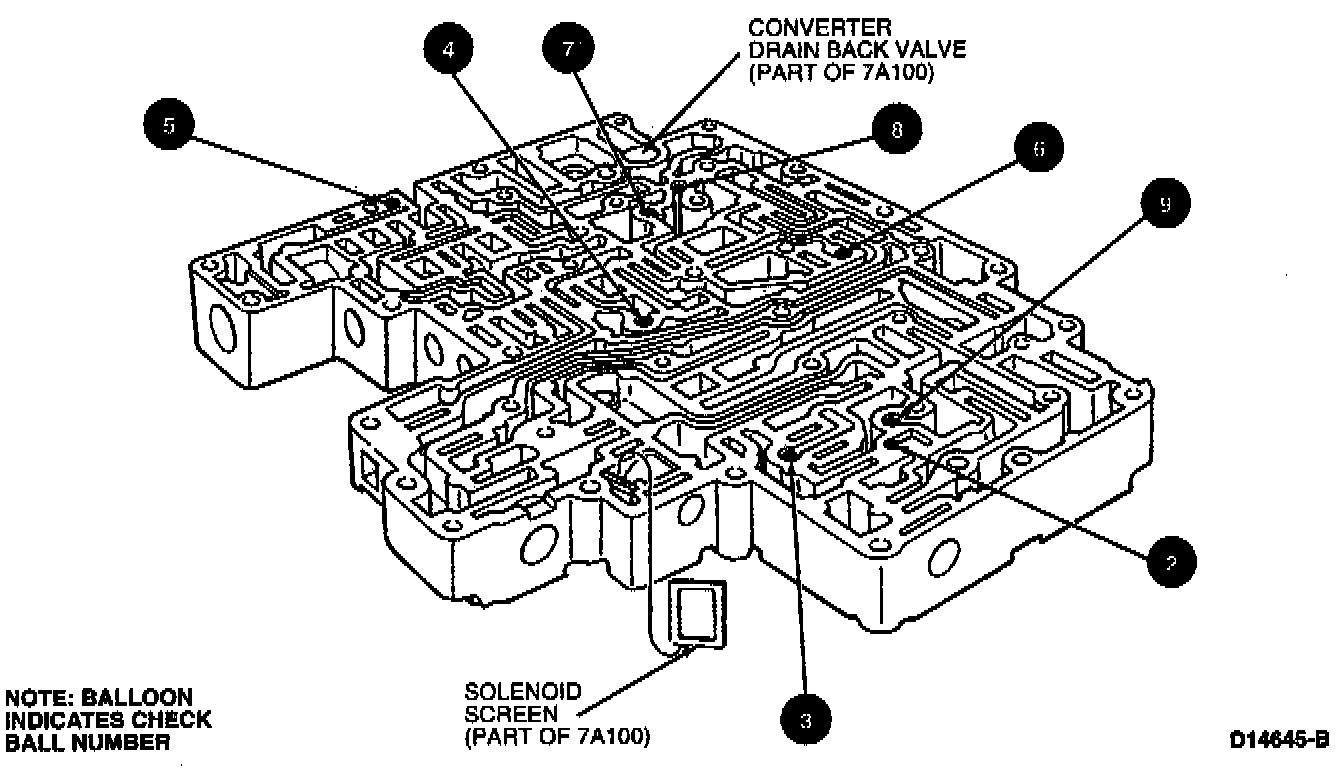

5. Note location and remove check balls. Remove solenoid screen.
6. Remove converter drain back valve.

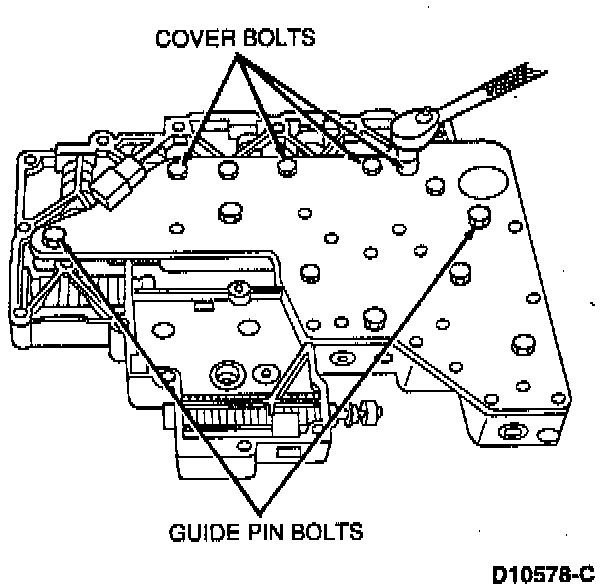

7. Remove eleven valve body cover plate bolts and two guide pin bolts.

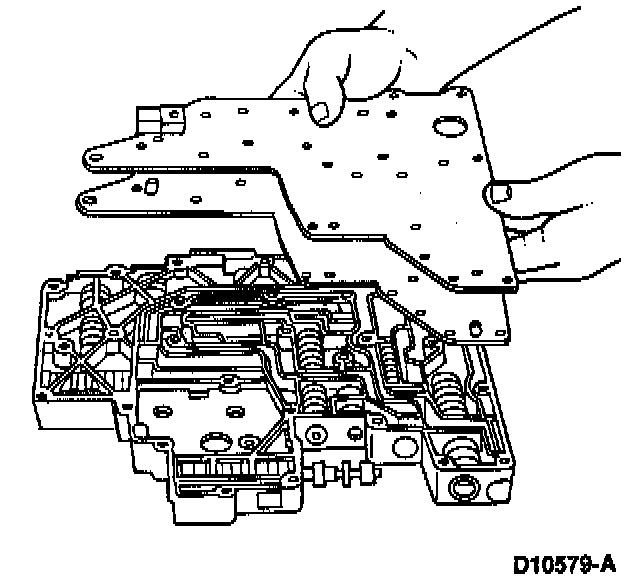

8. Remove main control cover.
