Assembly

1. Install main control cover.





2. Install two guide pin bolts and eleven valve body cover retaining bolts. Tighten guide pin bolts to 9-11 Nm (80-97 in. lbs.) and valve body cover retaining bolts to 9-11 Nm (80-97 in. lbs.) in sequence shown.





3. Install coasting booster valve shuttle balls, converter drain back valve and solenoid screen.
4. Install separator plate and new gaskets.





5. Install reinforcement plates. Tighten retaining bolts to 9-11 Nm (80-97 in. lbs.) in sequence shown.

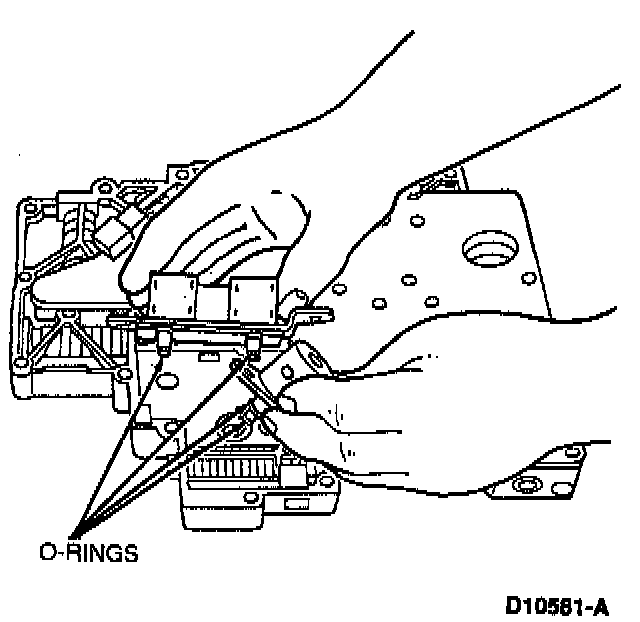

6. Inspect O-rings on solenoids for damage. Install shift solenoid assembly and torque converter clutch solenoid.

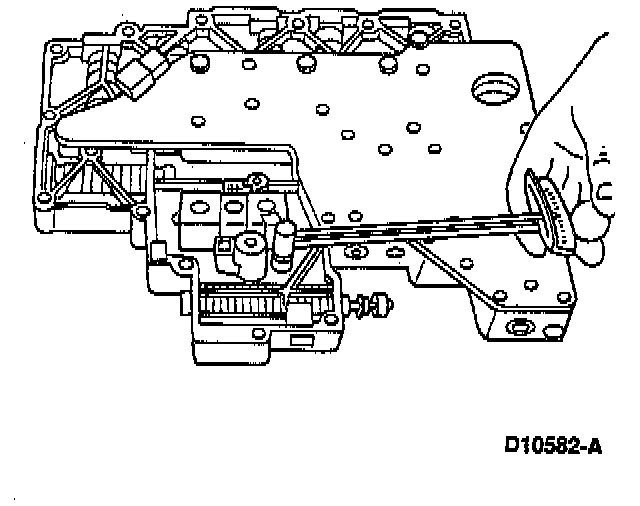

7. Install bracket and retaining bolt. Tighten to 9-11 Nm (80-97 in. lbs.).
