One-Way Clutch Check

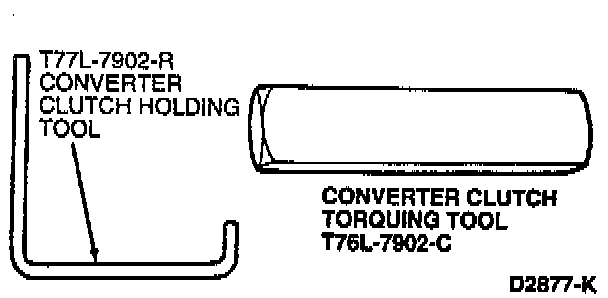

1. Insert the Converter Clutch Holding Tool T77L-7902-R in one of the grooves in the stator thrust washer.

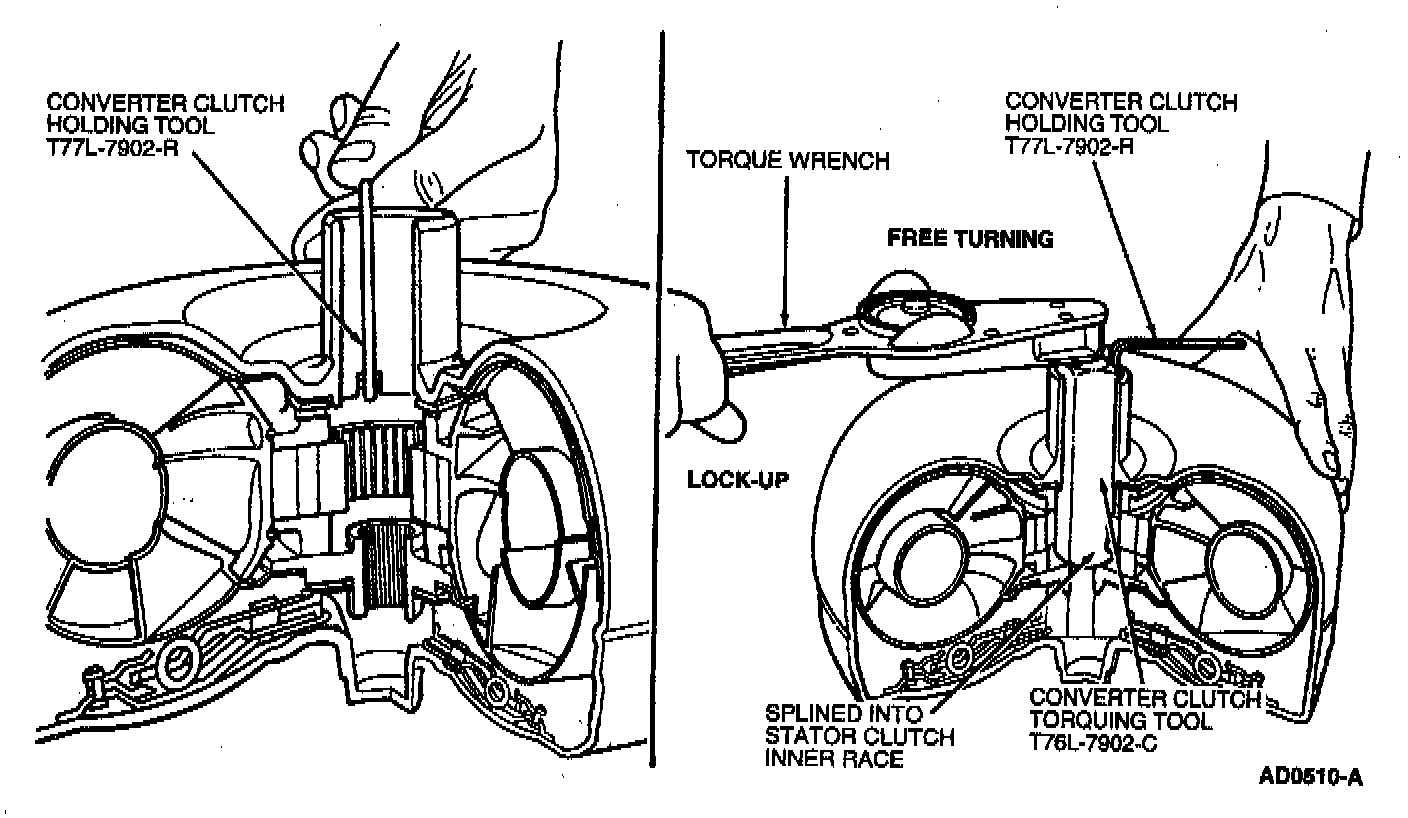

2. Insert the Converter Clutch Torquing Tool T76L-7902-C in converter pump drive hub to engage one-way clutch inner race.





3. Attach a torque wrench to the converter clutch torquing tool. With the converter clutch holding tool held stationary, turn the torque wrench counterclockwise. The torque converter one-way clutch should lock up and hold a 13 Nm (10 ft. lbs.) force. The torque converter one-way clutch should rotate freely in a clockwise direction until torquing tool contacts the holding tool. Try the clutch for lock up and hold in at least five different locations around the torque converter.
4. If the clutch fails to lock up and hold a 13 Nm (10 ft. lbs.) torque, replace the torque converter.
