Home >> Mercury >> 1997 >> Cougar/XR7 V8-4.6L VIN W >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Shift Concerns >> Routine 223/323 - 4-3 Shift (Automatic)

Routine 223/323 - 4-3 Shift (Automatic)

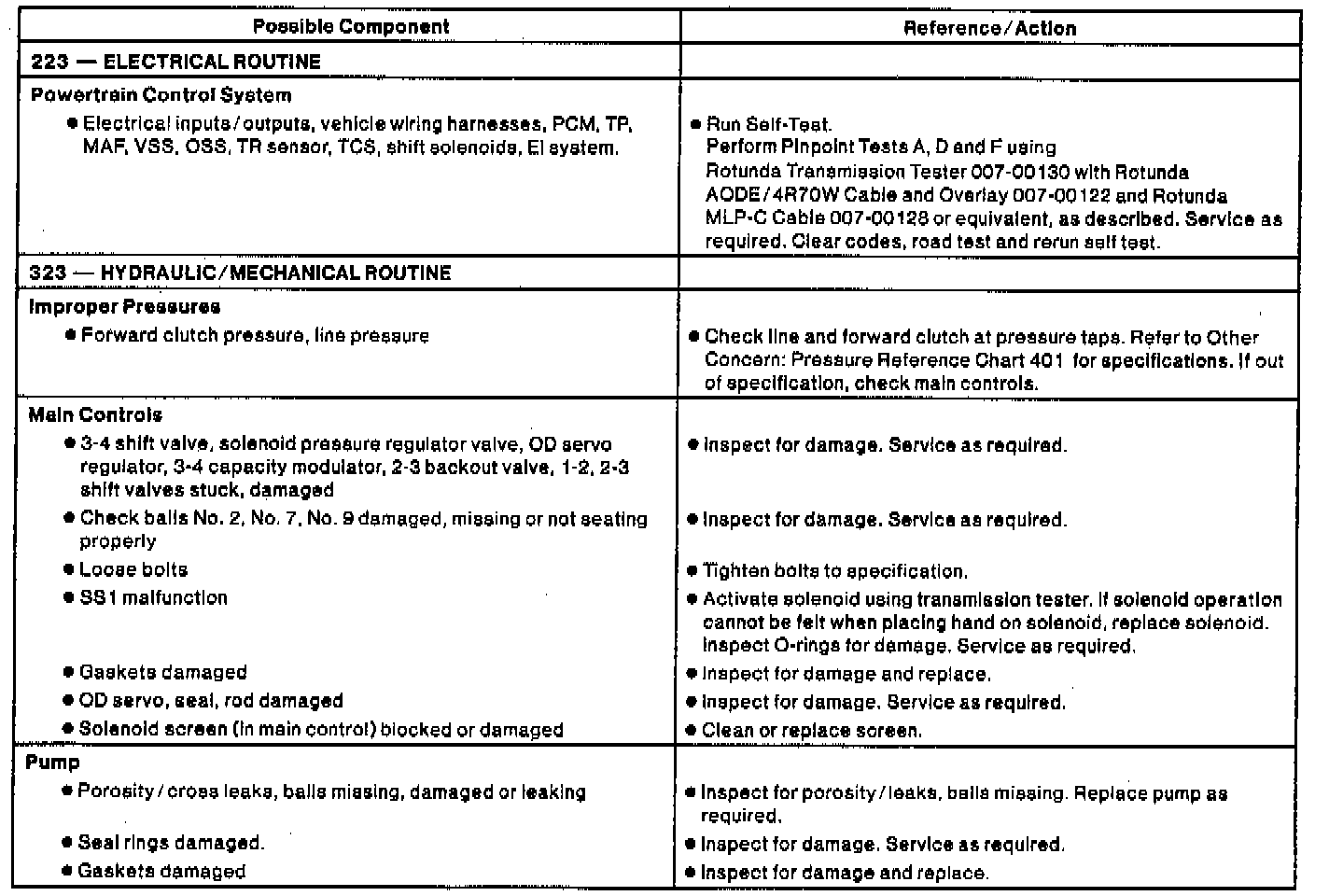

Part (1 Of 2):

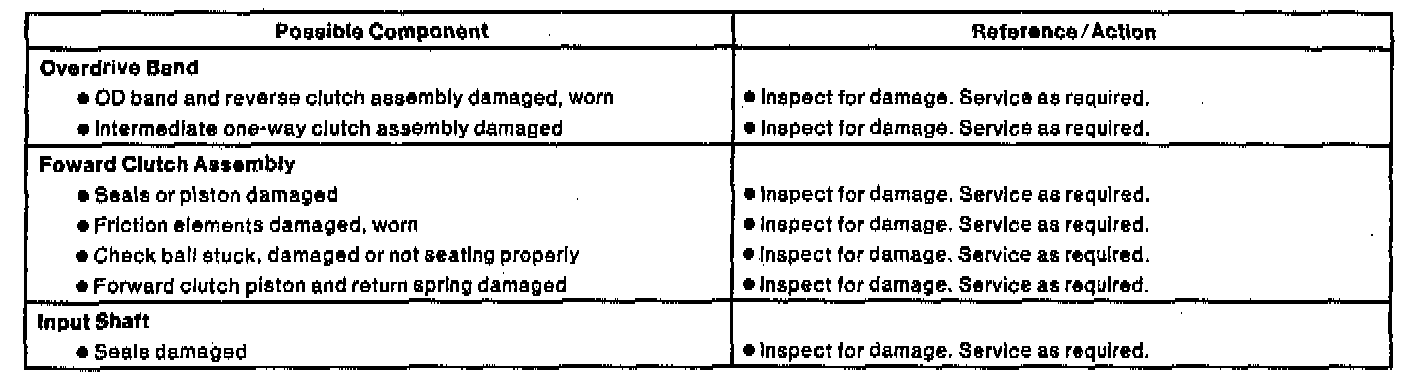

Part (2 Of 2):
